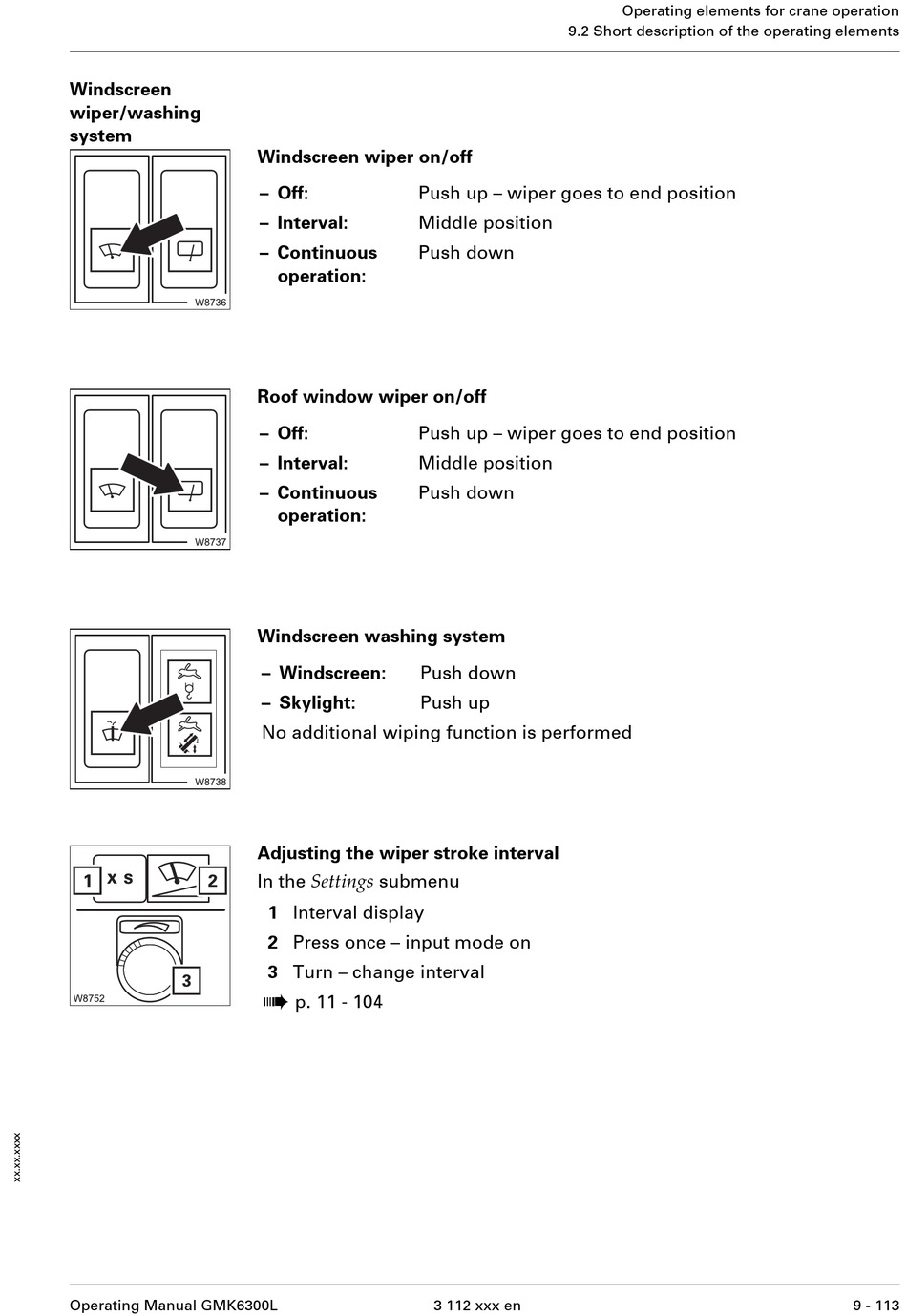

Manitowoc Grove GMK6300L Operating Manual page 577

Windscreen
wiper/washing
system
Operating Manual GMK6300L
Windscreen wiper on/off
– Off: Push up – wiper goes to end position
– Interval: Middle position
– Continuous Push down
operation:
Roof window wiper on/off
– Off: Push up – wiper goes to end position
– Interval: Middle position
– Continuous Push down
operation:
Windscreen washing system
– Windscreen: Push down
– Skylight: Push up
No additional wiping function is performed
Adjusting the wiper stroke interval
In the Settings submenu
1 Interval display
2 Press once – input mode on
3 Turn – change interval
à
p. 11 - 104
9.2 Short description of the operating elements
3 112 xxx en
Operating elements for crane operation
9 - 113
