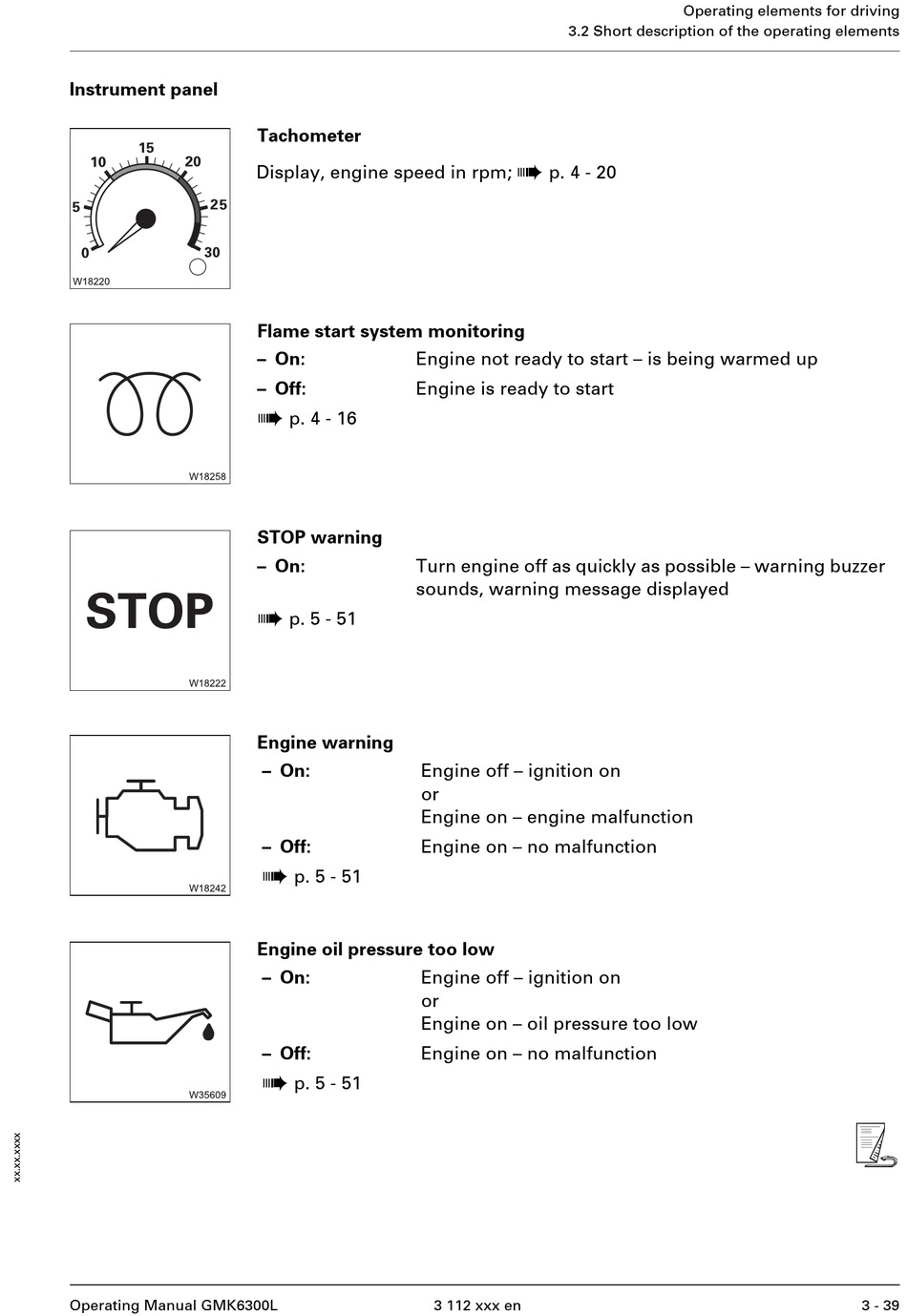

Instrument panel
Operating Manual GMK6300L
Tachometer
Display, engine speed in rpm;
Flame start system monitoring
– On: Engine not ready to start – is being warmed up
– Off: Engine is ready to start
à
p. 4 - 16
STOP warning
– On: Turn engine off as quickly as possible – warning buzzer
sounds, warning message displayed
à
p. 5 - 51
Engine warning
– On: Engine off – ignition on
or
Engine on – engine malfunction
– Off: Engine on – no malfunction
à
p. 5 - 51
Engine oil pressure too low
– On: Engine off – ignition on
or
Engine on – oil pressure too low
– Off: Engine on – no malfunction
à
p. 5 - 51
3.2 Short description of the operating elements
à
p. 4 - 20
3 112 xxx en
Operating elements for driving
s
3 - 39
