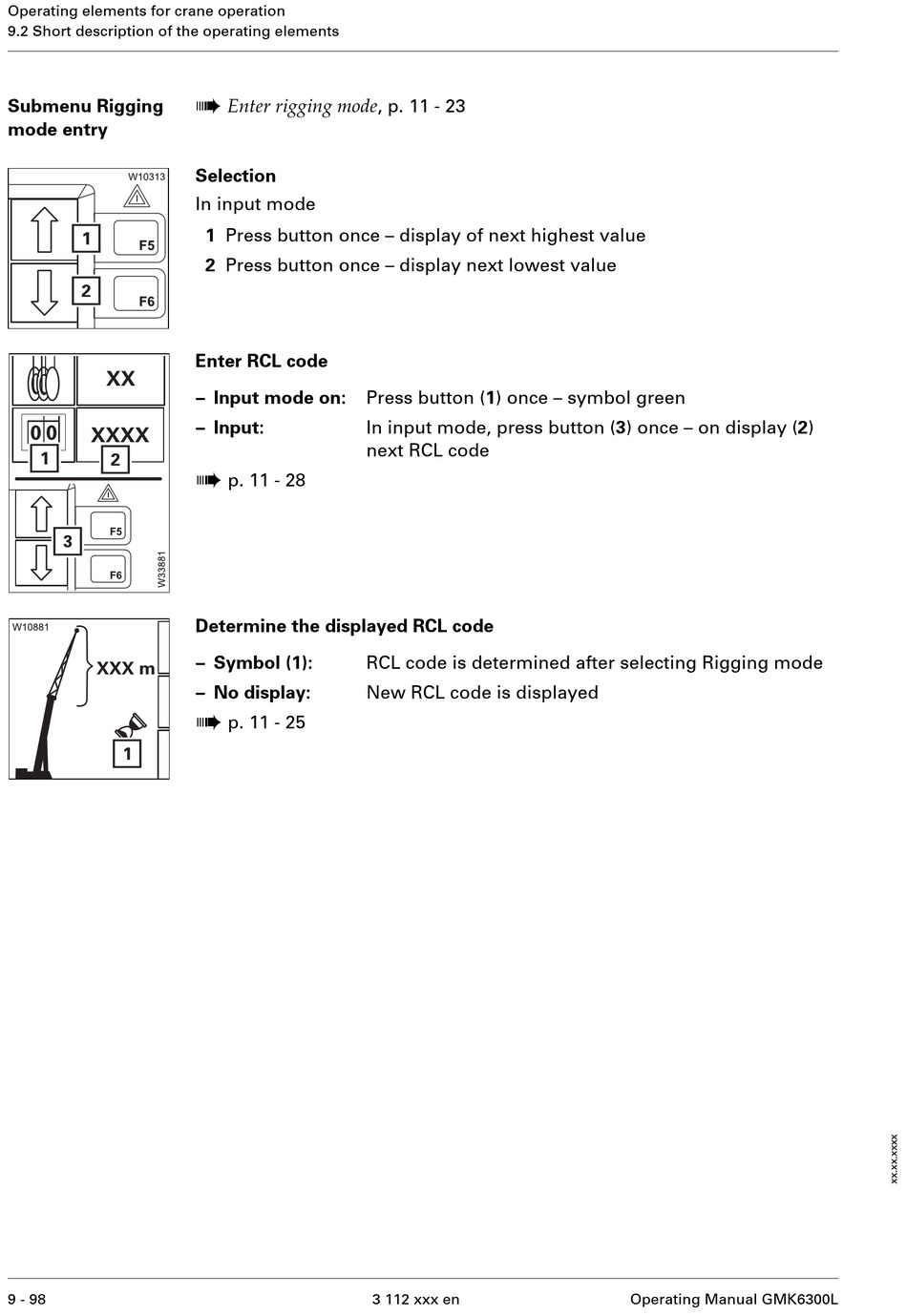

Manitowoc Grove GMK6300L Operating Manual page 562

Operating elements for crane operation
9.2 Short description of the operating elements
Submenu Rigging
mode entry
9 - 98
à
Enter rigging mode , p. 11 - 23
Selection
In input mode
1 Press button once – display of next highest value
2 Press button once – display next lowest value
Enter RCL code
– Input mode on: Press button (1) once – symbol green
– Input: In input mode, press button (3) once – on display (2)
next RCL code
à
p. 11 - 28
Determine the displayed RCL code
– Symbol (1): RCL code is determined after selecting Rigging mode
– No display: New RCL code is displayed
à
p. 11 - 25
3 112 xxx en Operating Manual GMK6300L
