Driving modes
6.5 Installing/removing outrigger beams
Screwing in
6 - 58
Before you retract/extend an outrigger beam after mounting, you must
screw in the spacers.

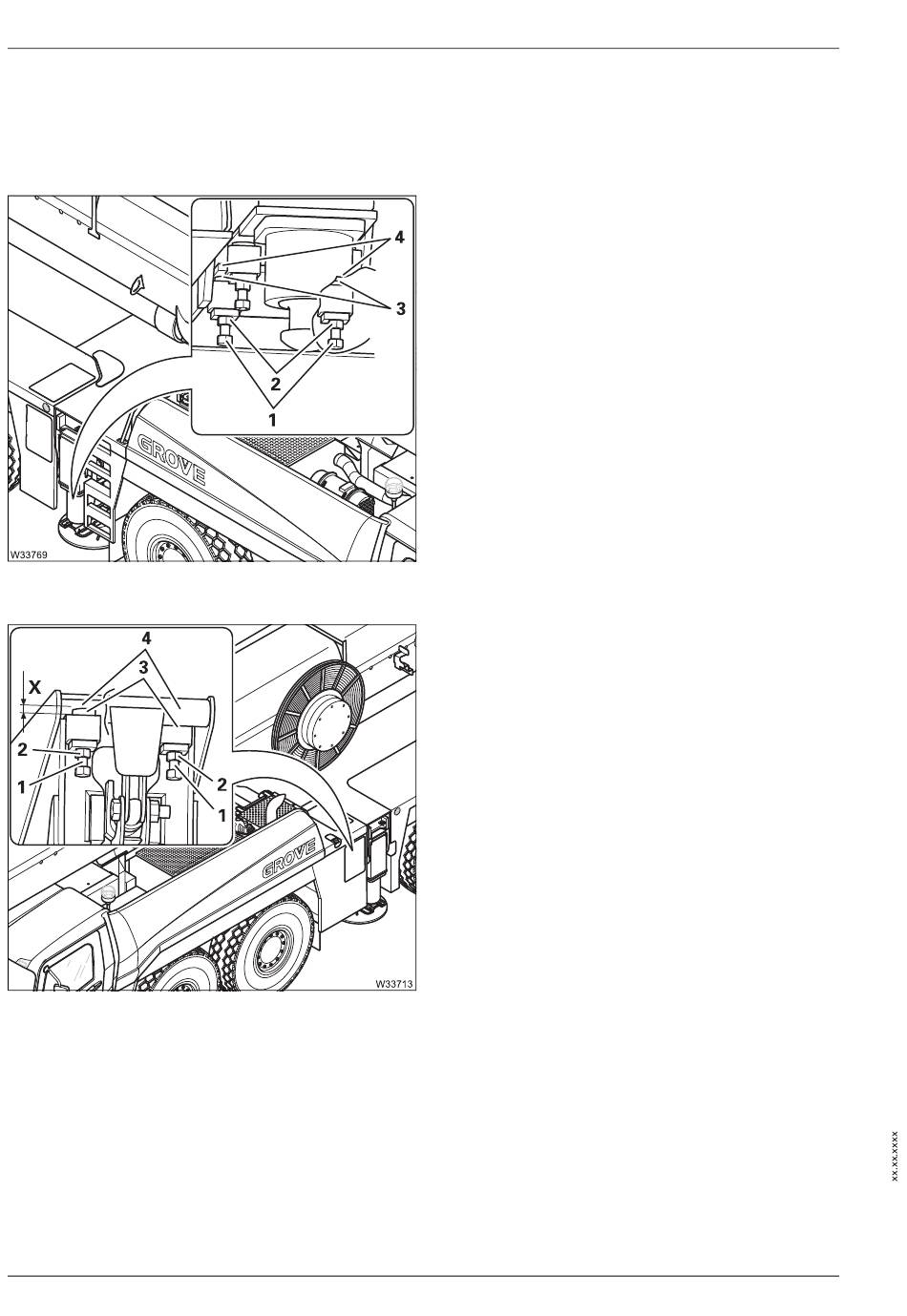

At the supporting box
•
Screw in the screws (1) as far as possible
until the spacers (3) are touching the outrig-
ger beam (4) at the top.
•
Ensure that the outrigger beam is aligned
horizontally.
•
Lock the screws in place with the nuts (2).
At the outrigger beam
•
Screw in the bolts (1),
– Until the spacers (3) lie on top on the
supporting box (4) and
– Until the distance (X) to the supporting
box (4) is an even 4 mm over the entire
width.
•
Lock the screws in place with the nuts (2).
