Crane operation
11.2 Operation of the rated capacity limiter
Entering
individual
components
G
11 - 24

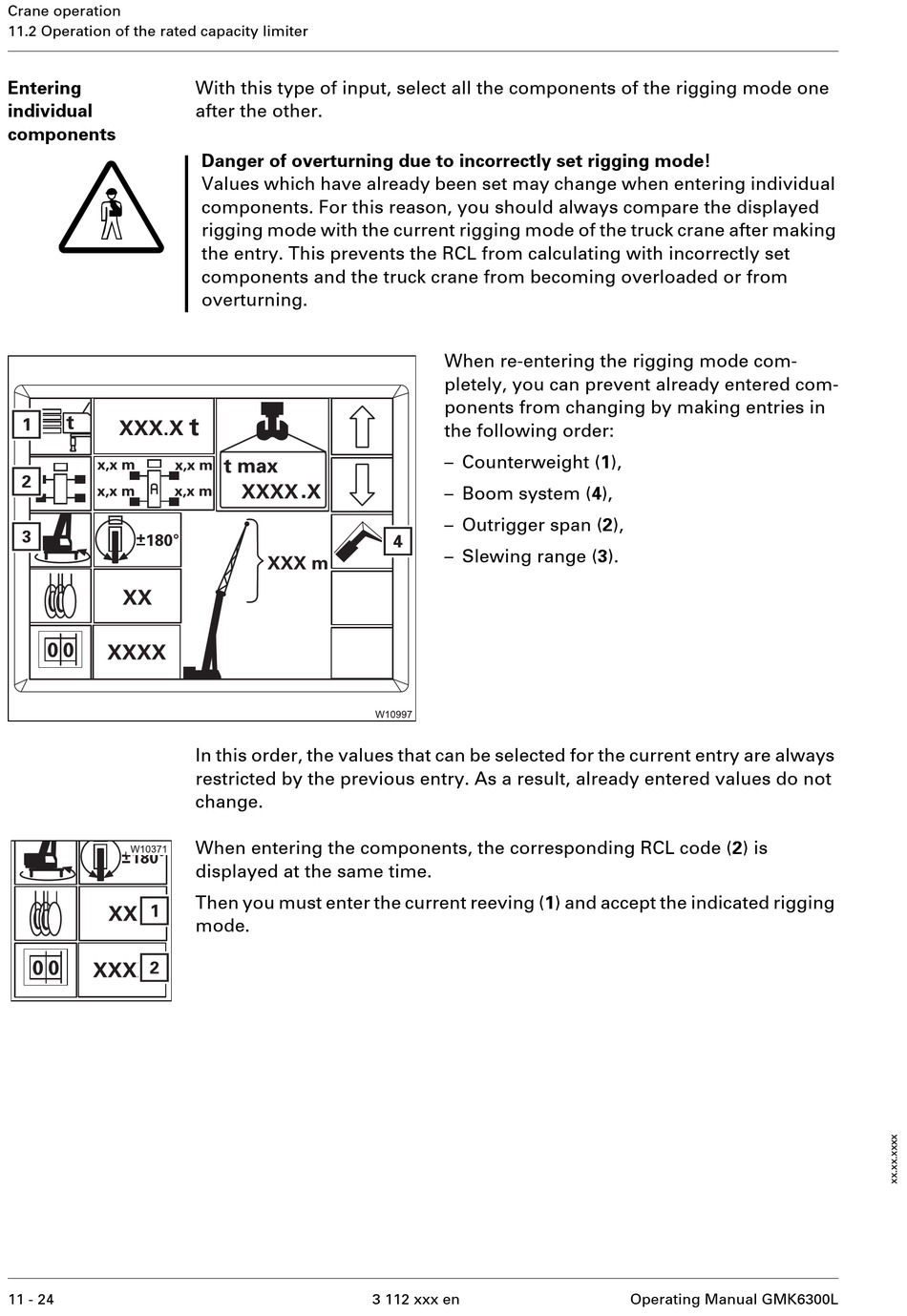

With this type of input, select all the components of the rigging mode one
after the other.
Danger of overturning due to incorrectly set rigging mode!
Values which have already been set may change when entering individual
components. For this reason, you should always compare the displayed
rigging mode with the current rigging mode of the truck crane after making
the entry. This prevents the RCL from calculating with incorrectly set
components and the truck crane from becoming overloaded or from
overturning.
In this order, the values that can be selected for the current entry are always
restricted by the previous entry. As a result, already entered values do not
change.
When entering the components, the corresponding RCL code (2) is
displayed at the same time.
Then you must enter the current reeving (1) and accept the indicated rigging
mode.
When re-entering the rigging mode com-
pletely, you can prevent already entered com-
ponents from changing by making entries in
the following order:
– Counterweight (1),
– Boom system (4),
– Outrigger span (2),
– Slewing range (3).
3 112 xxx en Operating Manual GMK6300L
