Entering the
reeving
Accepting the
rigging mode
Operating Manual GMK6300L
Entering the reeving does not have an effect on any other component that
has already been entered.
Prior to crane operation, you must confirm and accept the newly entered
rigging mode.
Confirming the rigging mode
•
Press the button (2) once.
– If the rigging mode is permissible, lamp (1) will go out. The Rigging
mode monitoring submenu will open and you can accept the rigging
mode.
– If the rigging mode is not permissible, lamp (1) will light up. Press
button (2) once to display the error codes;

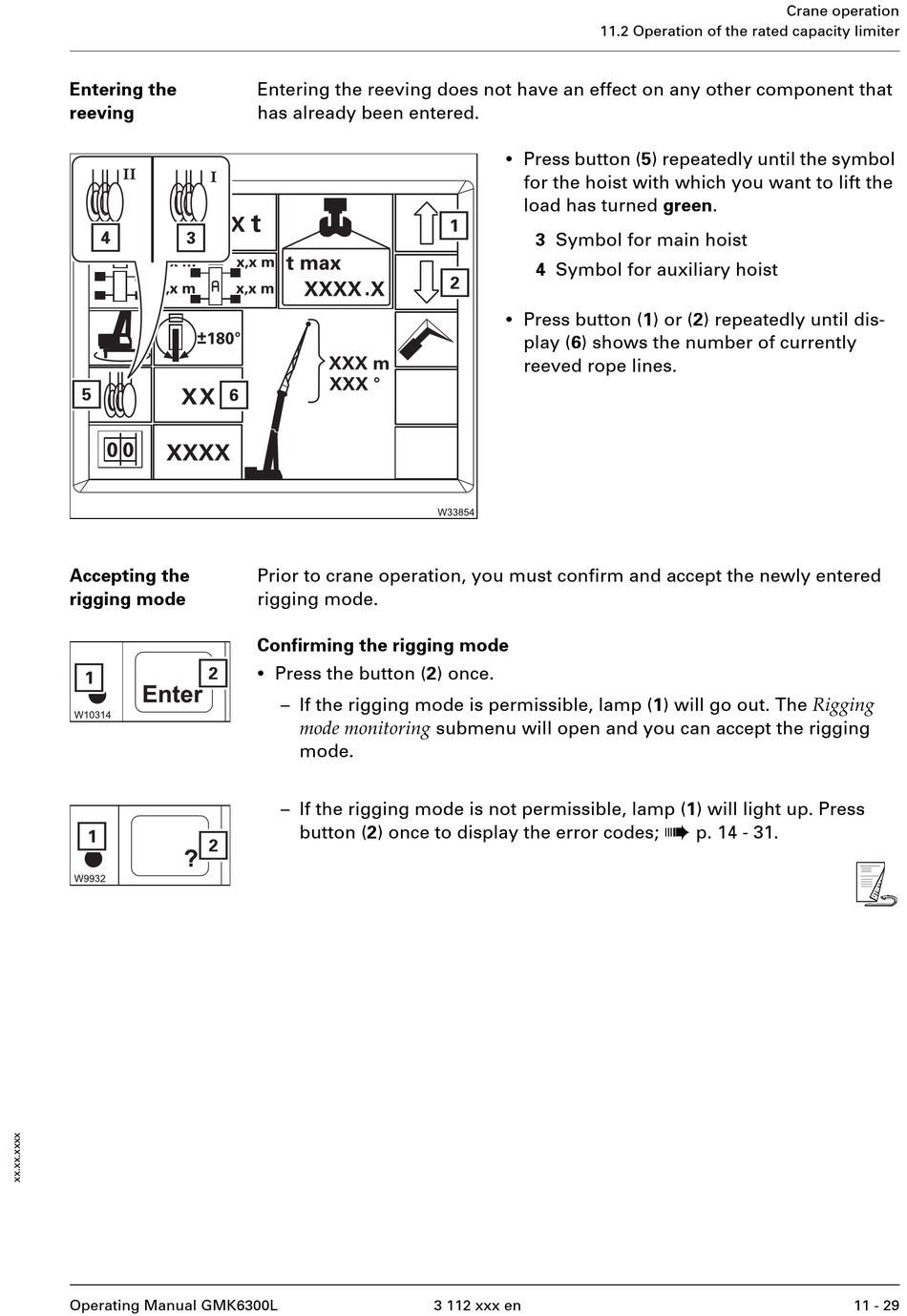

11.2 Operation of the rated capacity limiter
•
Press button (5) repeatedly until the symbol
for the hoist with which you want to lift the
load has turned green.
3 Symbol for main hoist
4 Symbol for auxiliary hoist
•
Press button (1) or (2) repeatedly until dis-
play (6) shows the number of currently
reeved rope lines.
3 112 xxx en
Crane operation
à
p. 14 - 31.
