5.1.3
Driver's seat
Operating Manual GMK6300L

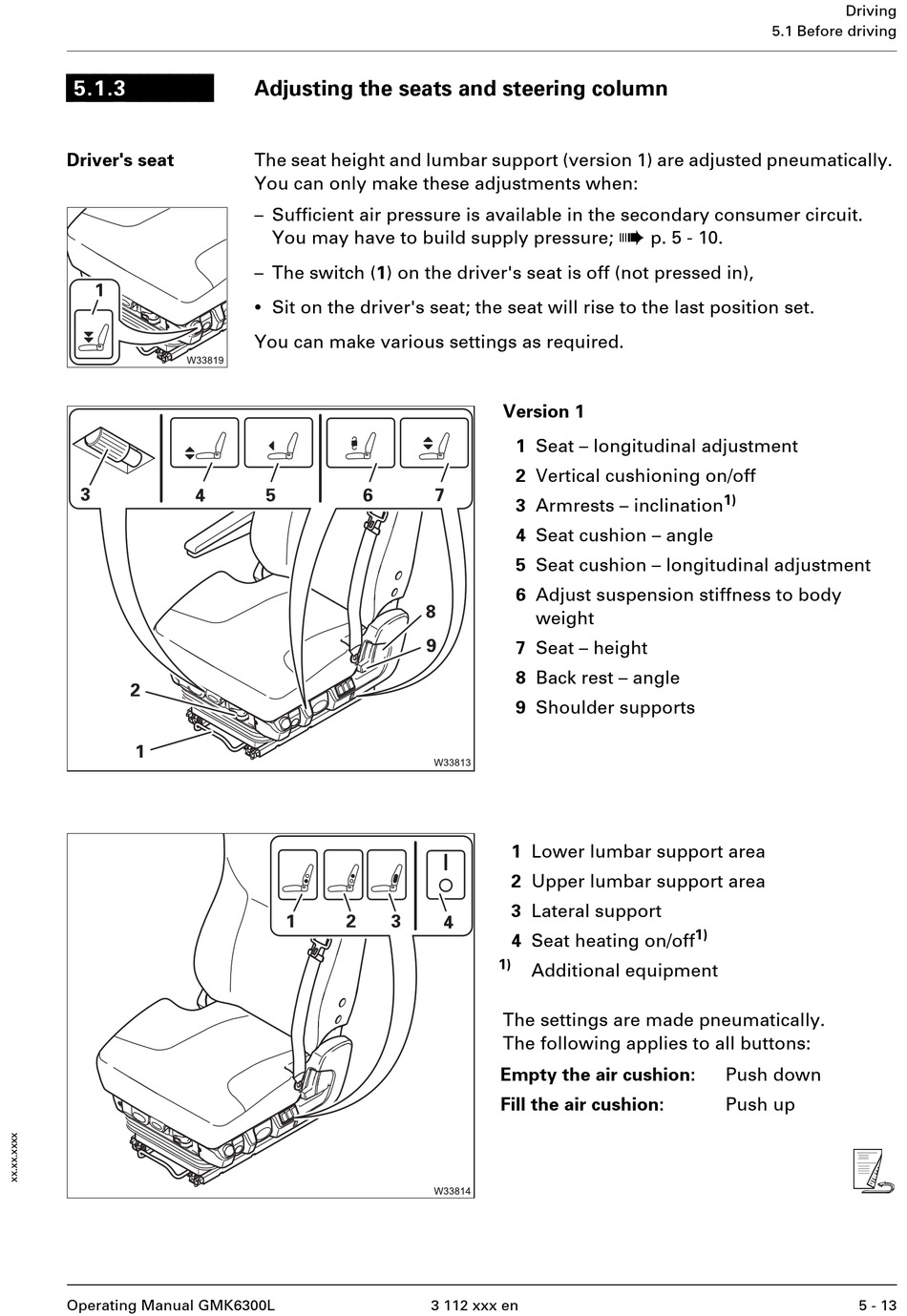

Adjusting the seats and steering column

The seat height and lumbar support (version 1) are adjusted pneumatically.
You can only make these adjustments when:
– Sufficient air pressure is available in the secondary consumer circuit.
You may have to build supply pressure;
– The switch (1) on the driver's seat is off (not pressed in),
•
Sit on the driver's seat; the seat will rise to the last position set.
You can make various settings as required.
Version 1
1 Seat – longitudinal adjustment
2 Vertical cushioning on/off
3 Armrests – inclination
4 Seat cushion – angle
5 Seat cushion – longitudinal adjustment
6 Adjust suspension stiffness to body
weight
7 Seat – height
8 Back rest – angle
9 Shoulder supports
1 Lower lumbar support area
2 Upper lumbar support area
3 Lateral support
4 Seat heating on/off
1)
Additional equipment
The settings are made pneumatically.
The following applies to all buttons:
Empty the air cushion:
Fill the air cushion:
3 112 xxx en
5.1 Before driving
à
p. 5 - 10.
1)
1)
Push down
Push up
Driving
s
5 - 13
