Malfunctions during crane operation

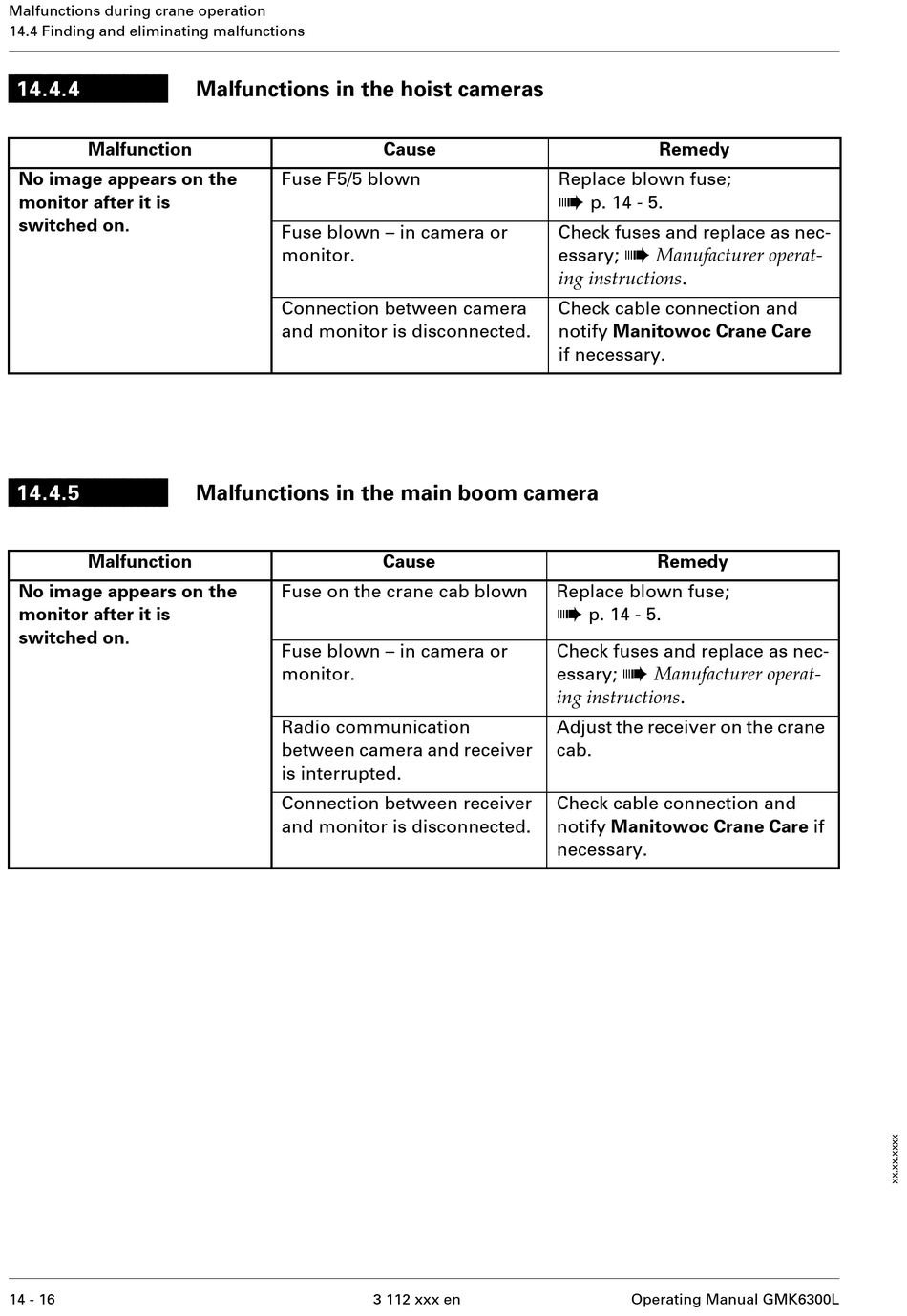

14.4 Finding and eliminating malfunctions
14.4.4
Malfunction
No image appears on the
monitor after it is
switched on.
14.4.5
Malfunction
No image appears on the
monitor after it is
switched on.
14 - 16

Malfunctions in the hoist cameras

Fuse F5/5 blown
Fuse blown – in camera or
monitor.
Connection between camera
and monitor is disconnected.

Malfunctions in the main boom camera

Fuse on the crane cab blown
Fuse blown – in camera or
monitor.
Radio communication
between camera and receiver
is interrupted.
Connection between receiver
and monitor is disconnected.
Cause
Cause
3 112 xxx en
Remedy
Replace blown fuse;
à
p. 14 - 5.
Check fuses and replace as nec-
à
Manufacturer operat-
essary;
ing instructions .
Check cable connection and
notify Manitowoc Crane Care
if necessary.
Remedy
Replace blown fuse;
à
p. 14 - 5.
Check fuses and replace as nec-
à
Manufacturer operat-
essary;
ing instructions .
Adjust the receiver on the crane
cab.
Check cable connection and
notify Manitowoc Crane Care if
necessary.
Operating Manual GMK6300L
