Driving
5.2 Operating the transmission
5.2.11
H
5 - 36

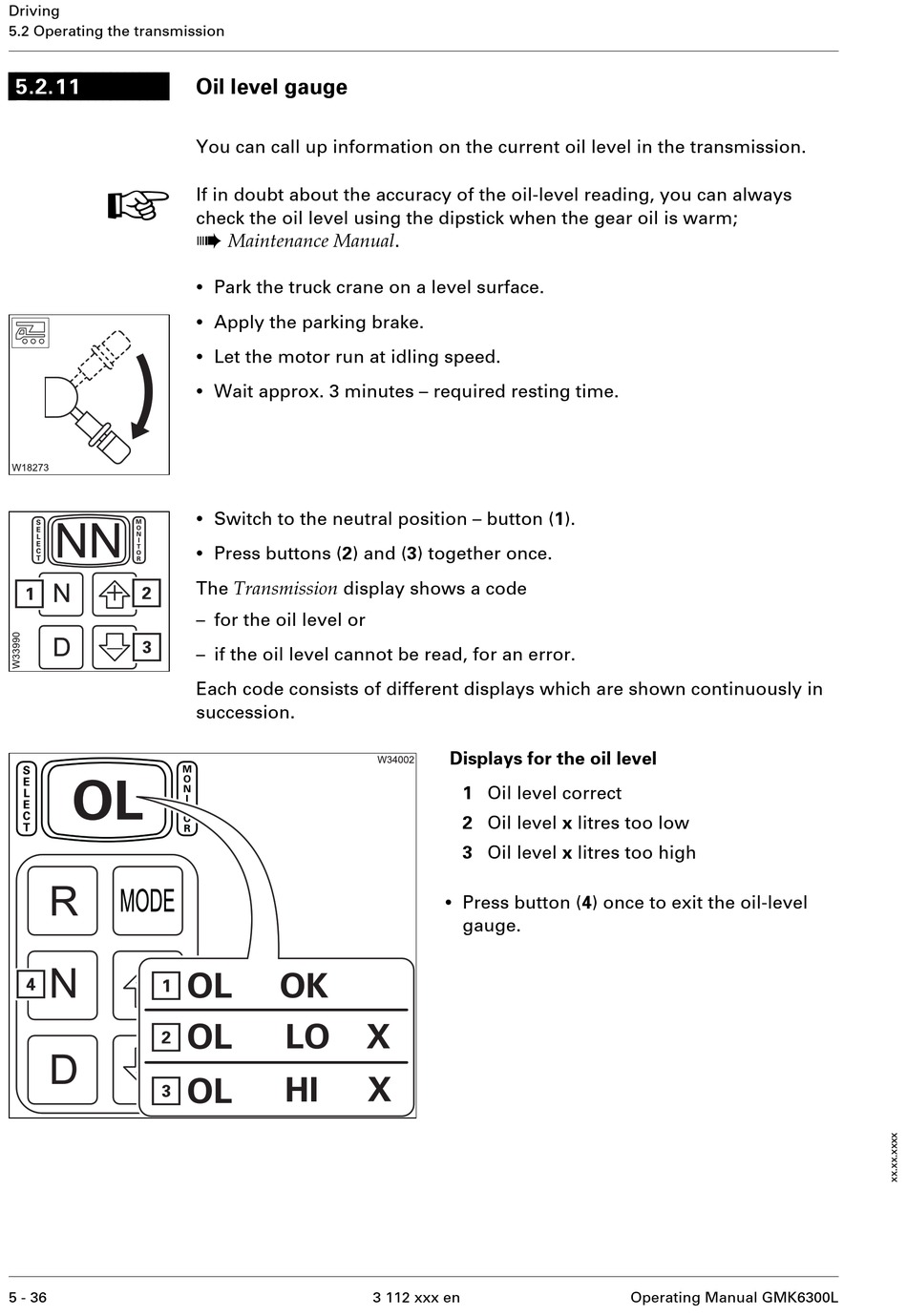

Oil level gauge

You can call up information on the current oil level in the transmission.
If in doubt about the accuracy of the oil-level reading, you can always
check the oil level using the dipstick when the gear oil is warm;
à
Maintenance Manual .
•
Park the truck crane on a level surface.
•
Apply the parking brake.
•
Let the motor run at idling speed.
•
Wait approx. 3 minutes – required resting time.
•
Switch to the neutral position – button (1).
•
Press buttons (2) and (3) together once.
The Transmission display shows a code
– for the oil level or
– if the oil level cannot be read, for an error.
Each code consists of different displays which are shown continuously in
succession.
Displays for the oil level
1 Oil level correct
2 Oil level x litres too low
3 Oil level x litres too high
•
Press button (4) once to exit the oil-level
gauge.
3 112 xxx en Operating Manual GMK6300L
