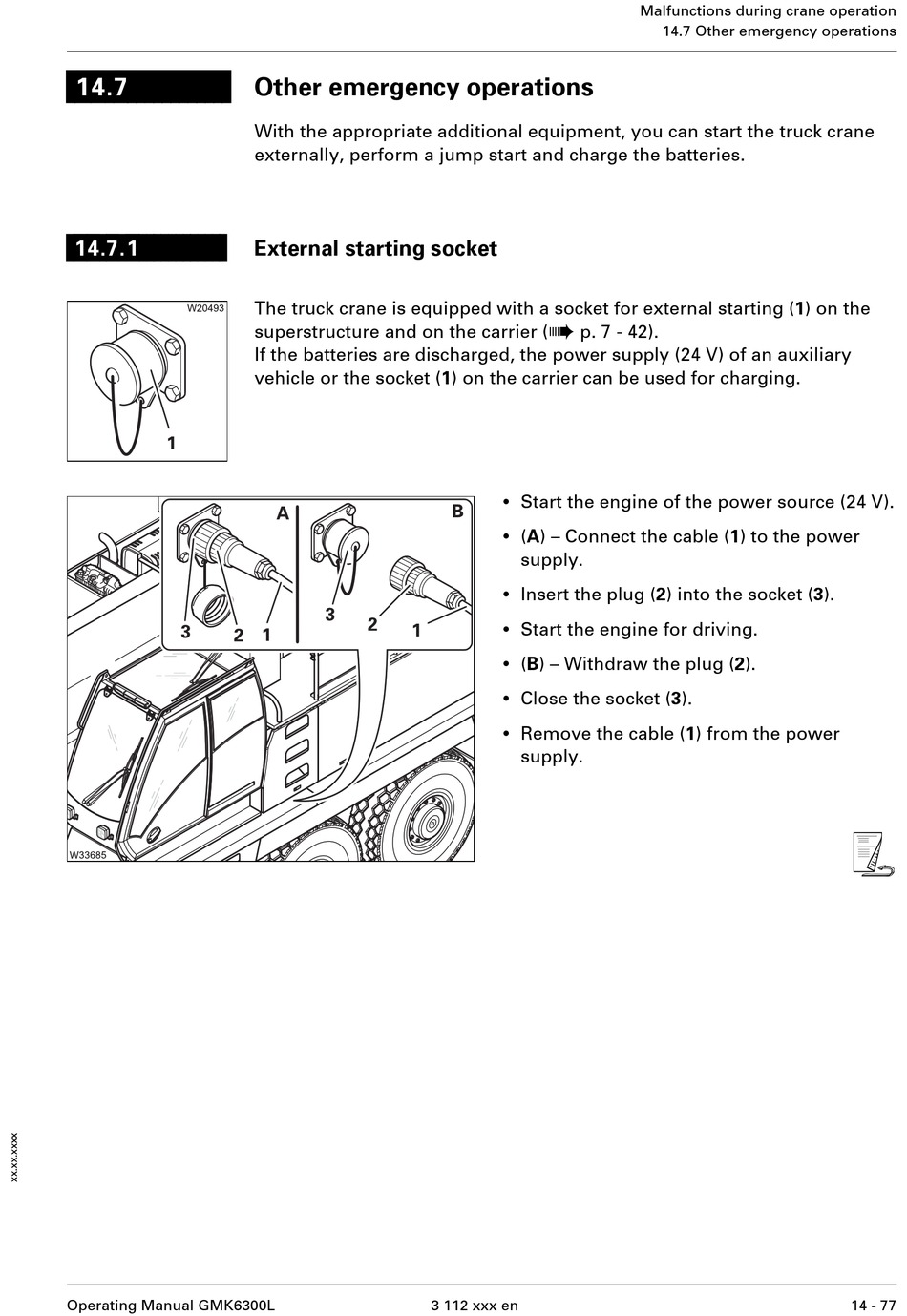

Manitowoc Grove GMK6300L Operating Manual page 977

14.7
14.7.1
Operating Manual GMK6300L
Other emergency operations
With the appropriate additional equipment, you can start the truck crane
externally, perform a jump start and charge the batteries.
External starting socket
The truck crane is equipped with a socket for external starting (1) on the
superstructure and on the carrier (
If the batteries are discharged, the power supply (24 V) of an auxiliary
vehicle or the socket (1) on the carrier can be used for charging.
à
p. 7 - 42).
•
Start the engine of the power source (24 V).
•
(A) – Connect the cable (1) to the power
supply.
•
Insert the plug (2) into the socket (3).
•
Start the engine for driving.
•
(B) – Withdraw the plug (2).
•
Close the socket (3).
•
Remove the cable (1) from the power
supply.
3 112 xxx en
Malfunctions during crane operation
14.7 Other emergency operations
s
14 - 77
