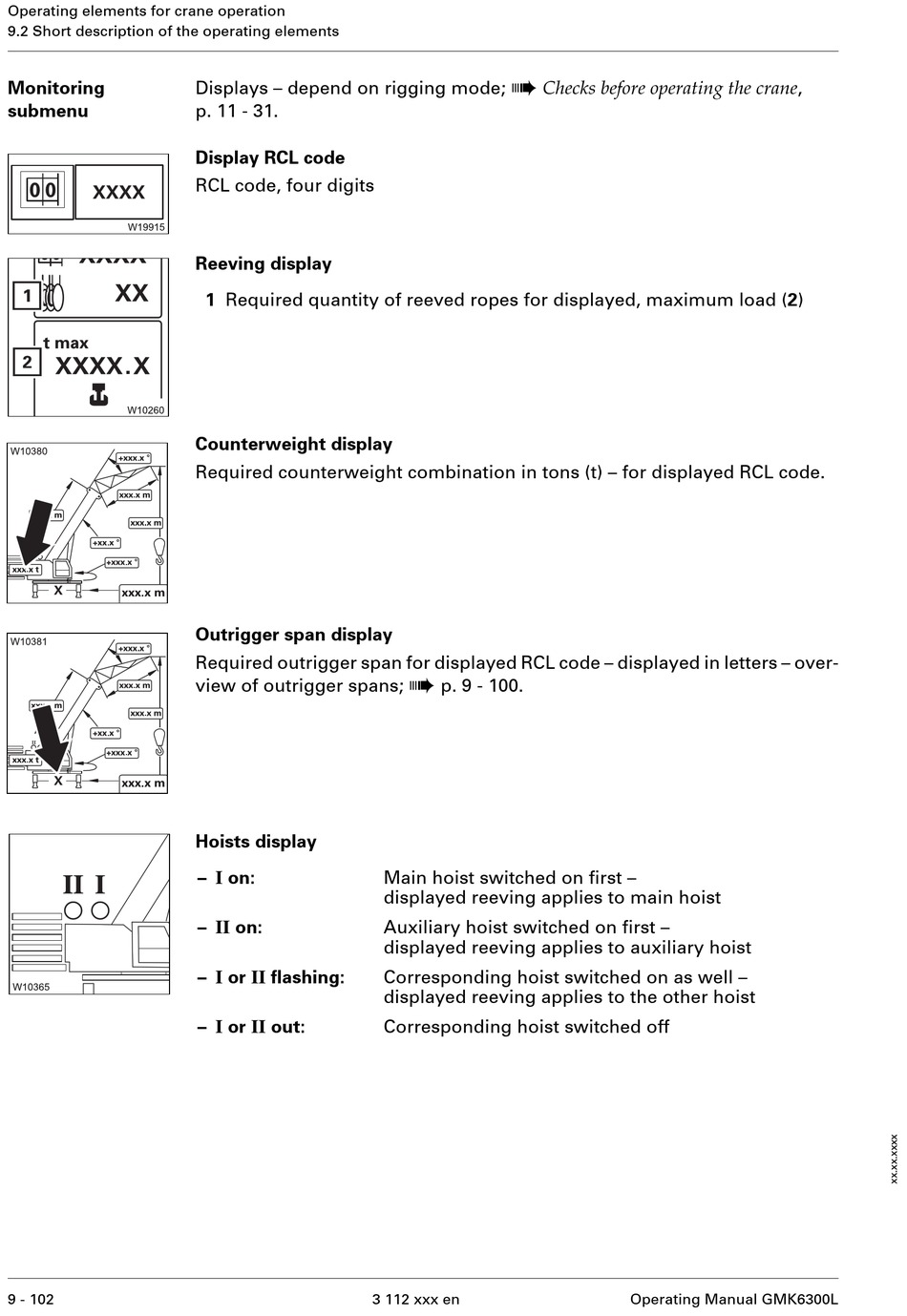

Operating elements for crane operation
9.2 Short description of the operating elements
Monitoring
submenu
9 - 102
Displays – depend on rigging mode;
p. 11 - 31.
Display RCL code
RCL code, four digits
Reeving display
1 Required quantity of reeved ropes for displayed, maximum load (2)
Counterweight display
Required counterweight combination in tons (t) – for displayed RCL code.
Outrigger span display
Required outrigger span for displayed RCL code – displayed in letters – over-
view of outrigger spans;
Hoists display
– I on:
– II on:
– I or II flashing:
– I or II out:
à
Checks before operating the crane ,
à
p. 9 - 100.
Main hoist switched on first –
displayed reeving applies to main hoist
Auxiliary hoist switched on first –
displayed reeving applies to auxiliary hoist
Corresponding hoist switched on as well –
displayed reeving applies to the other hoist
Corresponding hoist switched off
