Operating Manual GMK6300L

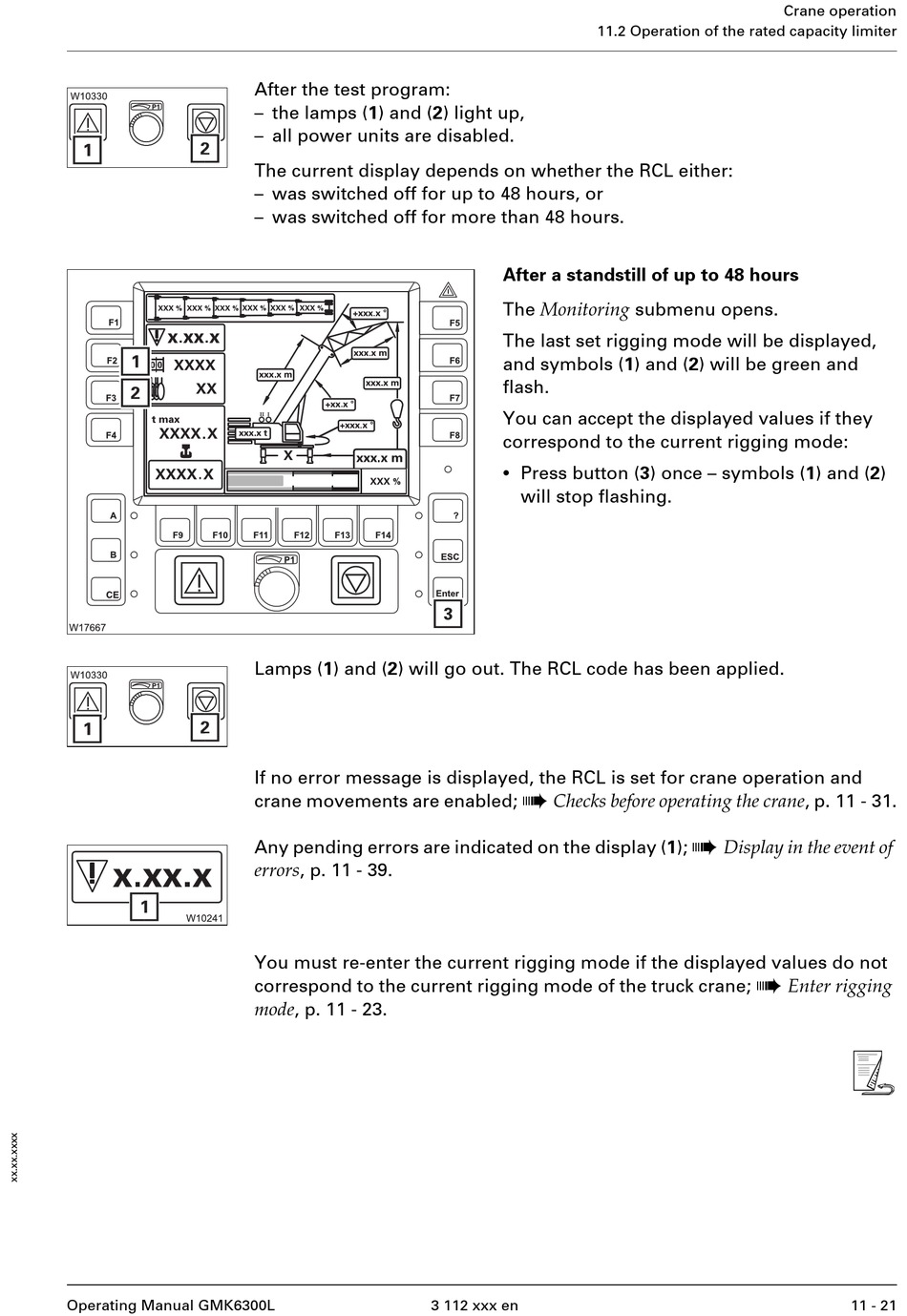

After the test program:
– the lamps (1) and (2) light up,
– all power units are disabled.
The current display depends on whether the RCL either:
– was switched off for up to 48 hours, or
– was switched off for more than 48 hours.
Lamps (1) and (2) will go out. The RCL code has been applied.
If no error message is displayed, the RCL is set for crane operation and
crane movements are enabled;
Any pending errors are indicated on the display (1);
errors , p. 11 - 39.
You must re-enter the current rigging mode if the displayed values do not
correspond to the current rigging mode of the truck crane;
mode , p. 11 - 23.
11.2 Operation of the rated capacity limiter
After a standstill of up to 48 hours
The Monitoring submenu opens.
The last set rigging mode will be displayed,
and symbols (1) and (2) will be green and
flash.
You can accept the displayed values if they
correspond to the current rigging mode:
•
Press button (3) once – symbols (1) and (2)
will stop flashing.
à
Checks before operating the crane , p. 11 - 31.
3 112 xxx en
Crane operation
à
Display in the event of
à
Enter rigging
s
11 - 21
