6.1.2
H
For tyres
385/95 R25
Operating Manual GMK6300L

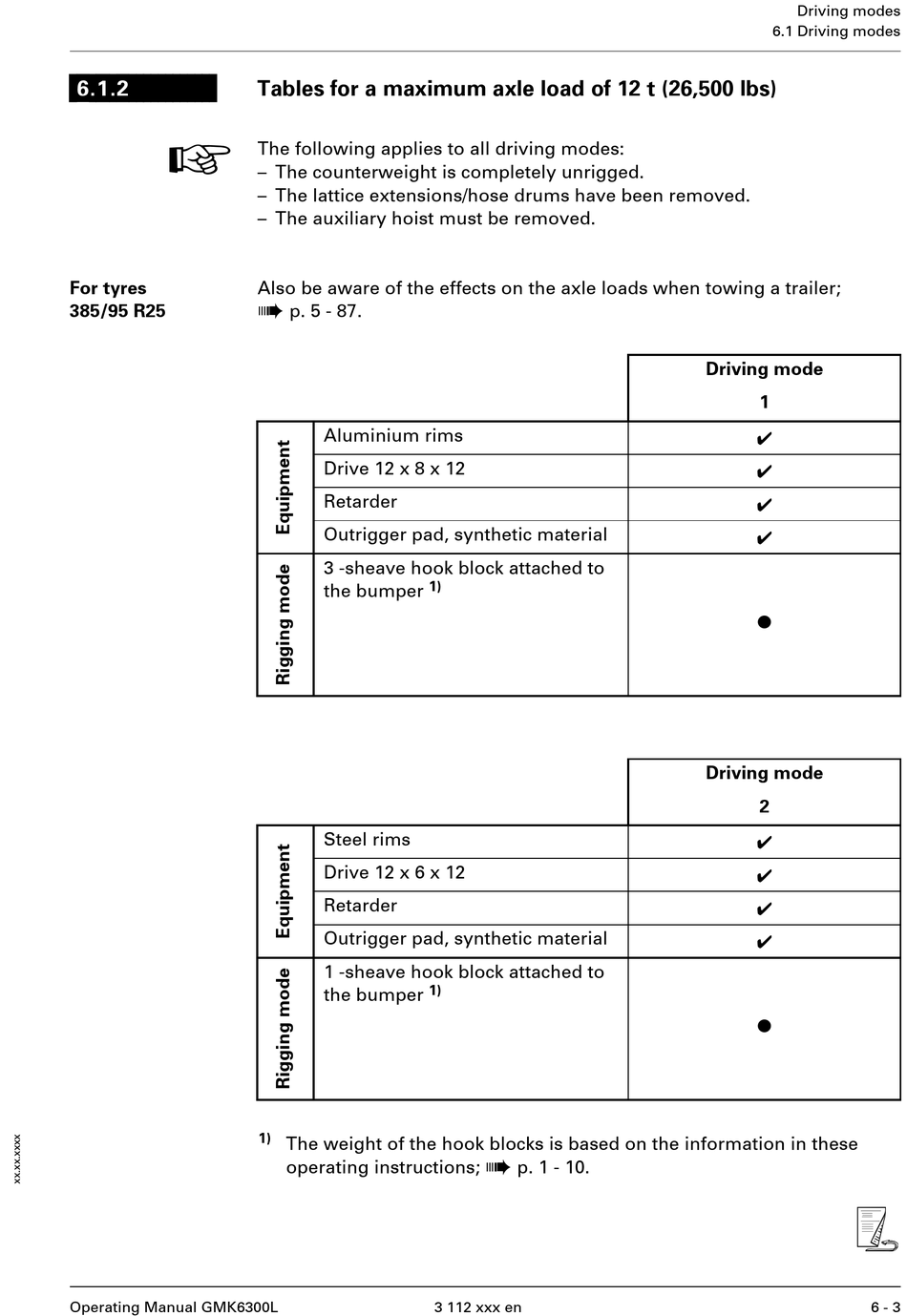

Tables for a maximum axle load of 12 t (26,500 lbs)

The following applies to all driving modes:
– The counterweight is completely unrigged.
– The lattice extensions/hose drums have been removed.
– The auxiliary hoist must be removed.
Also be aware of the effects on the axle loads when towing a trailer;
à
p. 5 - 87.
Aluminium rims
Drive 12 x 8 x 12
Retarder
Outrigger pad, synthetic material
3 -sheave hook block attached to
the bumper
Steel rims
Drive 12 x 6 x 12
Retarder
Outrigger pad, synthetic material
1 -sheave hook block attached to
the bumper
1)
The weight of the hook blocks is based on the information in these
operating instructions;
1)
1)
à
p. 1 - 10.
3 112 xxx en
Driving modes
6.1 Driving modes
Driving mode
1
✔
✔
✔
✔
●
Driving mode
2
✔
✔
✔
✔
●
s
6 - 3
