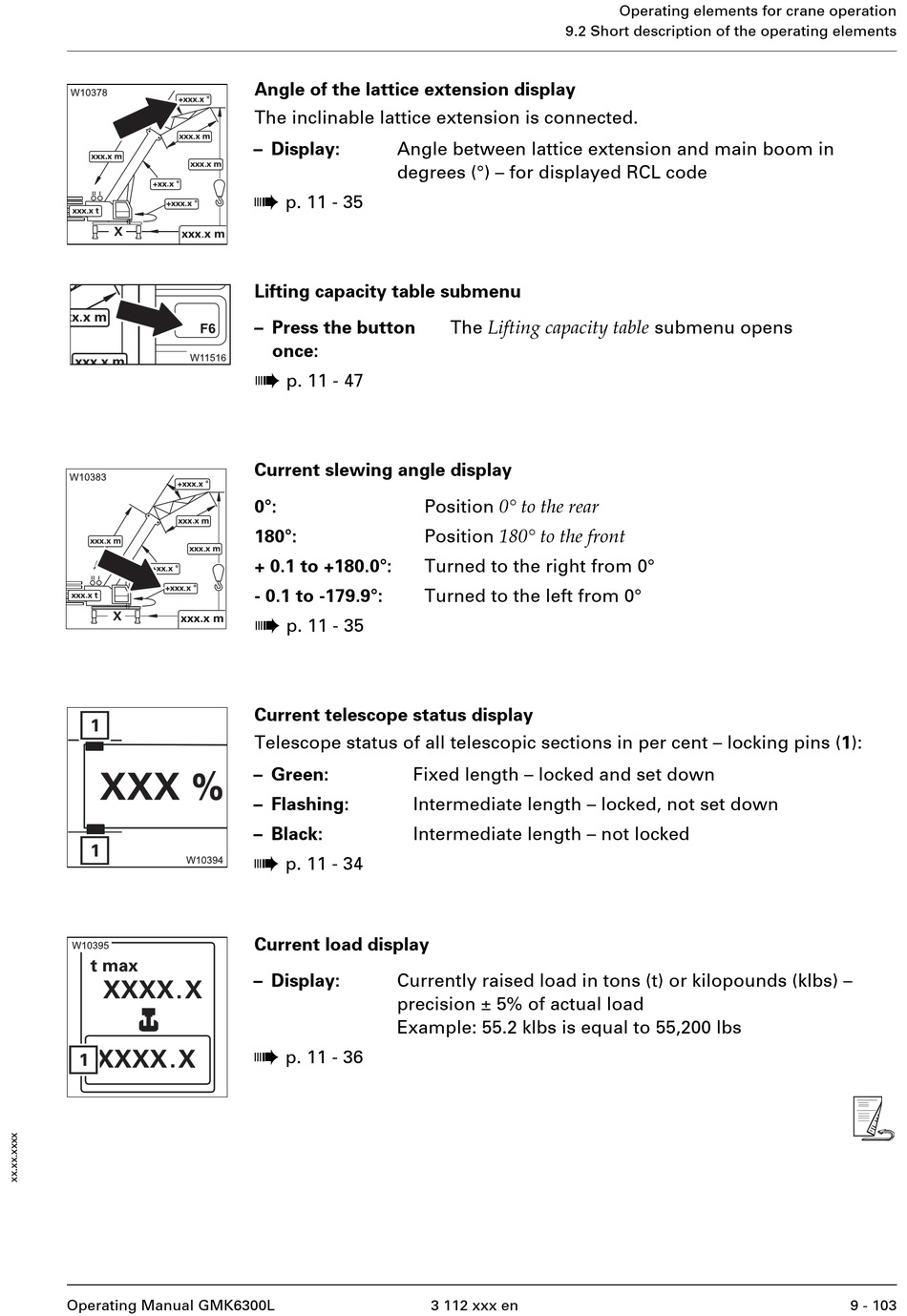

Manitowoc Grove GMK6300L Operating Manual page 567

Operating Manual GMK6300L
Angle of the lattice extension display
The inclinable lattice extension is connected.
– Display: Angle between lattice extension and main boom in
degrees (°) – for displayed RCL code
à
p. 11 - 35
Lifting capacity table submenu
– Press the button
once:
à
p. 11 - 47
Current slewing angle display
0°:
180°:
+ 0.1 to +180.0°:
- 0.1 to -179.9°:
à
p. 11 - 35
Current telescope status display
Telescope status of all telescopic sections in per cent – locking pins (1):
– Green: Fixed length – locked and set down
– Flashing: Intermediate length – locked, not set down
– Black: Intermediate length – not locked
à
p. 11 - 34
Current load display
– Display: Currently raised load in tons (t) or kilopounds (klbs) –
precision ± 5% of actual load
Example: 55.2 klbs is equal to 55,200 lbs
à
p. 11 - 36
9.2 Short description of the operating elements
The Lifting capacity table submenu opens
Position 0° to the rear
Position 180° to the front
Turned to the right from 0°
Turned to the left from 0°
3 112 xxx en
Operating elements for crane operation
s
9 - 103
