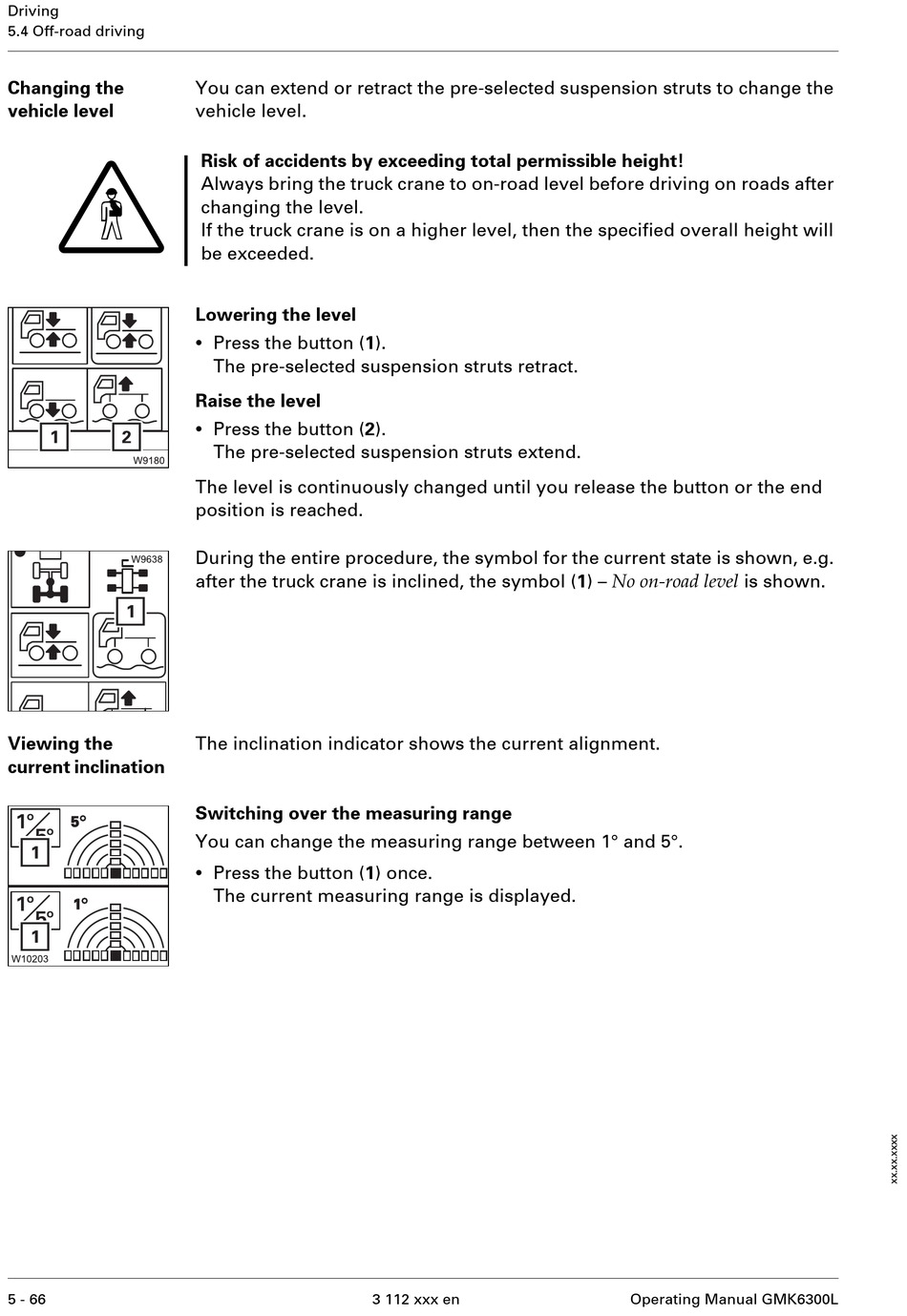

Driving
5.4 Off-road driving
Changing the
vehicle level
G
Viewing the
current inclination
5 - 66
You can extend or retract the pre-selected suspension struts to change the
vehicle level.
Risk of accidents by exceeding total permissible height!
Always bring the truck crane to on-road level before driving on roads after
changing the level.
If the truck crane is on a higher level, then the specified overall height will
be exceeded.
Lowering the level
•
Press the button (1).
The pre-selected suspension struts retract.
Raise the level
•
Press the button (2).
The pre-selected suspension struts extend.
The level is continuously changed until you release the button or the end
position is reached.
During the entire procedure, the symbol for the current state is shown, e.g.
after the truck crane is inclined, the symbol (1) – No on-road level is shown.
The inclination indicator shows the current alignment.
Switching over the measuring range
You can change the measuring range between 1° and 5°.
•
Press the button (1) once.
The current measuring range is displayed.
