Overview

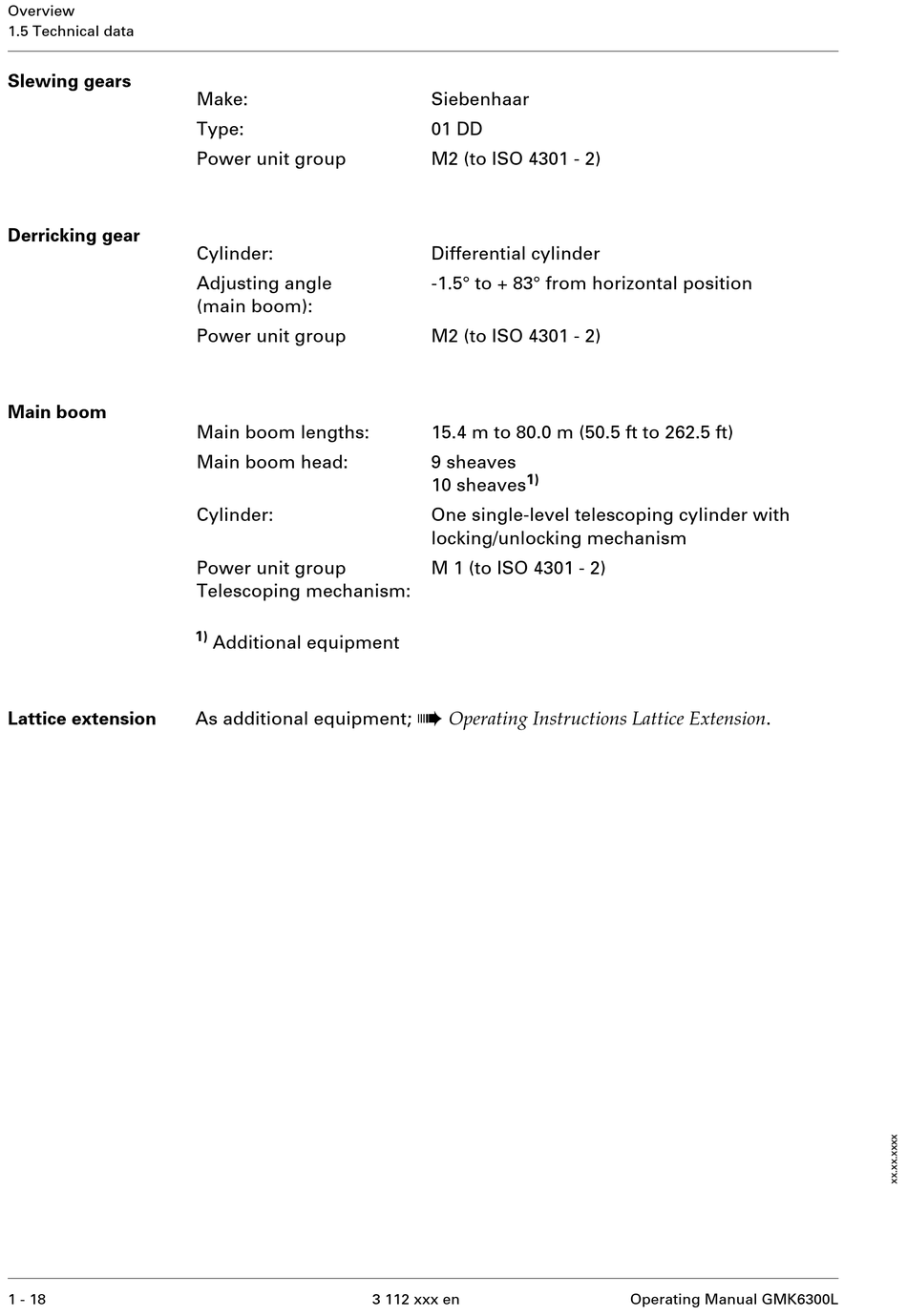

1.5 Technical data
Slewing gears
Derricking gear
Main boom
Lattice extension
1 - 18
Make:
Type:
Power unit group
Cylinder:
Adjusting angle
(main boom):
Power unit group
Main boom lengths:
Main boom head:
Cylinder:
Power unit group
Telescoping mechanism:
1)
Additional equipment
As additional equipment;
Siebenhaar
01 DD
M2 (to ISO 4301 - 2)
Differential cylinder
-1.5° to + 83° from horizontal position
M2 (to ISO 4301 - 2)
15.4 m to 80.0 m (50.5 ft to 262.5 ft)
9 sheaves
1)
10 sheaves
One single-level telescoping cylinder with
locking/unlocking mechanism
M 1 (to ISO 4301 - 2)
à
Operating Instructions Lattice Extension .
3 112 xxx en Operating Manual GMK6300L
