12.6.7
H
Operating Manual GMK6300L

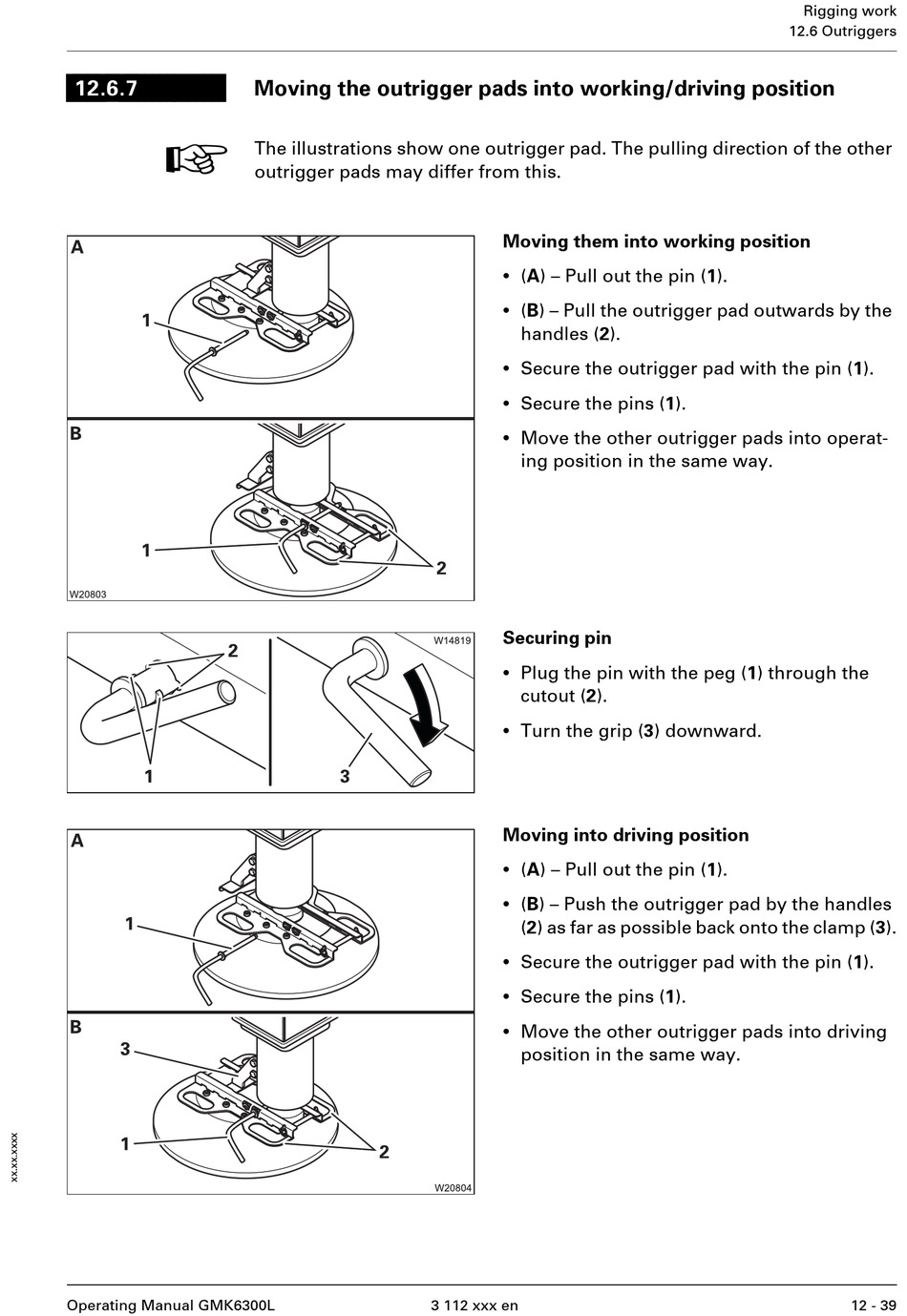

Moving the outrigger pads into working/driving position

The illustrations show one outrigger pad. The pulling direction of the other
outrigger pads may differ from this.
Moving them into working position
•
(A) – Pull out the pin (1).
•
(B) – Pull the outrigger pad outwards by the
handles (2).
•
Secure the outrigger pad with the pin (1).
•
Secure the pins (1).
•
Move the other outrigger pads into operat-
ing position in the same way.
Securing pin
•
Plug the pin with the peg (1) through the
cutout (2).
•
Turn the grip (3) downward.
Moving into driving position
•
(A) – Pull out the pin (1).
•
(B) – Push the outrigger pad by the handles
(2) as far as possible back onto the clamp (3).
•
Secure the outrigger pad with the pin (1).
•
Secure the pins (1).
•
Move the other outrigger pads into driving
position in the same way.
3 112 xxx en
Rigging work
12.6 Outriggers
12 - 39
