Crane operation
11.3 Crane operation with main boom
11 - 90

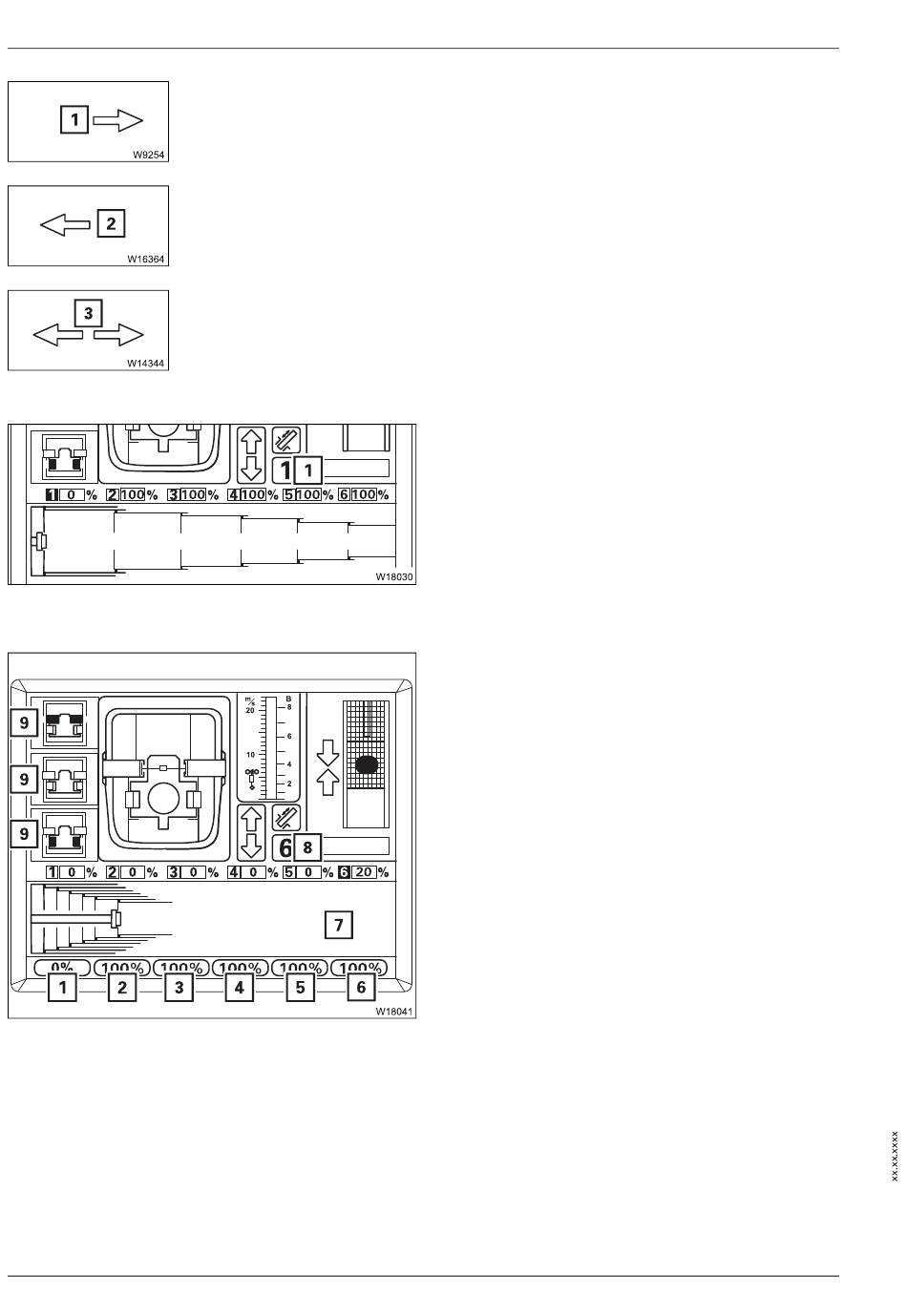

– The displayed symbol, e.g. symbol (1) will flash if the control lever is
moved incorrectly.
– If the control lever movement is correct, ECOS will telescope automati-
cally until a change in direction is required. Then the symbol for the new
movement will be displayed, e.g. (2) for Retracting .
– For unloaded movements of the telescoping cylinder (without telescopic
section), symbol (3) is displayed.
Ending teleautomation
The teleautomation will stop when the entered
telescope status is reached.
•
Move the control lever to its initial position.
Display (1) – teleautomation off.
Cancelling teleautomation
•
Press button (9) once.
Telescoping stop – teleautomation off:
– Values (1) to (6) are red.
– Display (7) goes out,
– Display (8) – teleautomation off.
