Suspension - Manitowoc Grove GMK6300L Operating Manual

3.2.14
Operating Manual GMK6300L

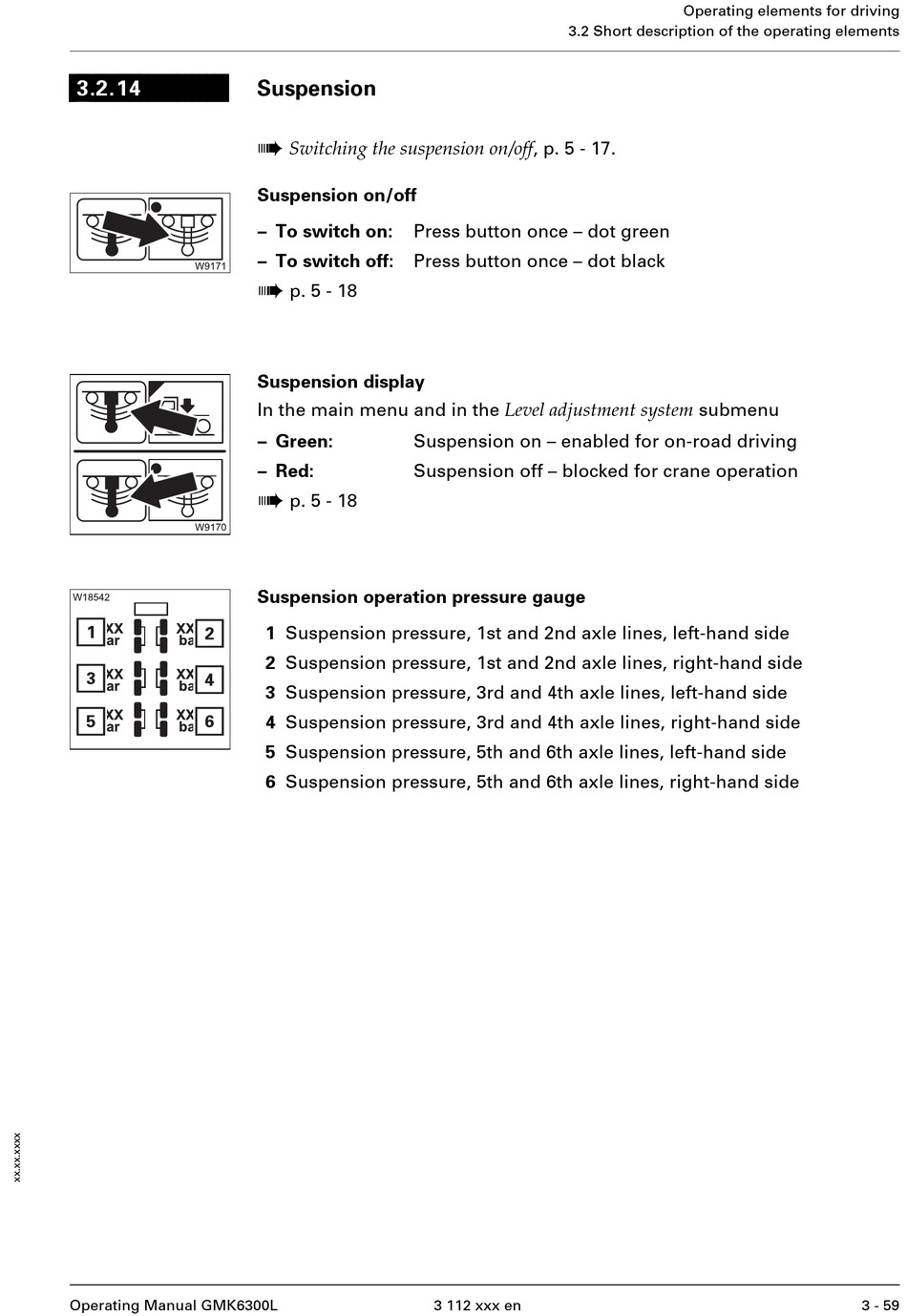

Suspension

à
Switching the suspension on/off , p. 5 - 17.
Suspension on/off
– To switch on: Press button once – dot green
– To switch off: Press button once – dot black
à
p. 5 - 18
Suspension display
In the main menu and in the Level adjustment system submenu
– Green: Suspension on – enabled for on-road driving
– Red: Suspension off – blocked for crane operation
à
p. 5 - 18
Suspension operation pressure gauge
1 Suspension pressure, 1st and 2nd axle lines, left-hand side
2 Suspension pressure, 1st and 2nd axle lines, right-hand side
3 Suspension pressure, 3rd and 4th axle lines, left-hand side
4 Suspension pressure, 3rd and 4th axle lines, right-hand side
5 Suspension pressure, 5th and 6th axle lines, left-hand side
6 Suspension pressure, 5th and 6th axle lines, right-hand side
3.2 Short description of the operating elements
3 112 xxx en
Operating elements for driving
3 - 59
