Crane operation

11.2 Operation of the rated capacity limiter

Entering the RCL

You must enter the RCL code for the rigging mode according to the Lifting

capacity table .

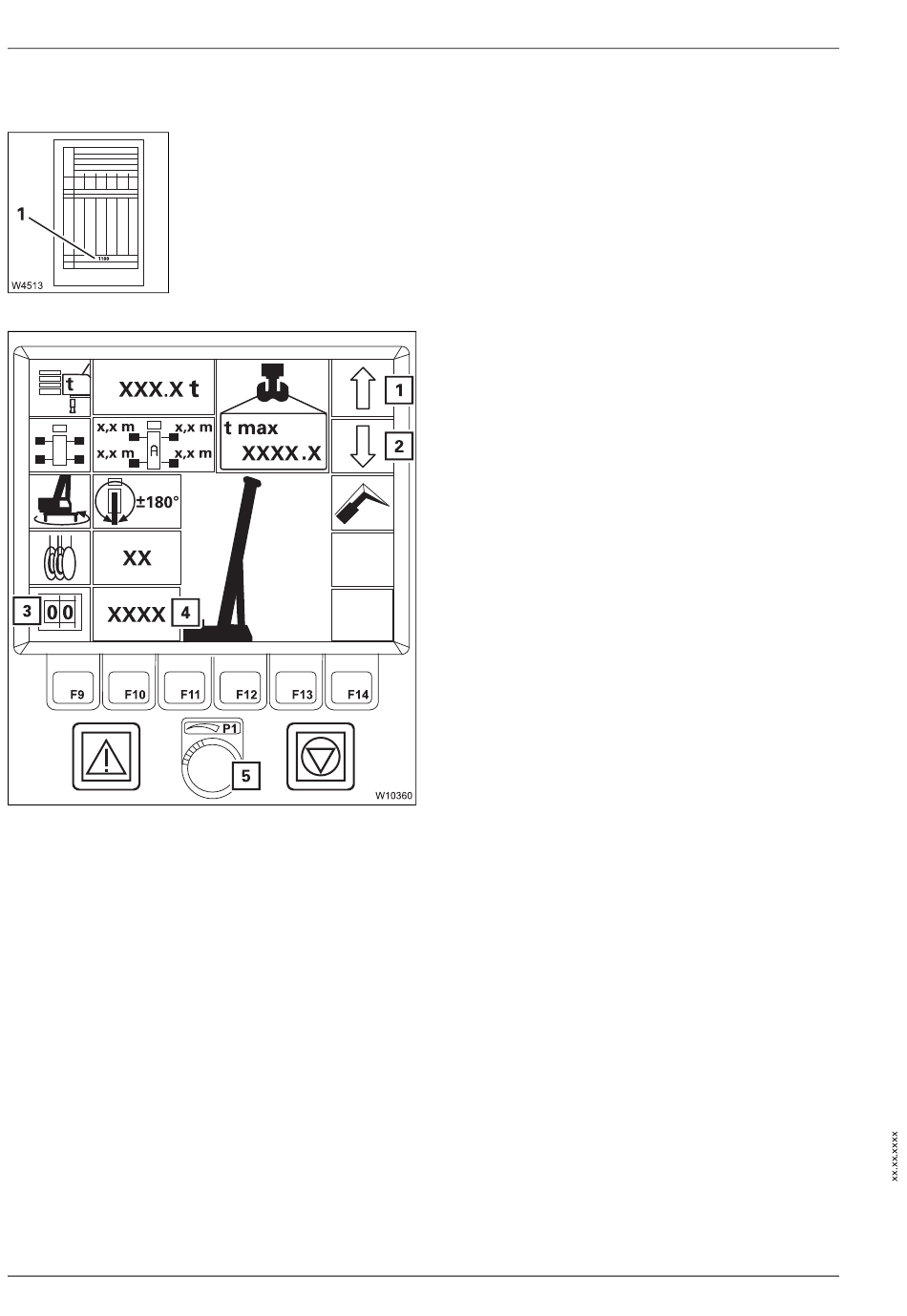

Refer to the Lifting capacity table for the current rigging mode. The corre-

sponding RCL code (1) is specified at the bottom of the table (e.g. 1100).

Press button (3) once – symbol is green.

Press button (1) or (2) repeatedly until dis-

play (4) shows the required RCL code.

Select the RCL code with switch (5).

The other displays will show the corre-

sponding rigging mode.

Now you can enter the reeving and accept the

rigging mode.

3 112 xxx en
