Operating elements for crane operation

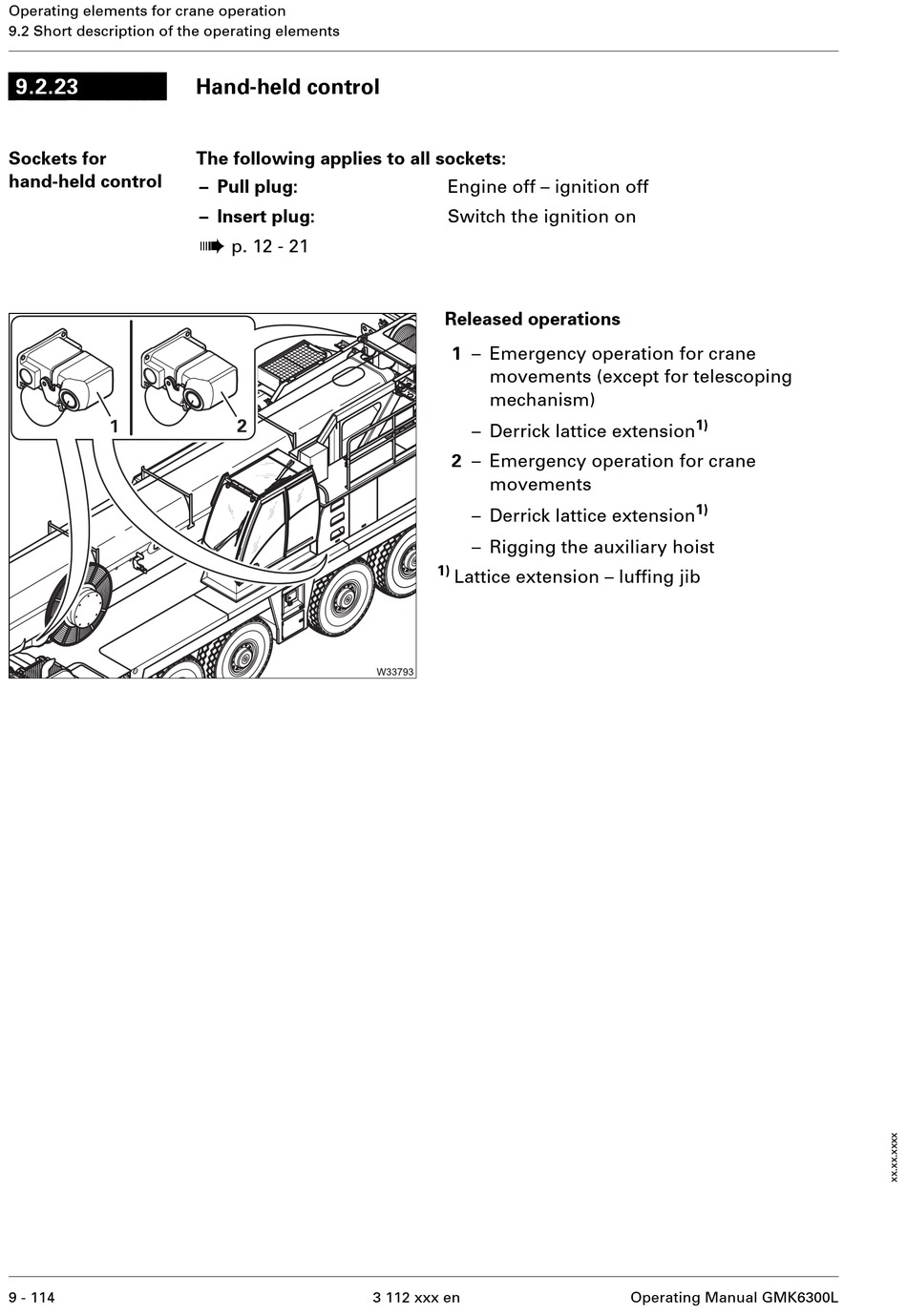

9.2 Short description of the operating elements
9.2.23
Sockets for

hand-held control

9 - 114
Hand-held control
The following applies to all sockets:
– Pull plug:
– Insert plug:
à
p. 12 - 21
Engine off – ignition off
Switch the ignition on
Released operations
1 – Emergency operation for crane
movements (except for telescoping
mechanism)
– Derrick lattice extension
2 – Emergency operation for crane
movements
– Derrick lattice extension
– Rigging the auxiliary hoist
1)
Lattice extension – luffing jib
3 112 xxx en
1)
1)
Operating Manual GMK6300L
