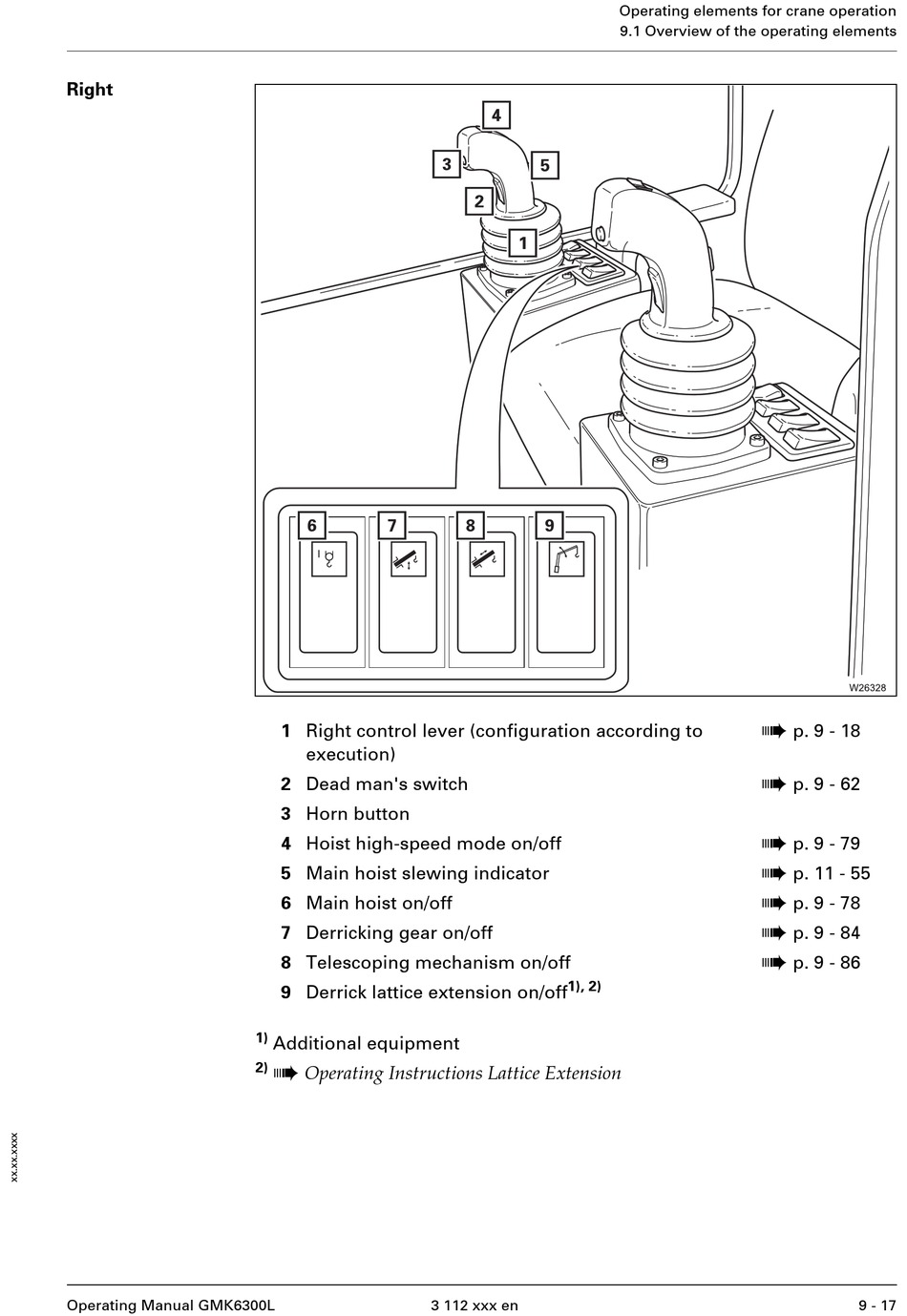

Right
Operating Manual GMK6300L
1 Right control lever (configuration according to
execution)
2 Dead man's switch
3 Horn button
4 Hoist high-speed mode on/off
5 Main hoist slewing indicator
6 Main hoist on/off
7 Derricking gear on/off
8 Telescoping mechanism on/off
9 Derrick lattice extension on/off
1)
Additional equipment
à
2)
Operating Instructions Lattice Extension
1), 2)
3 112 xxx en
Operating elements for crane operation
9.1 Overview of the operating elements
à
à
à
à
à
à
à
p. 9 - 18
p. 9 - 62
p. 9 - 79
p. 11 - 55
p. 9 - 78
p. 9 - 84
p. 9 - 86
9 - 17
