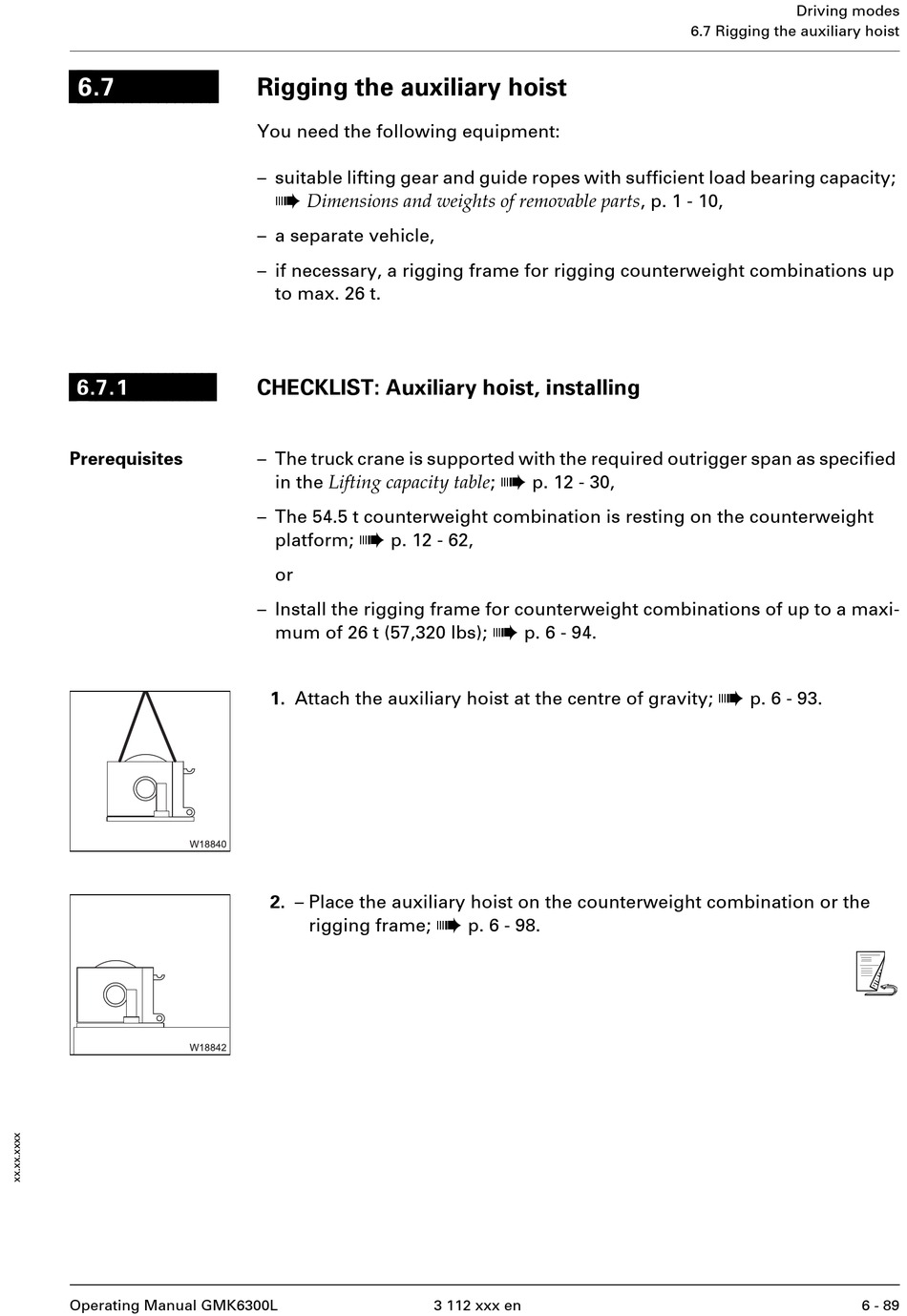

Rigging The Auxiliary Hoist; Checklist: Auxiliary Hoist, Installing - Manitowoc Grove GMK6300L Operating Manual

6.7
6.7.1
Prerequisites
Operating Manual GMK6300L

Rigging the auxiliary hoist

You need the following equipment:
– suitable lifting gear and guide ropes with sufficient load bearing capacity;
à
Dimensions and weights of removable parts , p. 1 - 10,
– a separate vehicle,
– if necessary, a rigging frame for rigging counterweight combinations up
to max. 26 t.

CHECKLIST: Auxiliary hoist, installing

– The truck crane is supported with the required outrigger span as specified
in the Lifting capacity table ;
– The 54.5 t counterweight combination is resting on the counterweight
à
platform; p. 12 - 62,
or
– Install the rigging frame for counterweight combinations of up to a maxi-
mum of 26 t (57,320 lbs);
1. Attach the auxiliary hoist at the centre of gravity;
2. – Place the auxiliary hoist on the counterweight combination or the
rigging frame;
à
p. 12 - 30,
à
p. 6 - 94.
à
p. 6 - 98.
