Levelling The Truck Crane On Outriggers - Manitowoc Grove GMK6300L Operating Manual

Rigging work
12.6 Outriggers
12.6.10
Inclination
indicators
12 - 46

Levelling the truck crane on outriggers

You must level the truck crane before crane operation and possibly correct
its horizontal alignment during crane operation.

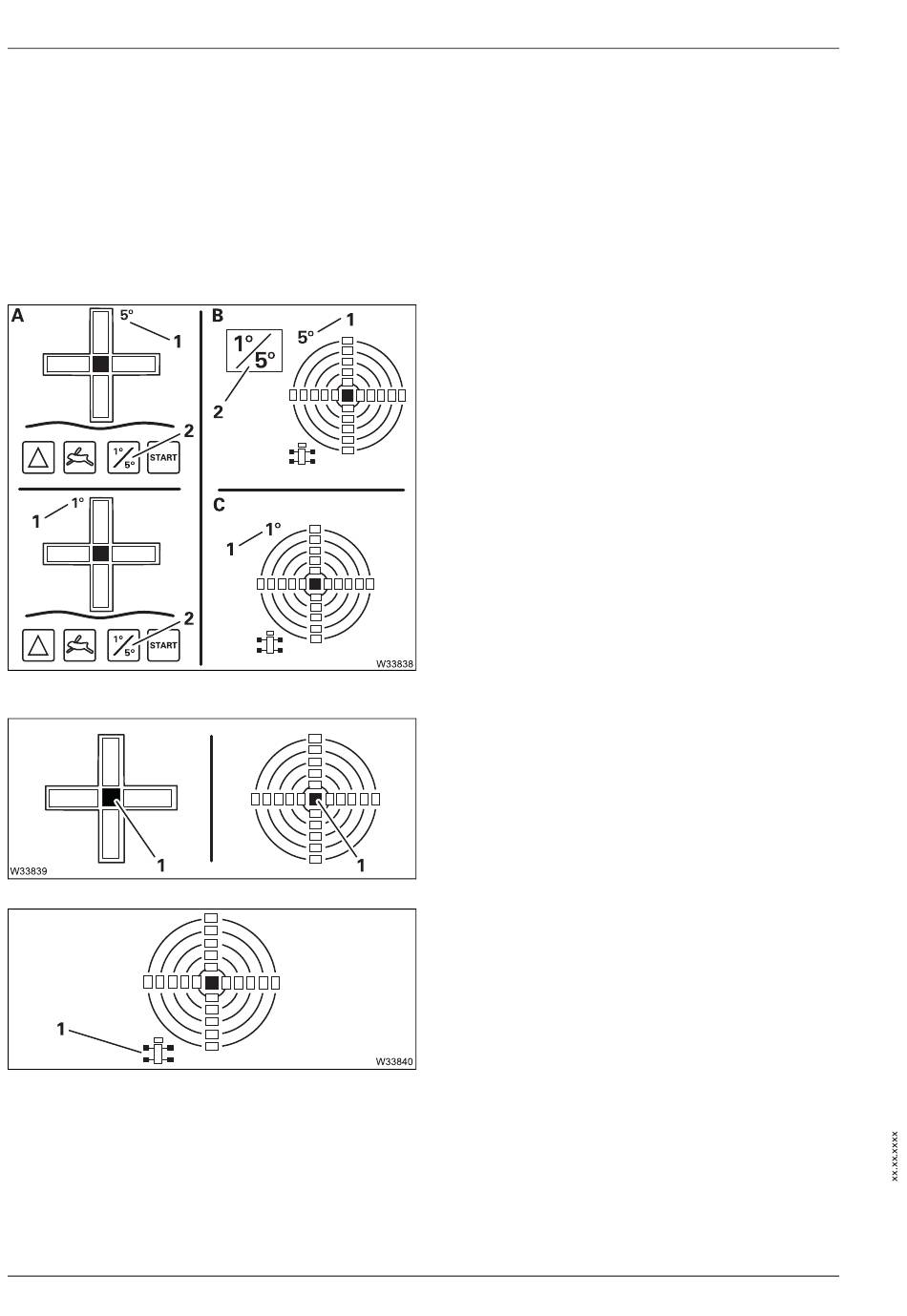

After switching on the ignition, various inclination indicators display the
current alignment.
A On the outrigger control units
On the ECOS display
B In the Outriggers submenu
C In the main menu
Switch measuring range
You can change the measuring range
between 1° and 5°.
•
Press the button (2) once.
The current measuring range (1) is
displayed.
Reading the display
Only the lamp (1) at the centre is on if the truck
crane is level.
The other lamps show the sides of the truck
crane which are higher.
– ECOS hand-held control/display
The assignment to the carrier is given by the
directional indicator (1).
In this example, the carrier would be stand-
ing higher to the rear on the right hand side.
