Driving
5.6 Heating and air-conditioning system

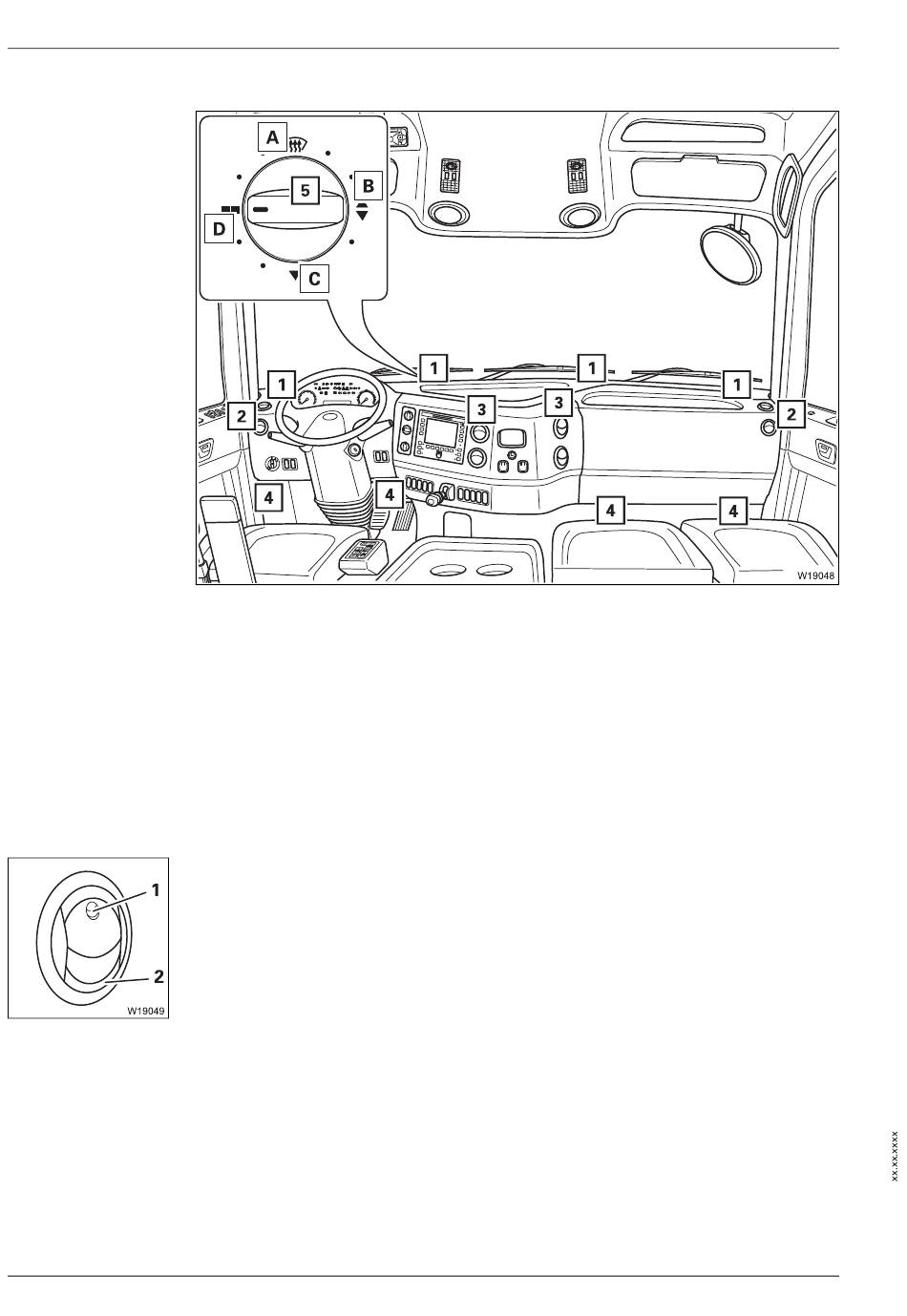

Air distribution
5 - 76
You can direct the air to flow out of various air vents.
Turn the switch (5) to the position for the required air vents.
A Air vents (1), (2) – front windscreen, side
B Air vents (1) to (4)
C Air vents (2), (3), (4) – side, centre, below
D Air vents (2), (3) – side, centre
You can adjust air vents (2) and (3).
Adjusting the air vents
1 – To open:
– To close:
– To direct the air flow:
2 – To direct the air flow:
Press in and position lengthwise
Position crosswise
In intermediate position
Slewing
3 112 xxx en
Operating Manual GMK6300L
