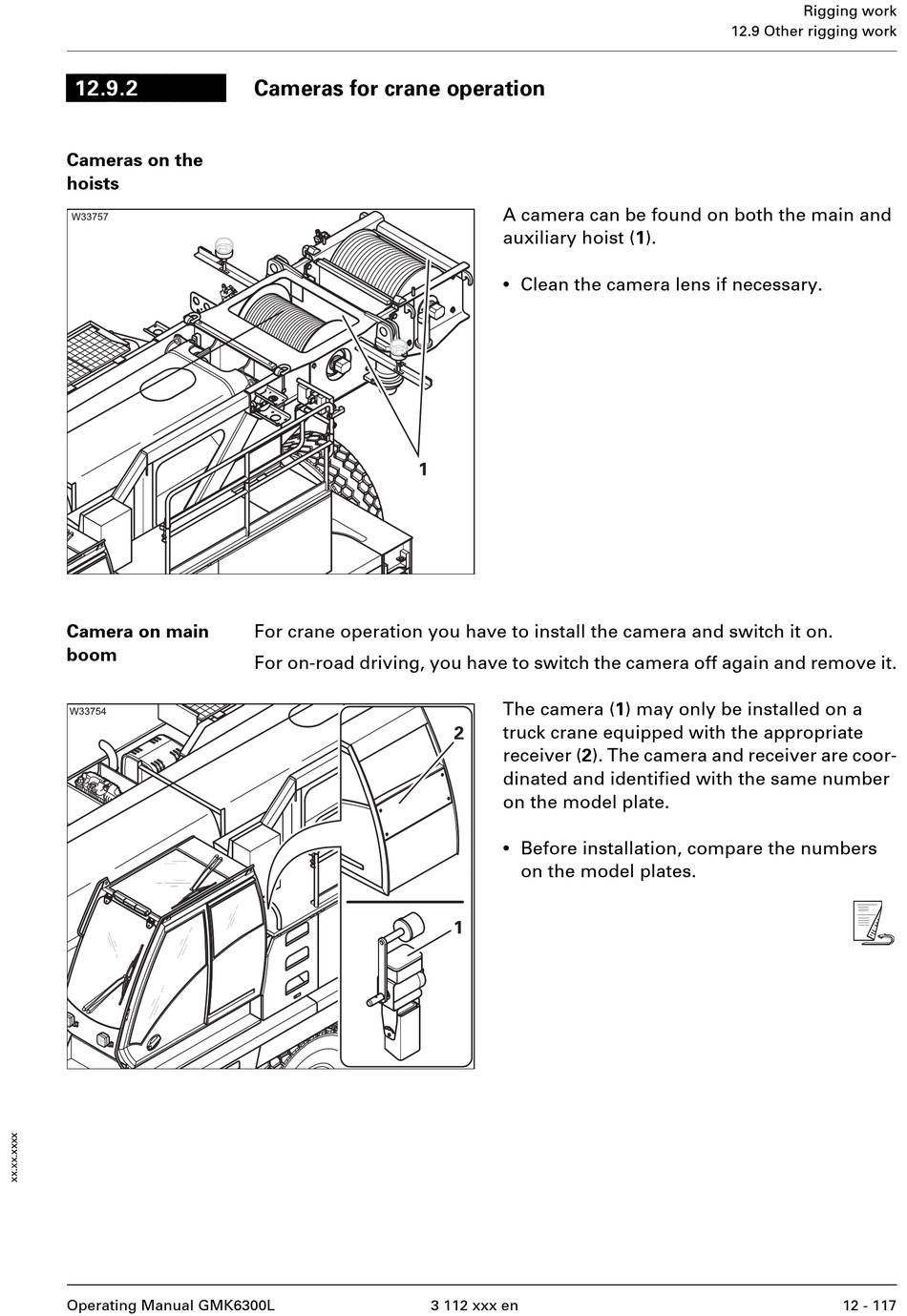

12.9.2
Cameras on the
hoists
Camera on main
boom
Operating Manual GMK6300L

Cameras for crane operation

For crane operation you have to install the camera and switch it on.
For on-road driving, you have to switch the camera off again and remove it.
A camera can be found on both the main and
auxiliary hoist (1).
•
Clean the camera lens if necessary.
The camera (1) may only be installed on a
truck crane equipped with the appropriate
receiver (2). The camera and receiver are coor-
dinated and identified with the same number
on the model plate.
•
Before installation, compare the numbers
on the model plates.
3 112 xxx en
Rigging work
12.9 Other rigging work
s
12 - 117
