Operating Manual GMK6300L

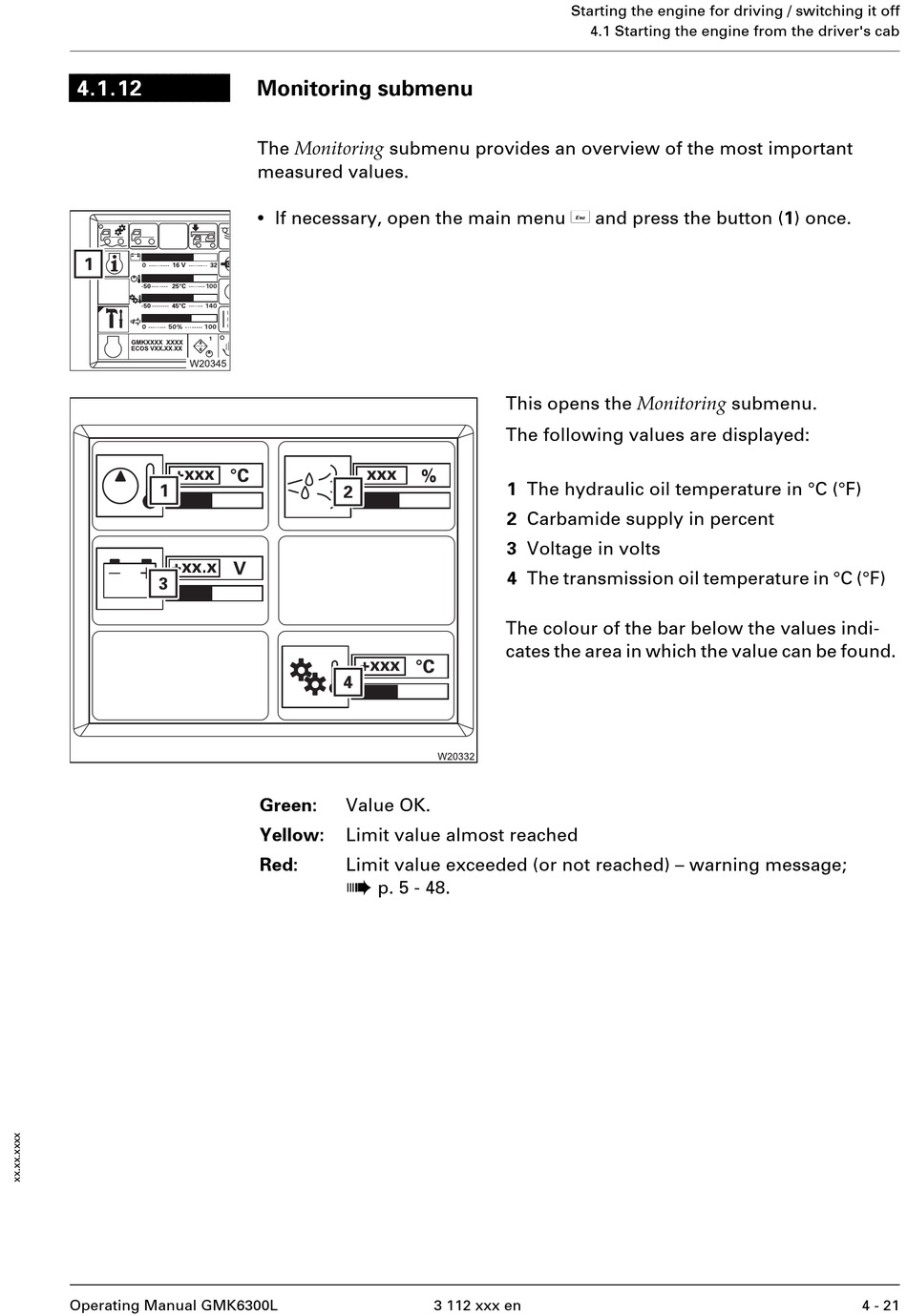

Monitoring submenu

The Monitoring submenu provides an overview of the most important

measured values.

If necessary, open the main menu

Limit value almost reached

Limit value exceeded (or not reached) – warning message;

Starting the engine for driving / switching it off

4.1 Starting the engine from the driver's cab

and press the button (1) once.

This opens the Monitoring submenu.

The following values are displayed:

1 The hydraulic oil temperature in °C (°F)

2 Carbamide supply in percent

3 Voltage in volts

4 The transmission oil temperature in °C (°F)

The colour of the bar below the values indi-

cates the area in which the value can be found.

3 112 xxx en
