Driving modes
6.7 Rigging the auxiliary hoist
6.7.8
G
Establishing the
connection
6 - 98

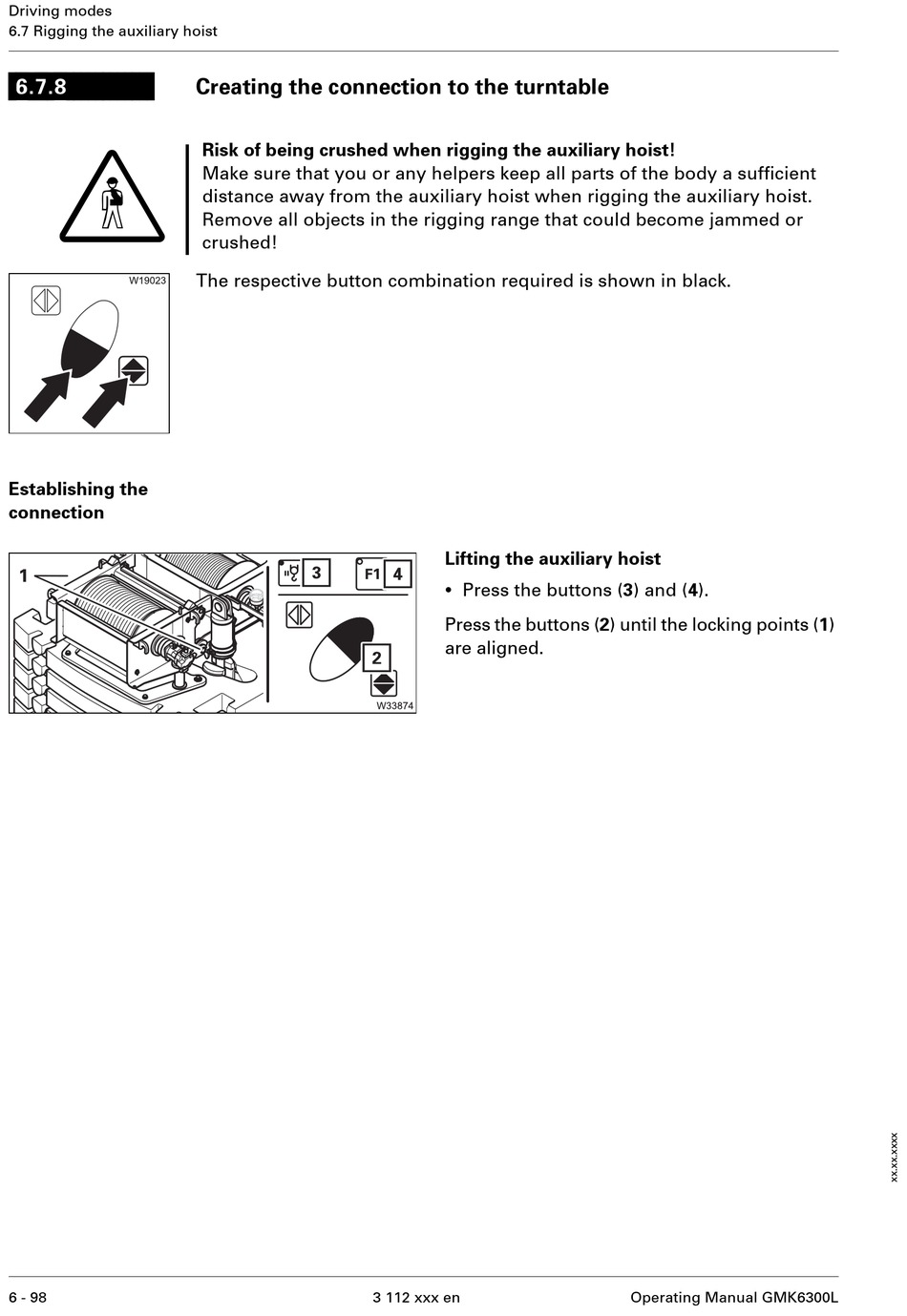

Creating the connection to the turntable

Risk of being crushed when rigging the auxiliary hoist!
Make sure that you or any helpers keep all parts of the body a sufficient
distance away from the auxiliary hoist when rigging the auxiliary hoist.
Remove all objects in the rigging range that could become jammed or
crushed!
The respective button combination required is shown in black.
Lifting the auxiliary hoist
•
Press the buttons (3) and (4).
Press the buttons (2) until the locking points (1)
are aligned.
3 112 xxx en Operating Manual GMK6300L
