Operating Manual GMK6300L

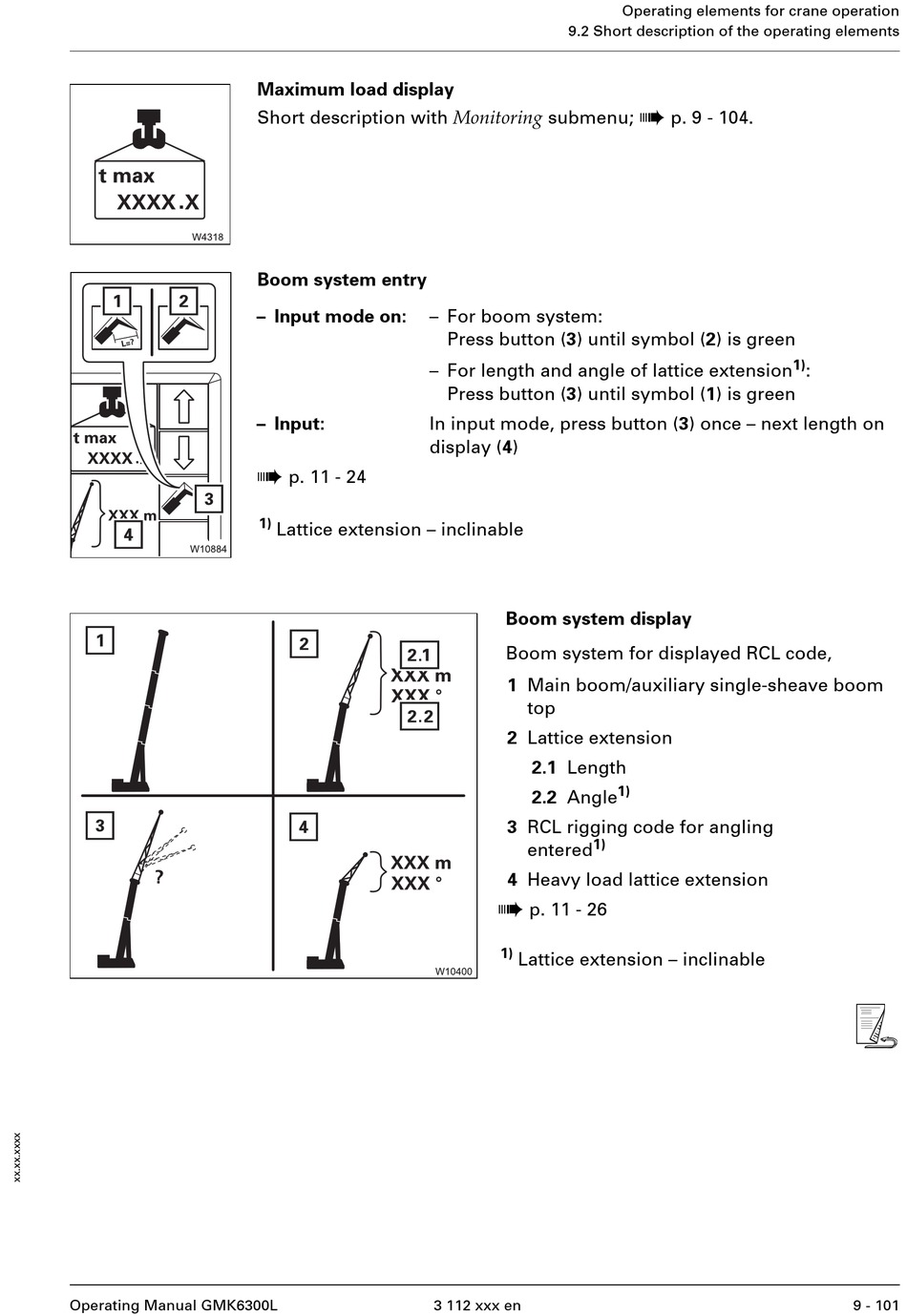

Maximum load display
Short description with Monitoring submenu;
Boom system entry
– Input mode on:
– Input:
à
p. 11 - 24
1)
Lattice extension – inclinable
9.2 Short description of the operating elements
– For boom system:
Press button (3) until symbol (2) is green
– For length and angle of lattice extension
Press button (3) until symbol (1) is green
In input mode, press button (3) once – next length on
display (4)
Boom system display
Boom system for displayed RCL code,
1 Main boom/auxiliary single-sheave boom
top
2 Lattice extension
2.1 Length
2.2 Angle
3 RCL rigging code for angling
1)
entered
4 Heavy load lattice extension
à
p. 11 - 26
1)
Lattice extension – inclinable
3 112 xxx en
Operating elements for crane operation
à
p. 9 - 104.
1)
1)
:
s
9 - 101
