Raise Axle - Manitowoc Grove GMK6300L Operating Manual

9.2.9
Outrigger control
units
Operating Manual GMK6300L

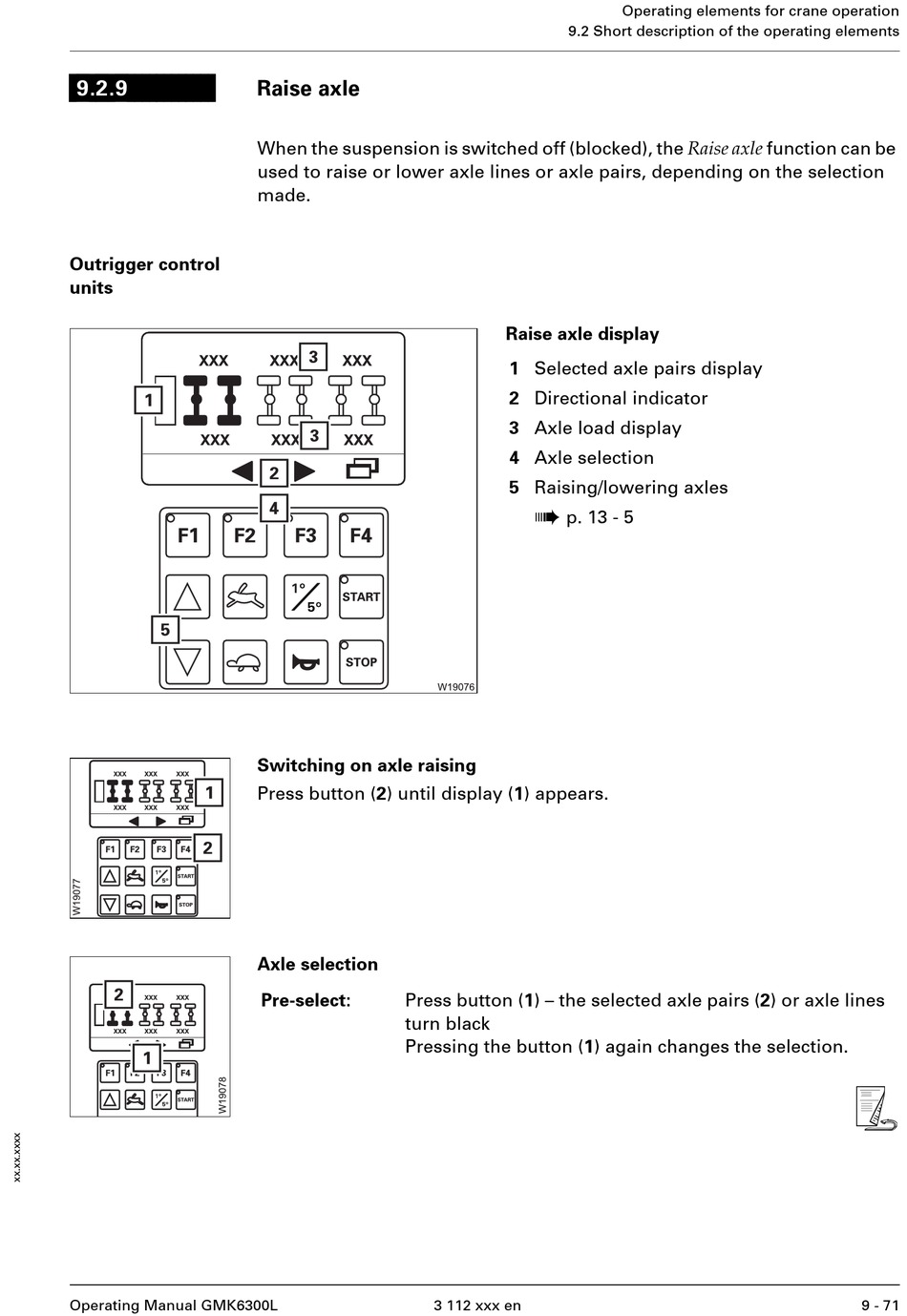

Raise axle

When the suspension is switched off (blocked), the Raise axle function can be
used to raise or lower axle lines or axle pairs, depending on the selection
made.
Switching on axle raising
Press button (2) until display (1) appears.
Axle selection
Pre-select: Press button (1) – the selected axle pairs (2) or axle lines
turn black
Pressing the button (1) again changes the selection.
9.2 Short description of the operating elements
Raise axle display
1 Selected axle pairs display
2 Directional indicator
3 Axle load display
4 Axle selection
5 Raising/lowering axles
à
p. 13 - 5
3 112 xxx en
