Manitowoc Grove GMK6300L Operating Manual page 878

Rigging work
12.9 Other rigging work

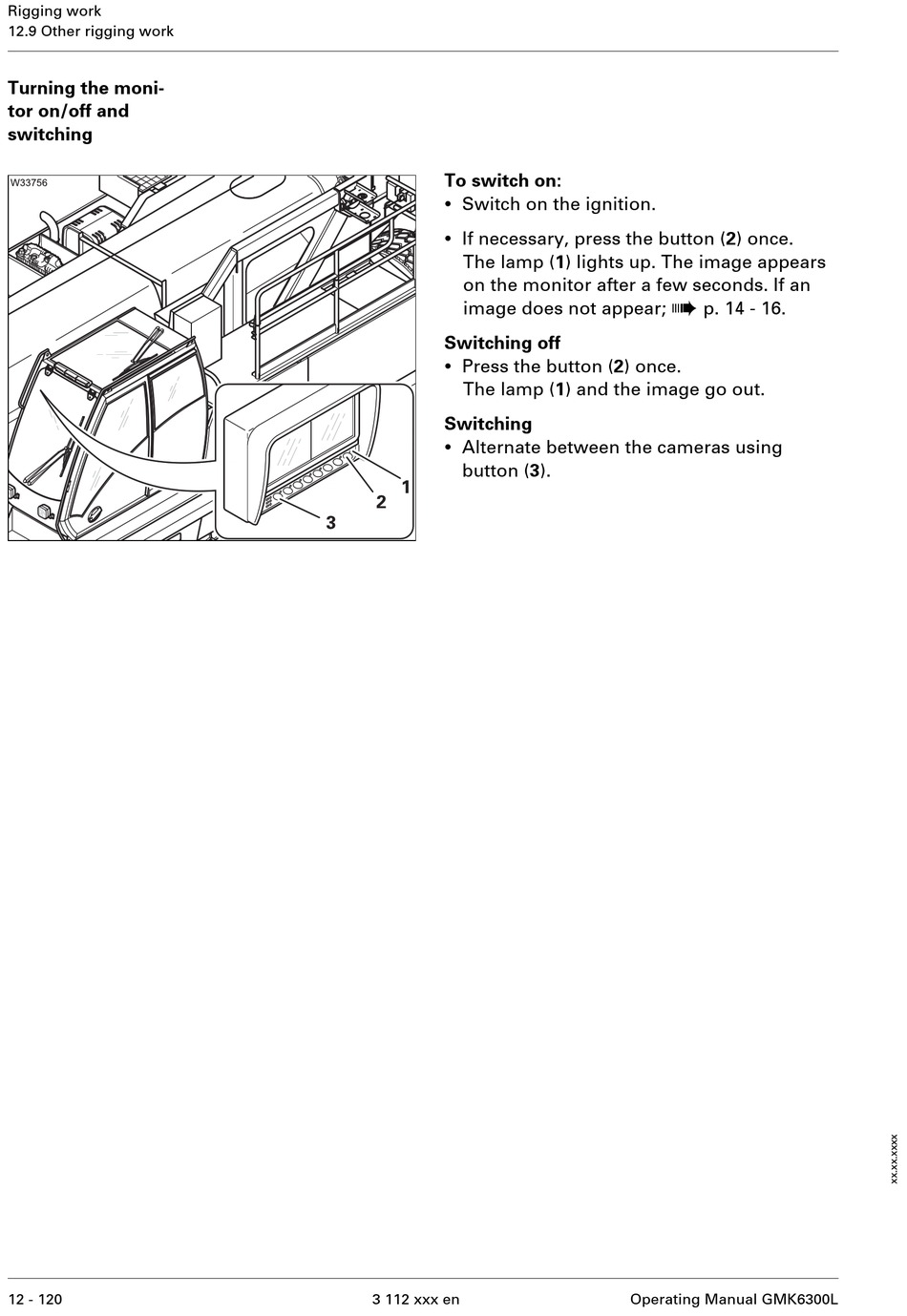

Turning the moni-
tor on/off and
switching
12 - 120
To switch on:
•
Switch on the ignition.
•
If necessary, press the button (2) once.
The lamp (1) lights up. The image appears
on the monitor after a few seconds. If an
image does not appear;
Switching off
•
Press the button (2) once.
The lamp (1) and the image go out.
Switching
•
Alternate between the cameras using
button (3).
3 112 xxx en
à
p. 14 - 16.
Operating Manual GMK6300L
