Driving modes
6.5 Installing/removing outrigger beams
6.5.1
H
6 - 48

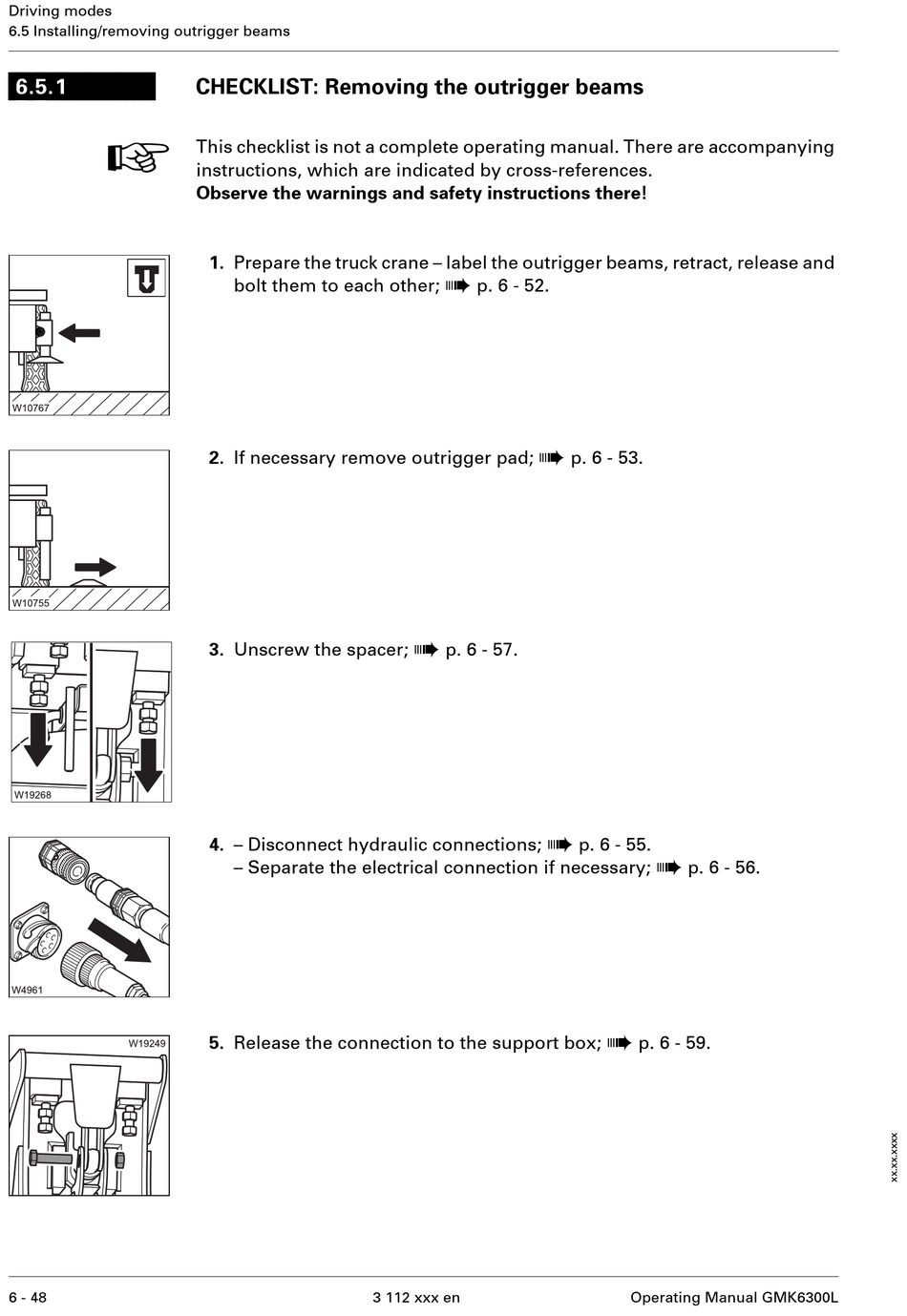

CHECKLIST: Removing the outrigger beams

This checklist is not a complete operating manual. There are accompanying
instructions, which are indicated by cross-references.
Observe the warnings and safety instructions there!
1. Prepare the truck crane – label the outrigger beams, retract, release and
bolt them to each other;
2. If necessary remove outrigger pad;
3. Unscrew the spacer;
4. – Disconnect hydraulic connections;
– Separate the electrical connection if necessary;
5. Release the connection to the support box;
à
p. 6 - 52.
à
à
p. 6 - 57.
3 112 xxx en
p. 6 - 53.
à
p. 6 - 55.
à
p. 6 - 56.
à
p. 6 - 59.
Operating Manual GMK6300L
