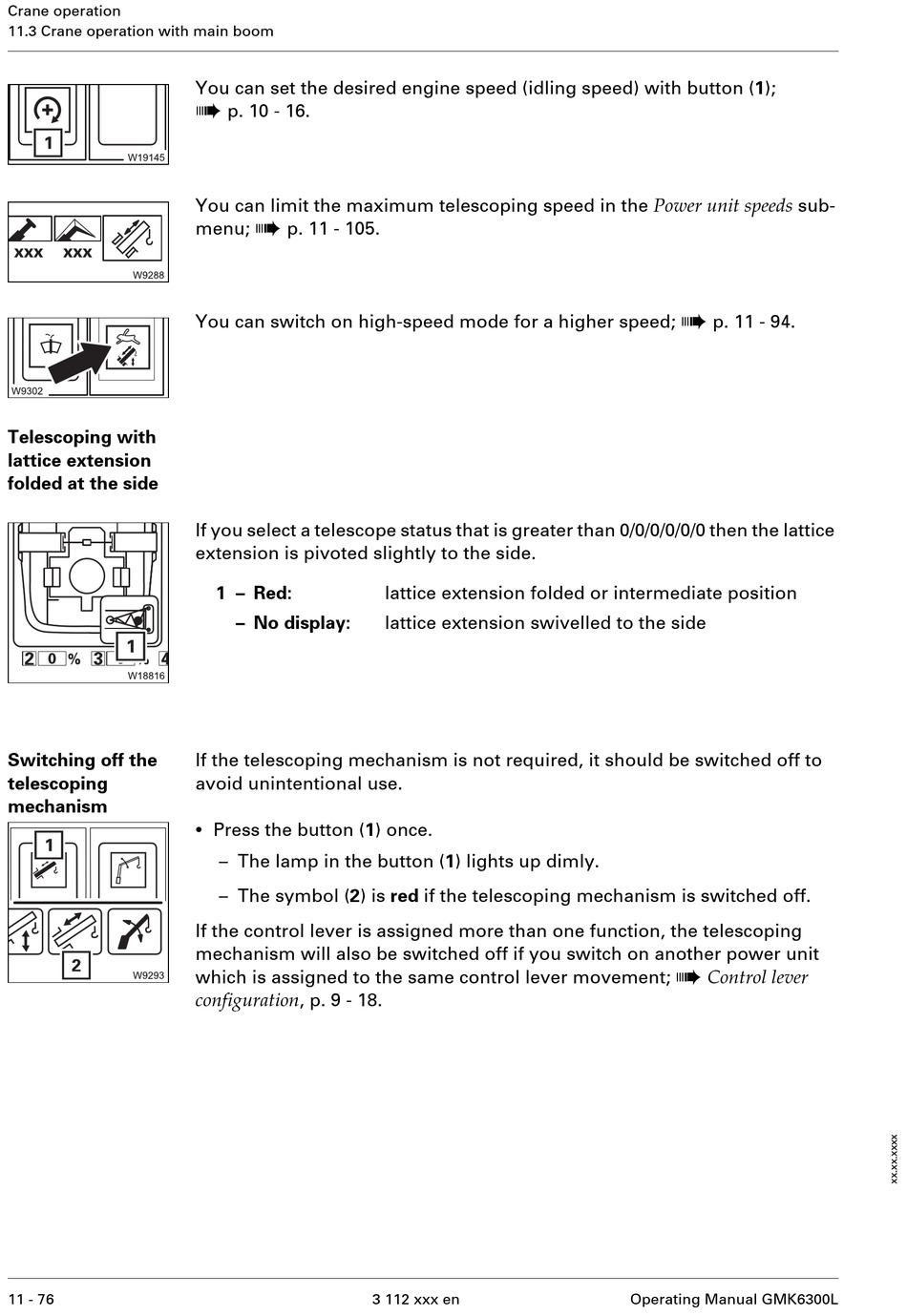

Crane operation
11.3 Crane operation with main boom
Telescoping with
lattice extension
folded at the side
Switching off the
telescoping
mechanism
11 - 76
You can set the desired engine speed (idling speed) with button (1);
à
p. 10 - 16.
You can limit the maximum telescoping speed in the Power unit speeds sub-
à
menu; p. 11 - 105.
You can switch on high-speed mode for a higher speed;
If you select a telescope status that is greater than 0/0/0/0/0/0 then the lattice
extension is pivoted slightly to the side.
1 – Red:
– No display:
If the telescoping mechanism is not required, it should be switched off to
avoid unintentional use.
•
Press the button (1) once.
– The lamp in the button (1) lights up dimly.
– The symbol (2) is red if the telescoping mechanism is switched off.
If the control lever is assigned more than one function, the telescoping
mechanism will also be switched off if you switch on another power unit
which is assigned to the same control lever movement;
configuration , p. 9 - 18.
lattice extension folded or intermediate position
lattice extension swivelled to the side
3 112 xxx en
à
p. 11 - 94.
à
Control lever
