Driving modes

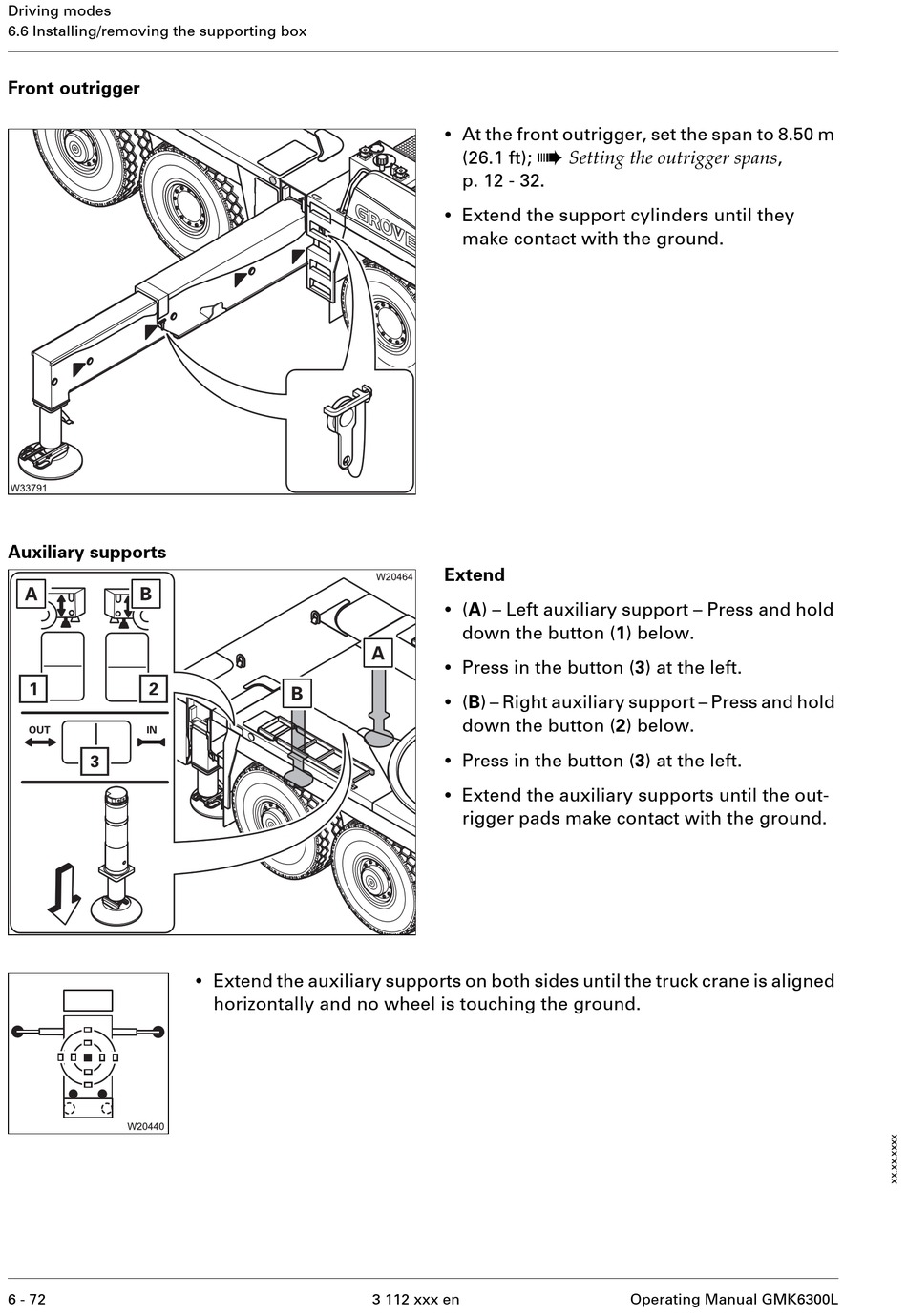

6.6 Installing/removing the supporting box
Front outrigger
Auxiliary supports
6 - 72
•
Extend the auxiliary supports on both sides until the truck crane is aligned
horizontally and no wheel is touching the ground.
•
At the front outrigger, set the span to 8.50 m
à
(26.1 ft);
p. 12 - 32.
•
Extend the support cylinders until they
make contact with the ground.
Extend
•
(A) – Left auxiliary support – Press and hold
down the button (1) below.
•
Press in the button (3) at the left.
•
(B) – Right auxiliary support – Press and hold
down the button (2) below.
•
Press in the button (3) at the left.
•
Extend the auxiliary supports until the out-
rigger pads make contact with the ground.
3 112 xxx en
Setting the outrigger spans ,
