Driving modes

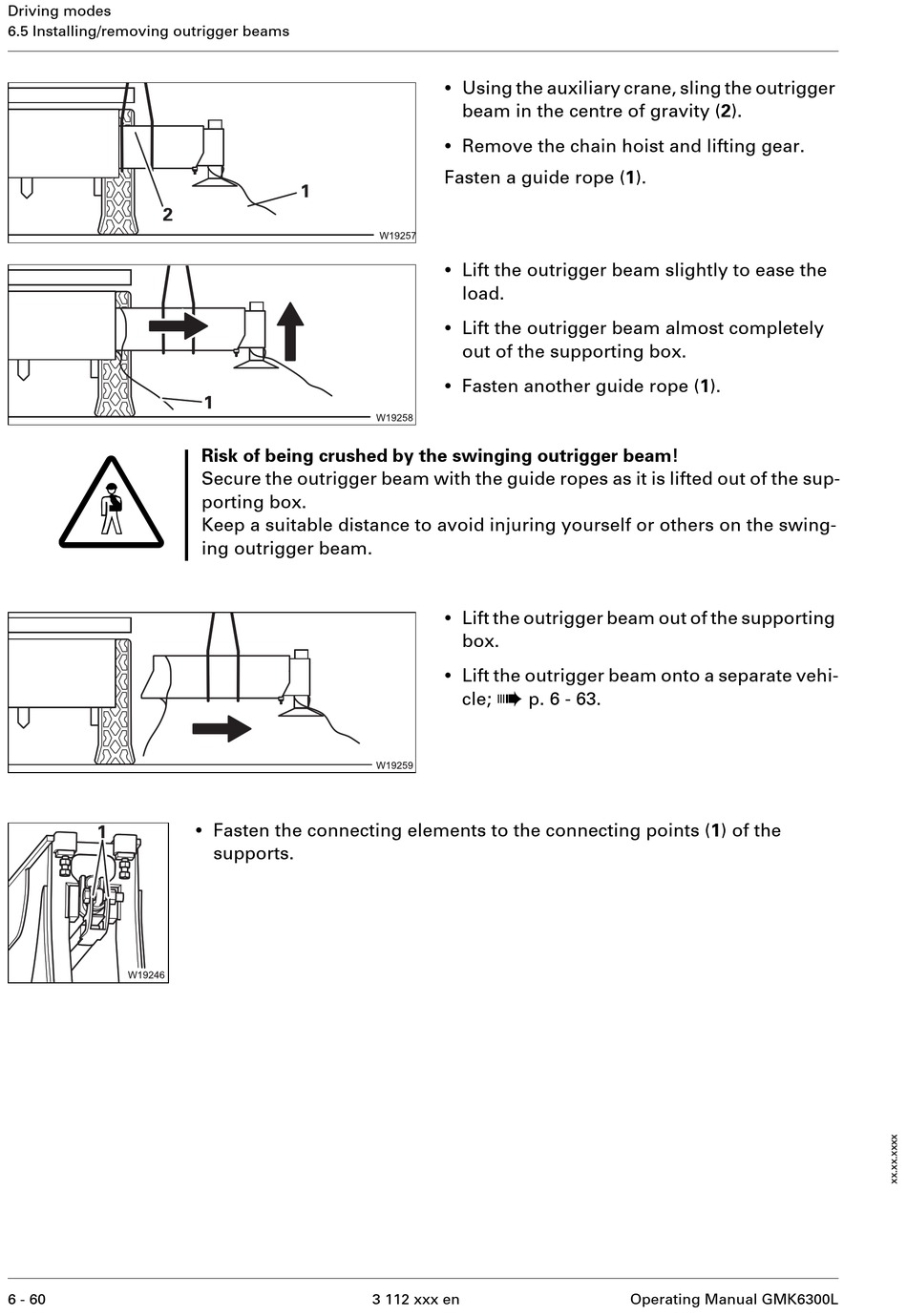

6.5 Installing/removing outrigger beams
G
6 - 60
Risk of being crushed by the swinging outrigger beam!
Secure the outrigger beam with the guide ropes as it is lifted out of the sup-
porting box.
Keep a suitable distance to avoid injuring yourself or others on the swing-
ing outrigger beam.
•
Fasten the connecting elements to the connecting points (1) of the
supports.
•
Using the auxiliary crane, sling the outrigger
beam in the centre of gravity (2).
•
Remove the chain hoist and lifting gear.
Fasten a guide rope (1).
•
Lift the outrigger beam slightly to ease the
load.
•
Lift the outrigger beam almost completely
out of the supporting box.
•
Fasten another guide rope (1).
•
Lift the outrigger beam out of the supporting
box.
•
Lift the outrigger beam onto a separate vehi-
à
cle; p. 6 - 63.
