6.6.5
S
Operating Manual GMK6300L

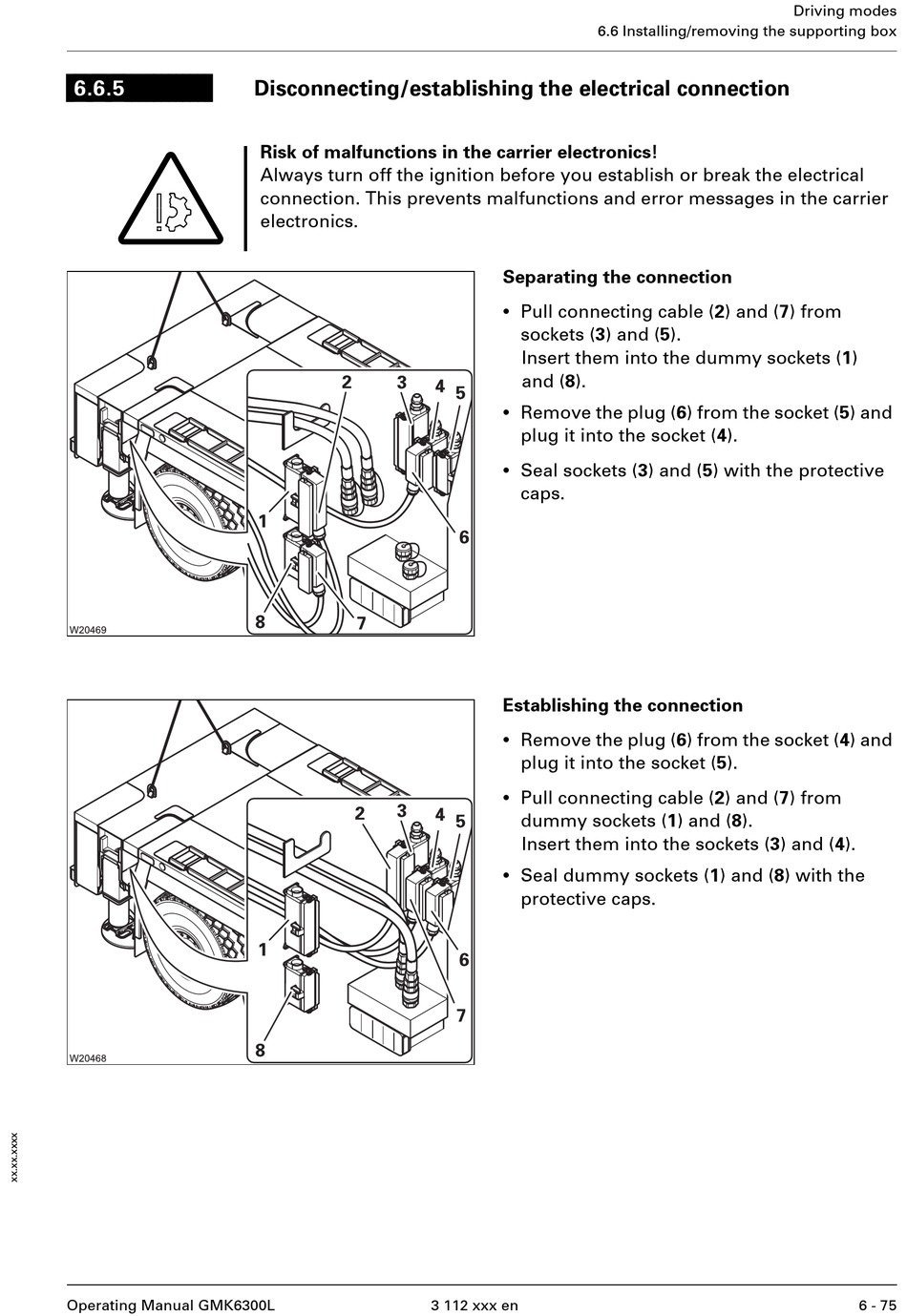

Disconnecting/establishing the electrical connection

Risk of malfunctions in the carrier electronics!
Always turn off the ignition before you establish or break the electrical
connection. This prevents malfunctions and error messages in the carrier
electronics.
6.6 Installing/removing the supporting box
Separating the connection
•
Pull connecting cable (2) and (7) from
sockets (3) and (5).
Insert them into the dummy sockets (1)
and (8).
•
Remove the plug (6) from the socket (5) and
plug it into the socket (4).
•
Seal sockets (3) and (5) with the protective
caps.
Establishing the connection
•
Remove the plug (6) from the socket (4) and
plug it into the socket (5).
•
Pull connecting cable (2) and (7) from
dummy sockets (1) and (8).
Insert them into the sockets (3) and (4).
•
Seal dummy sockets (1) and (8) with the
protective caps.
3 112 xxx en
Driving modes
6 - 75
