12.6
G
12.6.1
H
Operating Manual GMK6300L

Outriggers

Danger of crushing from extending outrigger beams!
You may only activate the outriggers if you yourself or a banksman with
whom you are in visual contact have an unobstructed view of their move-
ments.

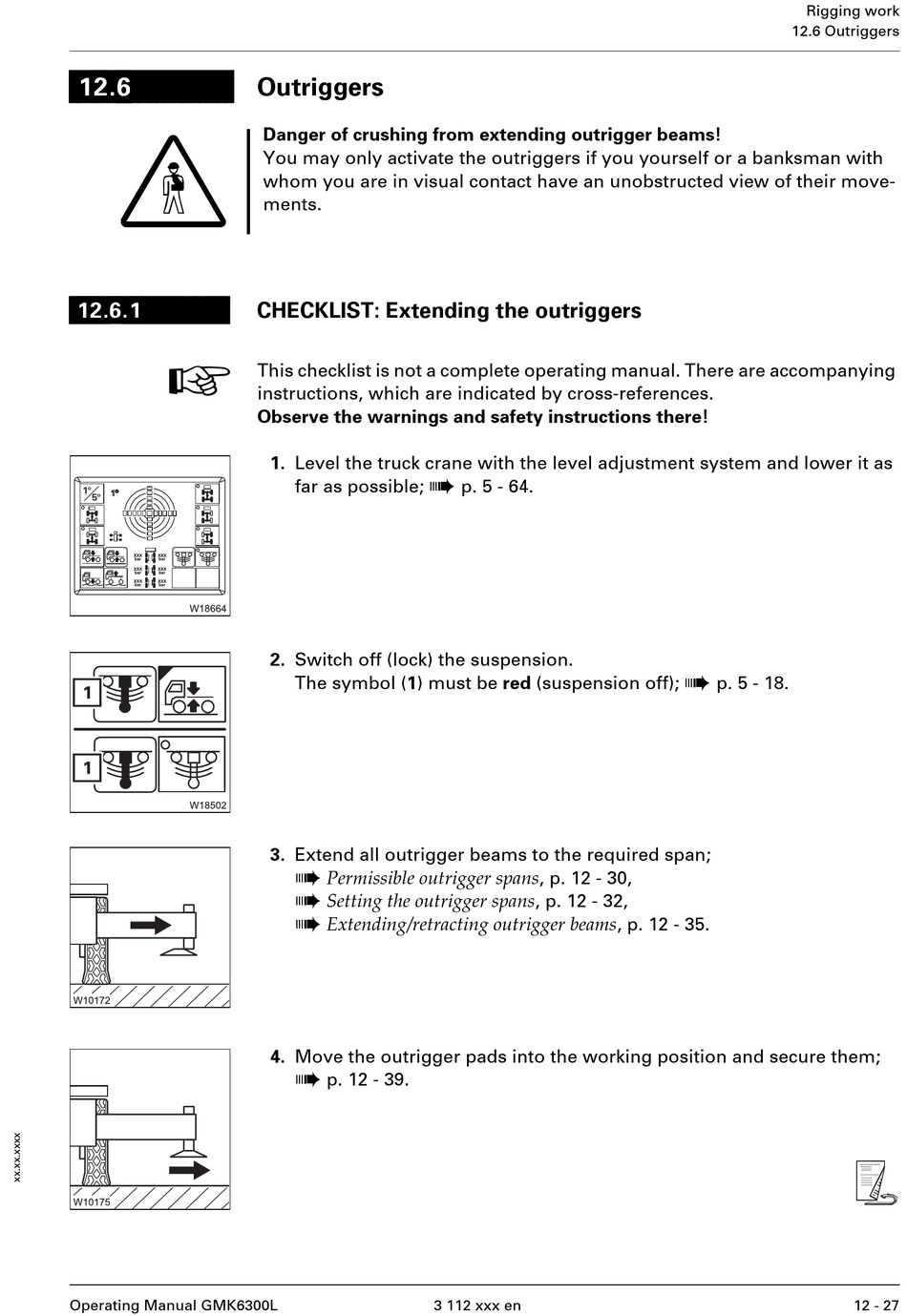

CHECKLIST: Extending the outriggers

This checklist is not a complete operating manual. There are accompanying
instructions, which are indicated by cross-references.
Observe the warnings and safety instructions there!
1. Level the truck crane with the level adjustment system and lower it as
far as possible;
2. Switch off (lock) the suspension.
The symbol (1) must be red (suspension off);
3. Extend all outrigger beams to the required span;
à
Permissible outrigger spans , p. 12 - 30,
à
Setting the outrigger spans , p. 12 - 32,
à
Extending/retracting outrigger beams , p. 12 - 35.
4. Move the outrigger pads into the working position and secure them;
à
p. 12 - 39.
à
p. 5 - 64.
3 112 xxx en
Rigging work
12.6 Outriggers
à
p. 5 - 18.
12 - 27
