14.3.3
S

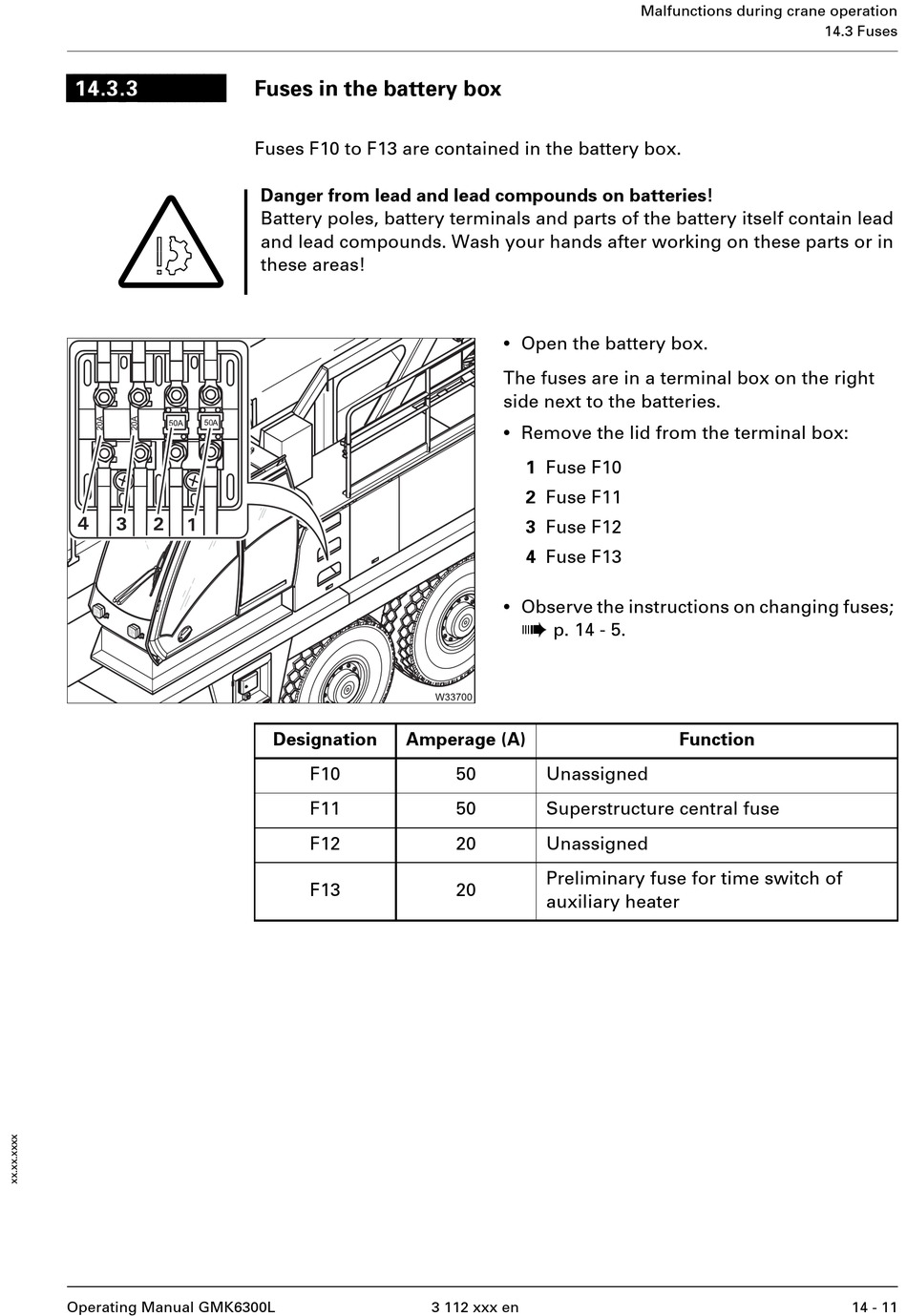

Operating Manual GMK6300L

Fuses in the battery box

Fuses F10 to F13 are contained in the battery box.
Danger from lead and lead compounds on batteries!
Battery poles, battery terminals and parts of the battery itself contain lead
and lead compounds. Wash your hands after working on these parts or in
these areas!
Designation Amperage (A)
F10
F11
F12
F13
•
Open the battery box.
The fuses are in a terminal box on the right
side next to the batteries.
•
Remove the lid from the terminal box:
1 Fuse F10
2 Fuse F11
3 Fuse F12
4 Fuse F13
•
Observe the instructions on changing fuses;
à
p. 14 - 5.
50 Unassigned
50 Superstructure central fuse
20 Unassigned
Preliminary fuse for time switch of
20
auxiliary heater
