Slewing angle
Operating Manual GMK6300L

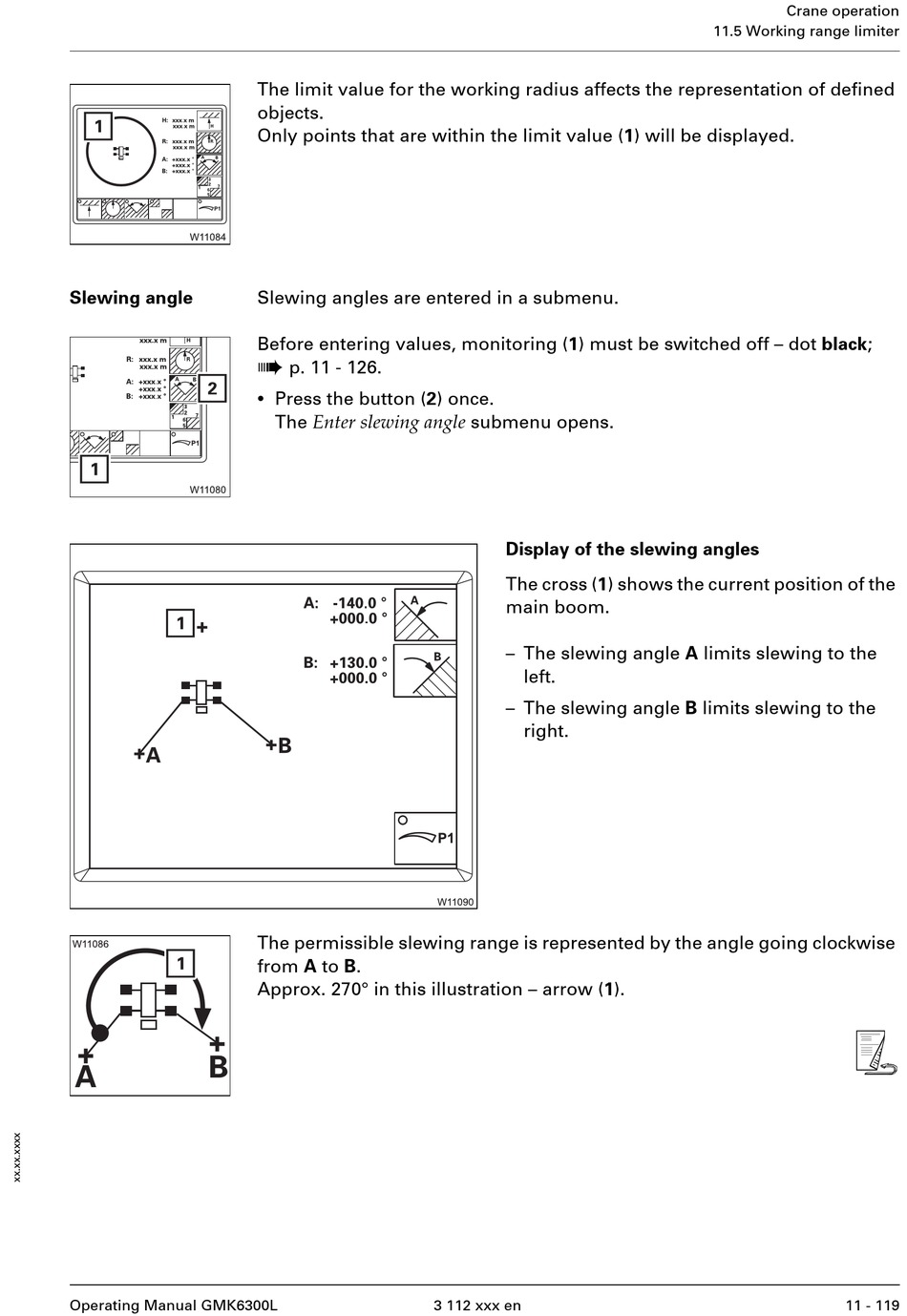

The limit value for the working radius affects the representation of defined
objects.
Only points that are within the limit value (1) will be displayed.
Slewing angles are entered in a submenu.
Before entering values, monitoring (1) must be switched off – dot black;
à
p. 11 - 126.
•
Press the button (2) once.
The Enter slewing angle submenu opens.
The permissible slewing range is represented by the angle going clockwise
from A to B.
Approx. 270° in this illustration – arrow (1).
Display of the slewing angles
The cross (1) shows the current position of the
main boom.
– The slewing angle A limits slewing to the
left.
– The slewing angle B limits slewing to the
right.
3 112 xxx en
Crane operation
11.5 Working range limiter
s
11 - 119
