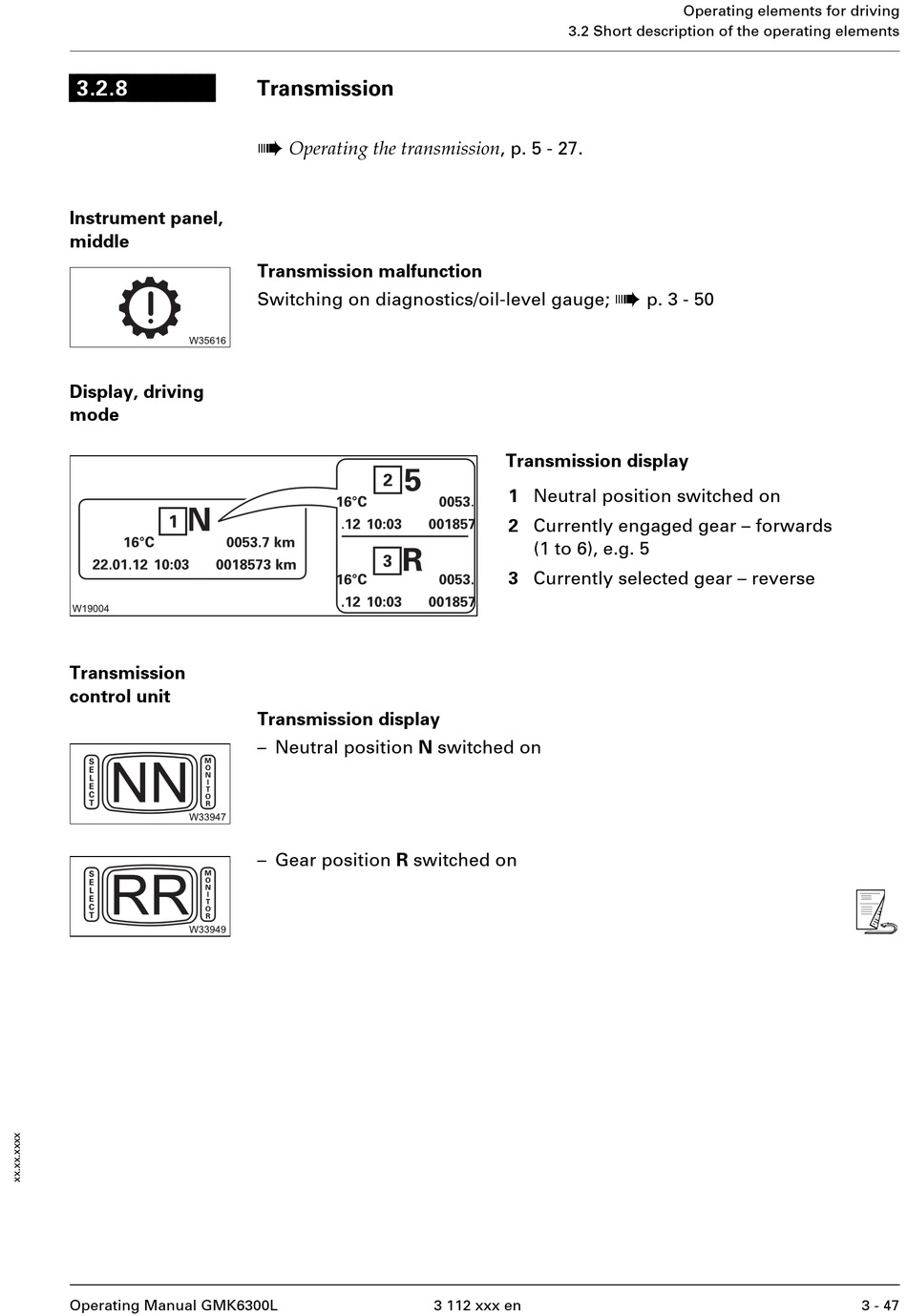

3.2.8
Instrument panel,
middle
Display, driving
mode

Transmission

control unit
Operating Manual GMK6300L
Transmission
à
Operating the transmission , p. 5 - 27.
Transmission malfunction
Switching on diagnostics/oil-level gauge;
Transmission display
– Neutral position N switched on
– Gear position R switched on
3.2 Short description of the operating elements
Transmission display
1 Neutral position switched on
2 Currently engaged gear – forwards
(1 to 6), e.g. 5
3 Currently selected gear – reverse
3 112 xxx en
Operating elements for driving
à
p. 3 - 50
s
3 - 47
