Establishing/disconnecting the electrical connection

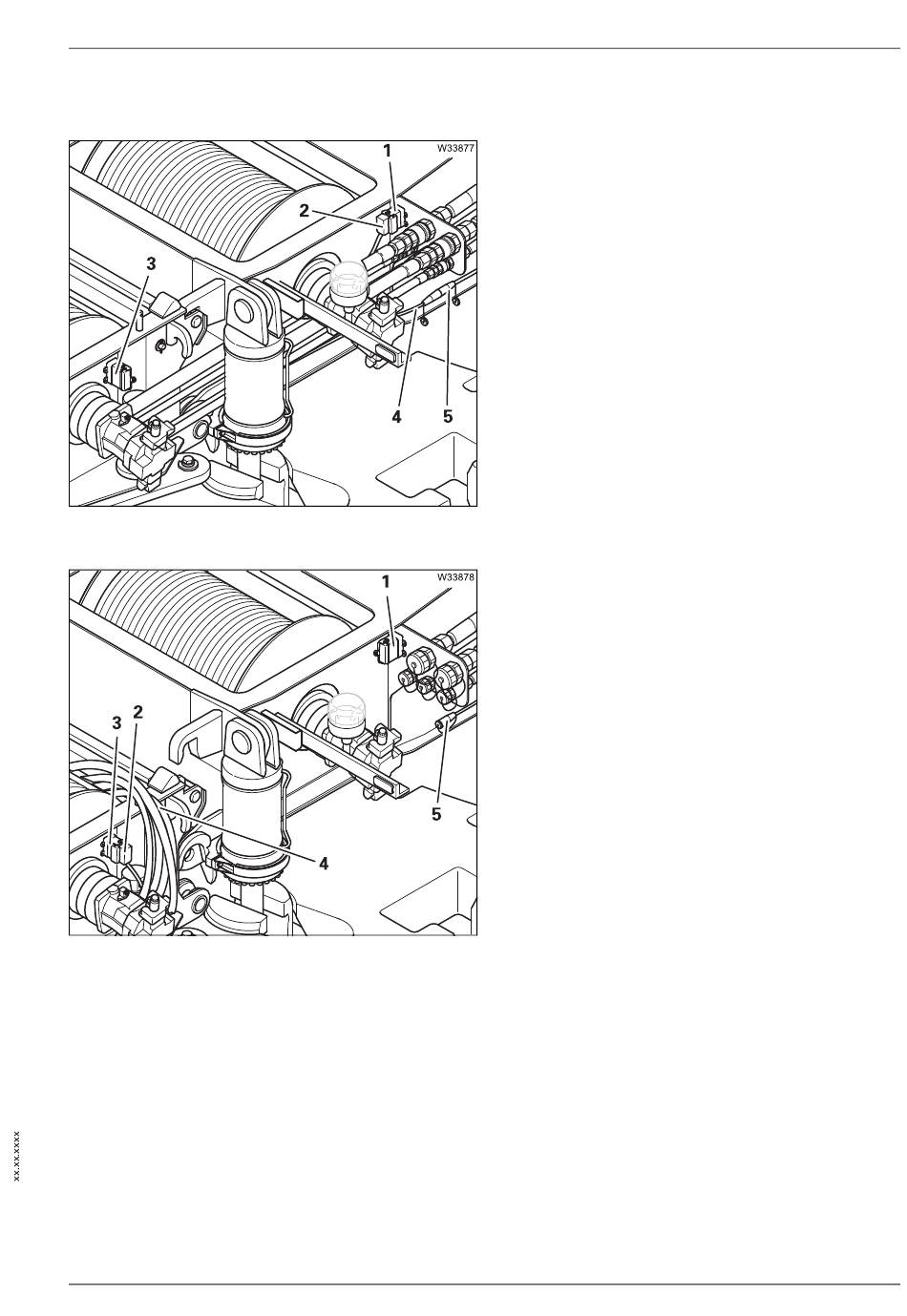

Establishing the connection
•
Remove the plug (2) from the dummy
socket (3) and insert it in the socket (1).
•
Close the dummy socket (3).
•
Insert the cable (4) for the hoist camera into
the socket (5).
Separating the connection
•
Remove the plug (2) from the socket (1) and
plug it into the dummy socket (3).
•
Close the socket (1).
•
Remove the cable (4) for the hoist camera
from the socket (5).
•
Cover the plug and socket with caps.
•
Lay the cable (4) so that it is not damaged
during transport.
