ELECTRIC SYSTEM

Wire Harnesses

Four wire harnesses connect the electrical system
components:
• Dash Wire Harness
• Main Frame Wire Harness
• Engine Wire Harness (Diesel)
• Engine Wire Harness (Gasoline/Dual Fuel)

Fuses

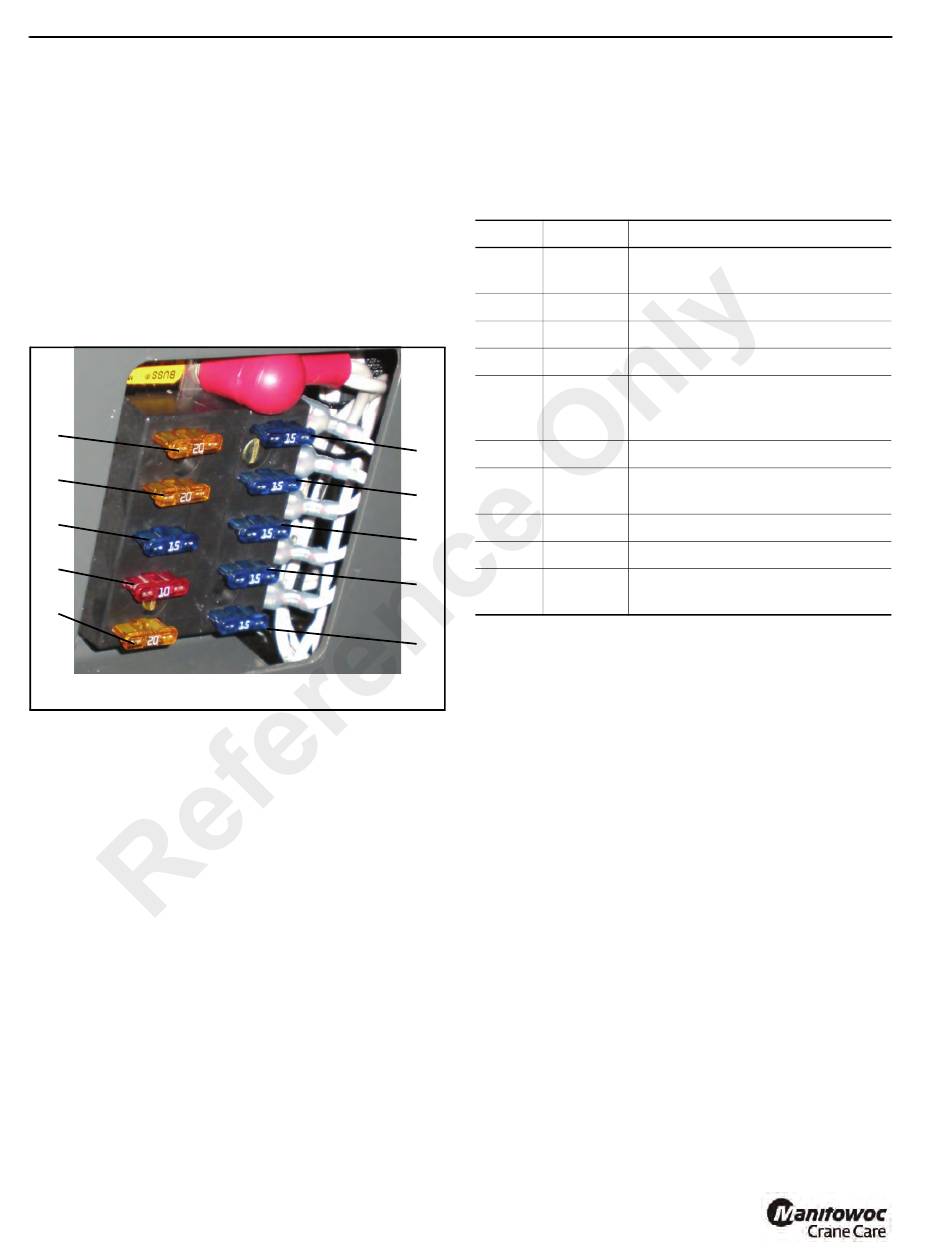

The fuses are located for easy access directly below the
instrument panel. See Figure 3-1.
F
G
H
I
J
7227
3-2
Identification of the fuse ratings and the circuits protected is
shown in Table 3-2. Always replace the fuse with one of the
same rating.
Table 3-2
Fuse Ratings
FUSE
A
B
C
D
E
A
F
B G
H
C
I
D
J
E
FIGURE 3-1
Published 10-21-2010, Control# 198-04
5540F/YB5515 SERVICE MANUAL
RATING FUNCTION CIRCUIT
Heater/Defroster, Strobe Light,
15 amp
Gauges
15 amp Windshield Wiper
15 amp Horn, Parking Brake, Cold Start
15 amp Winch Control, 4 Wheel Steer
Brake Lights, fuel shut-off (diesel
15 amp engine) or spark ignition coil
(gasoline engine), alternator
20 amp Anti-Two Blocking, LM2
Warning Lights, Turn Signal Lights,
20 amp
and Flasher, Auto Lockout
15 amp Park Brakes
10 amp Steering Circuit
Head and Tail Lights, Dash Lights,
20 amp
Boom Lights
