4. REPLACING THE O-RING ON PARKING PAWL GUIDE SLEEVE

Preceding Works: Removing valve body
When the oil is leaking due to wear or hardening of O-ring on the parking pawl guide sleeve, the O-ring should be
replaced with new one.

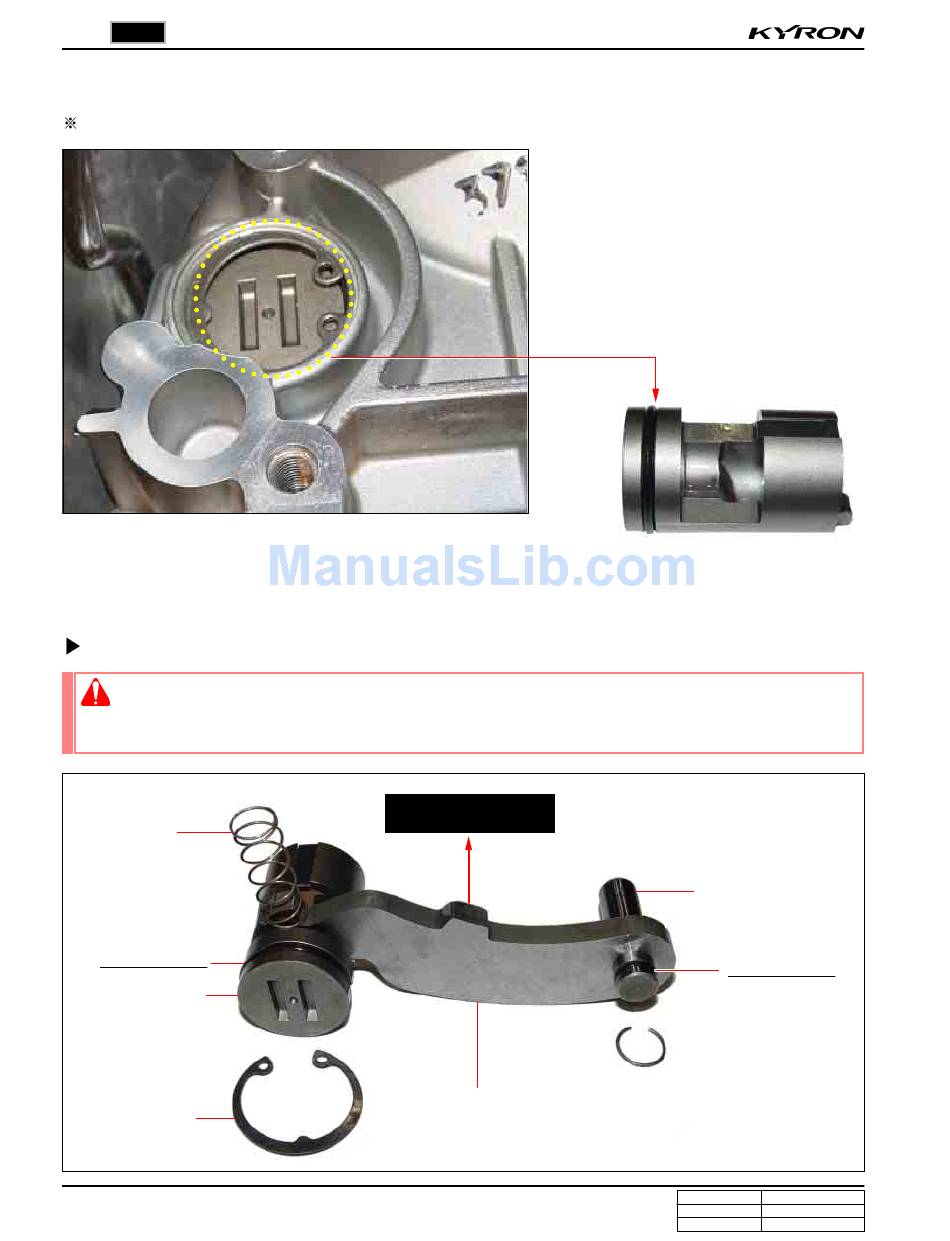

Parking Pawl Guide Sleeve
NOTICE
• Once the O-rings have been removed on the parking pawl guide sleeve and the guide bushing, replace them
with new ones.
Spring
Rubber O-ring
Parking pawl
guide Sleeve
Snap ring
AUTO TRANSMISSION
KYRON SM - 2005.09
Connected to parking
lock gear
Parking lock
lever
Guide bushing
Rubber O-ring
Snap ring
