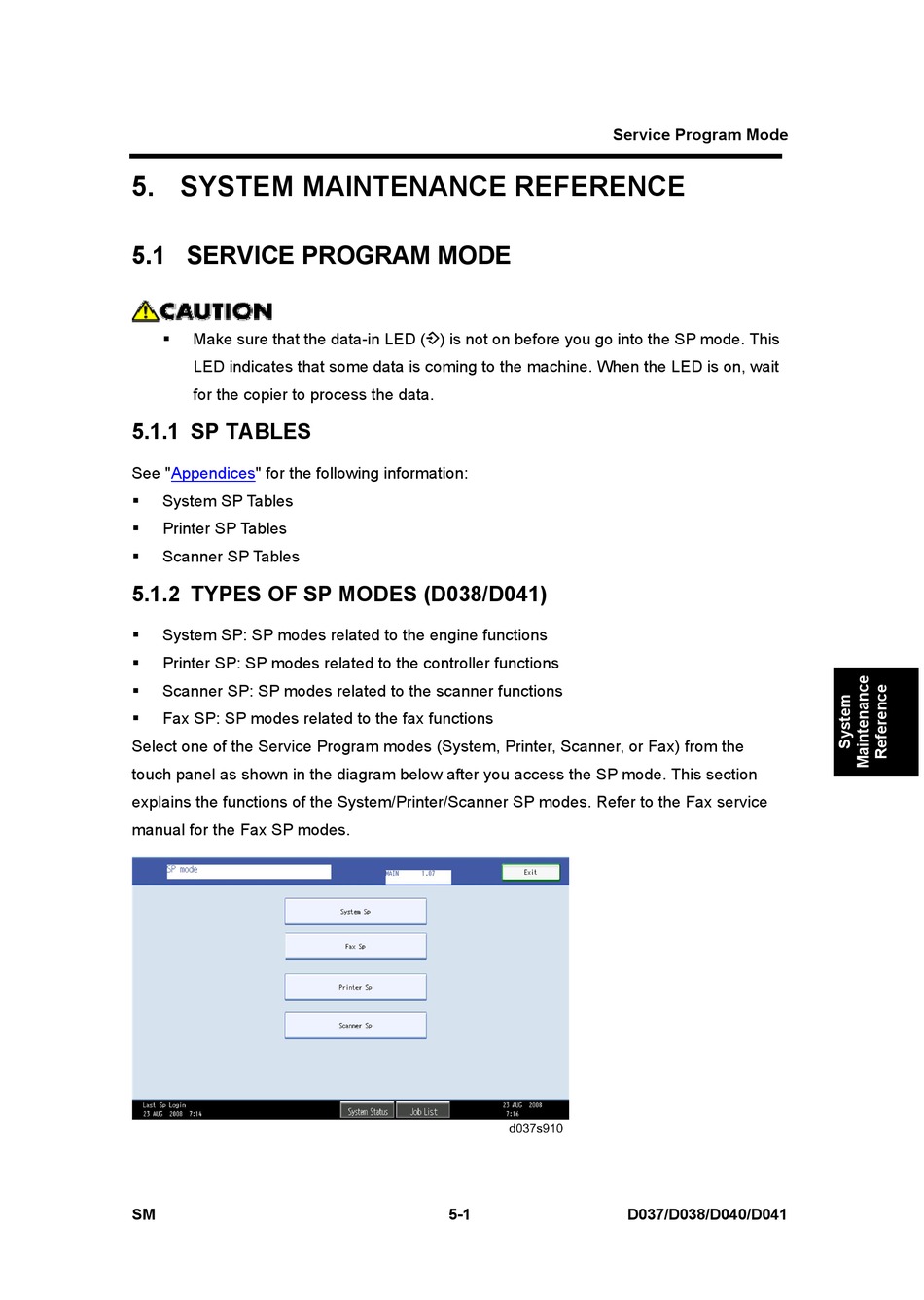

5. SYSTEM MAINTENANCE REFERENCE

5.1 SERVICE PROGRAM MODE
Make sure that the data-in LED () is not on before you go into the SP mode. This
LED indicates that some data is coming to the machine. When the LED is on, wait
for the copier to process the data.
5.1.1 SP TABLES
See "Appendices" for the following information:
System SP Tables
Printer SP Tables
Scanner SP Tables
5.1.2 TYPES OF SP MODES (D038/D041)
System SP: SP modes related to the engine functions
Printer SP: SP modes related to the controller functions
Scanner SP: SP modes related to the scanner functions
Fax SP: SP modes related to the fax functions
Select one of the Service Program modes (System, Printer, Scanner, or Fax) from the
touch panel as shown in the diagram below after you access the SP mode. This section
explains the functions of the System/Printer/Scanner SP modes. Refer to the Fax service
manual for the Fax SP modes.
SM
Service Program Mode
5-1 D037/D038/D040/D041
