Controller Options
1. Remove the I/F-slot cover [A] from the I/F-slot (
2. Install the wireless LAN board [B] (Knob-screw x 2) into the I/F-slot.
3. Make sure that the machine can recognize the option (see 'Check All Connections' at
the end of this section).

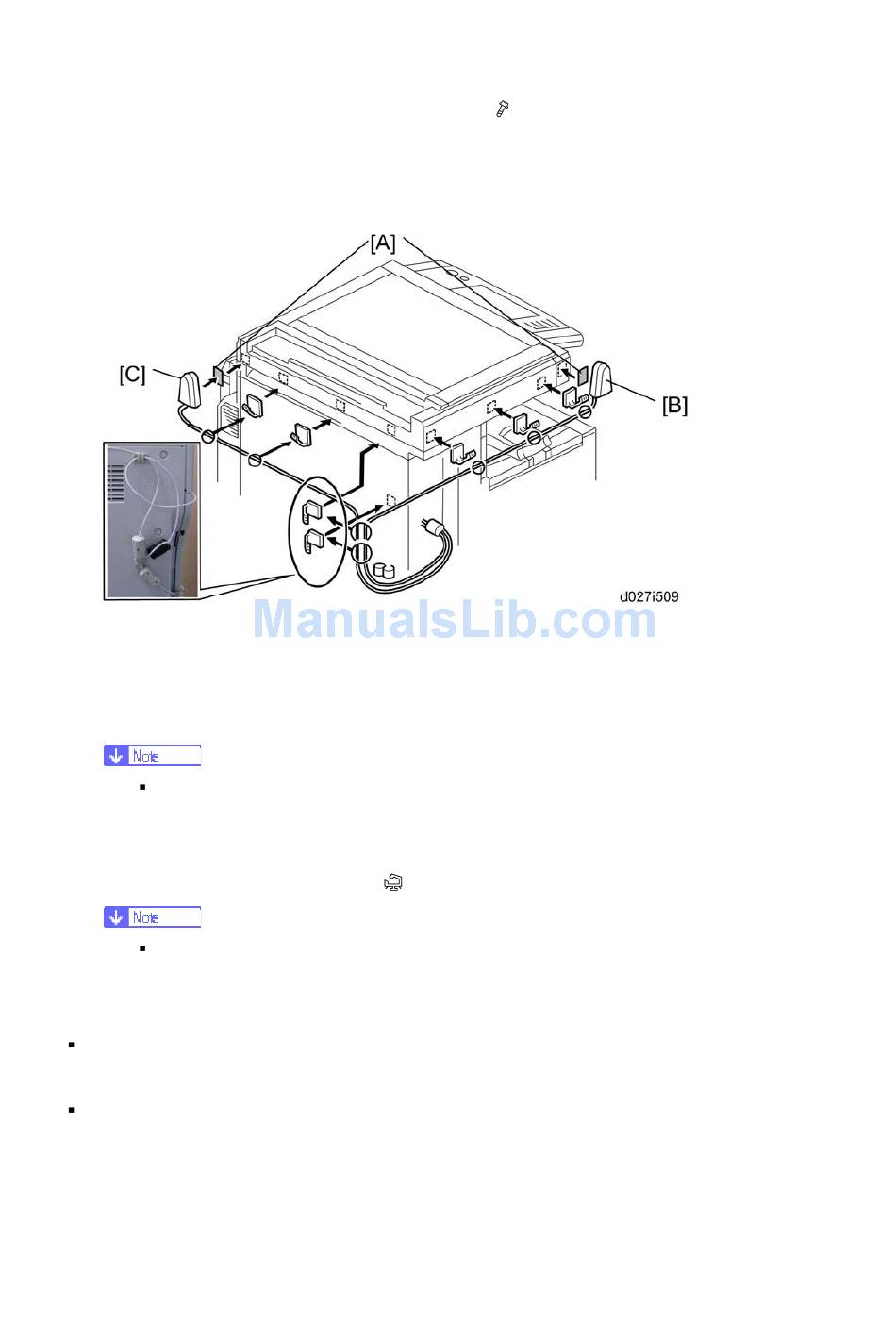

4. Peel off the double-sided tapes on the Velcro fasteners [A], and then attach them at the
front left and rear left of the machine.
5. Attach "ANT1" (having a black ferrite core) [B] to the front left of the machine.
6. Attach "ANT2" (having a white ferrite core) [C] to the rear right of the machine.
"ANT1" is a transmission/reception antenna and "ANT2" is a reception
antenna. Do not attach them at the wrong places.
7. Attach the clamps as shown above.
8. Wire the cables and clamp them (
Make sure that the cables are not slack. Keep them wired tightly along the
covers.
You may have to move the machine if the reception is not clear.
Make sure that the machine is not located near an appliance or any type of equipment
that generates strong magnetic fields.
Put the machine as close as possible to the access point.
