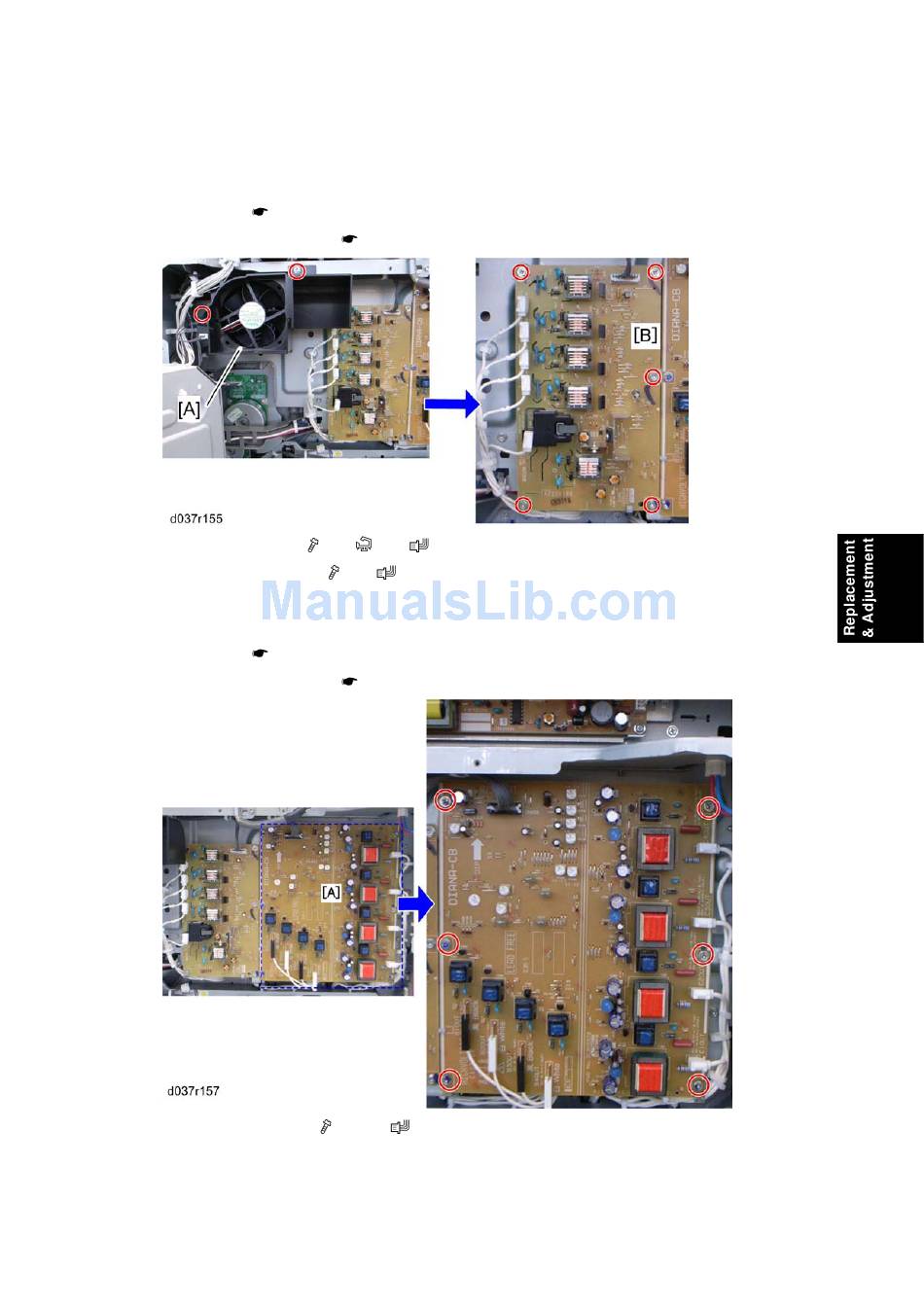

4.15.9 HVPS: TTS BOARD

1. Rear cover ( Section: Rear Cover)
2. Open the controller box (
3. Fusing rear fan [A] (
4. HVPS: TTS board [B] (
4.15.10 HVPS: CB BOARD
1. Rear cover ( Section: Rear Cover)
2. Open the controller box (
3. HVPS: CB board [A] (
SM
Section: Controller Box)
x 2, x 1, x 1)
x 5, x all)
Section: Controller Box)
x 6, All s)
4-133
Electrical Components
D037/D038/D040/D041
