Adjustment After Reinstalling The Gear Unit - Ricoh D037 Service Manual

Drive Unit
3. Open the controller box (

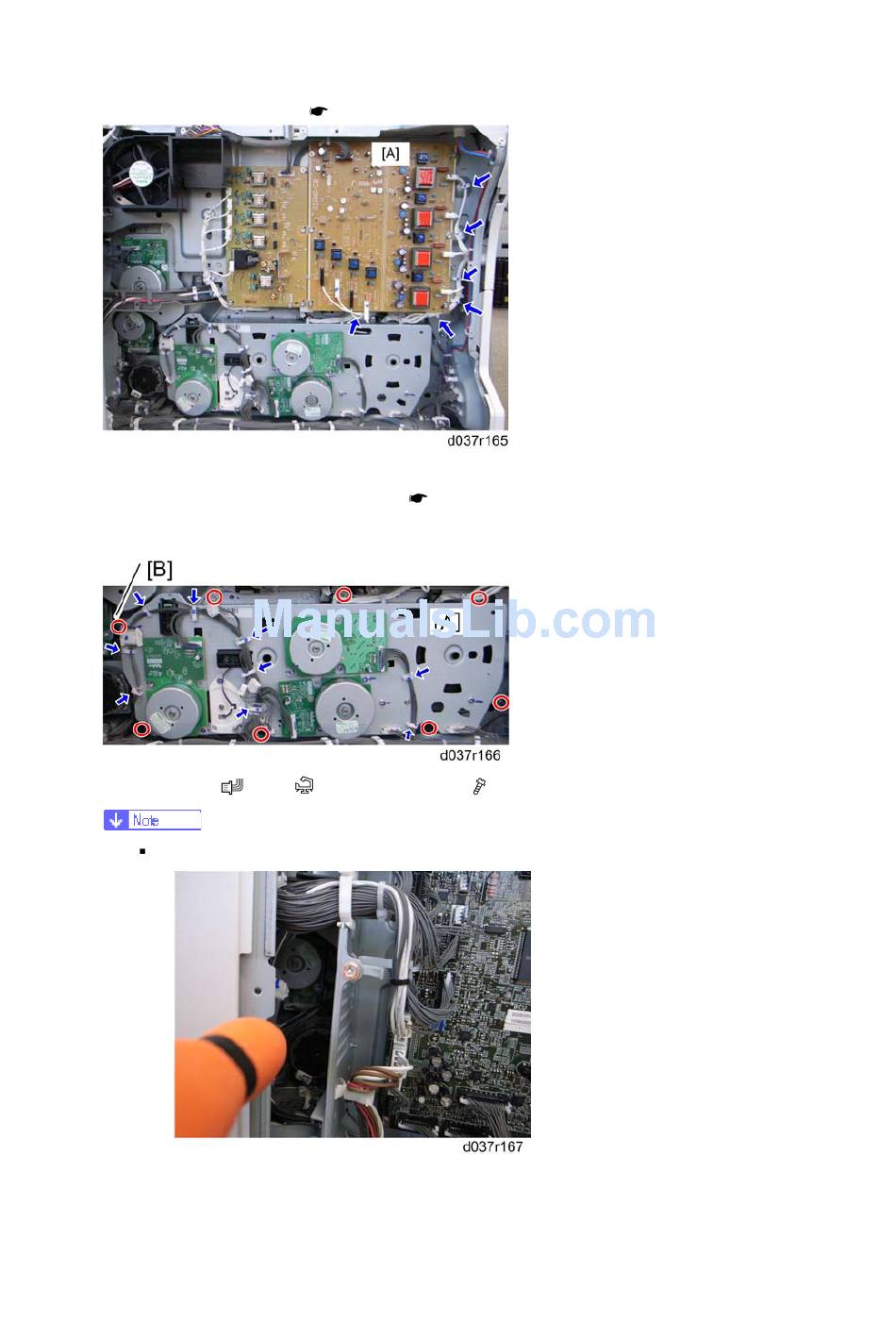

4. Remove all connectors and clamps (blue arrows) on the HVPS: CB board [A].
5. Pull all the PCDUs to the front side. (
Development Unit))
6. Gear unit [A] (
The picture below shows how to remove the screw [B] of the gear unit.

Adjustment after reinstalling the gear unit

Do the following procedures after reinstalling the gear unit.
1. Turn on the main power switch.
D037/D038/D040/D041
Section: Controller Box)
x all, x all: blue arrows,
Section: PCDU (Photo Conductor and
x 8)
4-74 SM
