Duplex Entrance Sensor - Ricoh D037 Service Manual

Duplex Unit

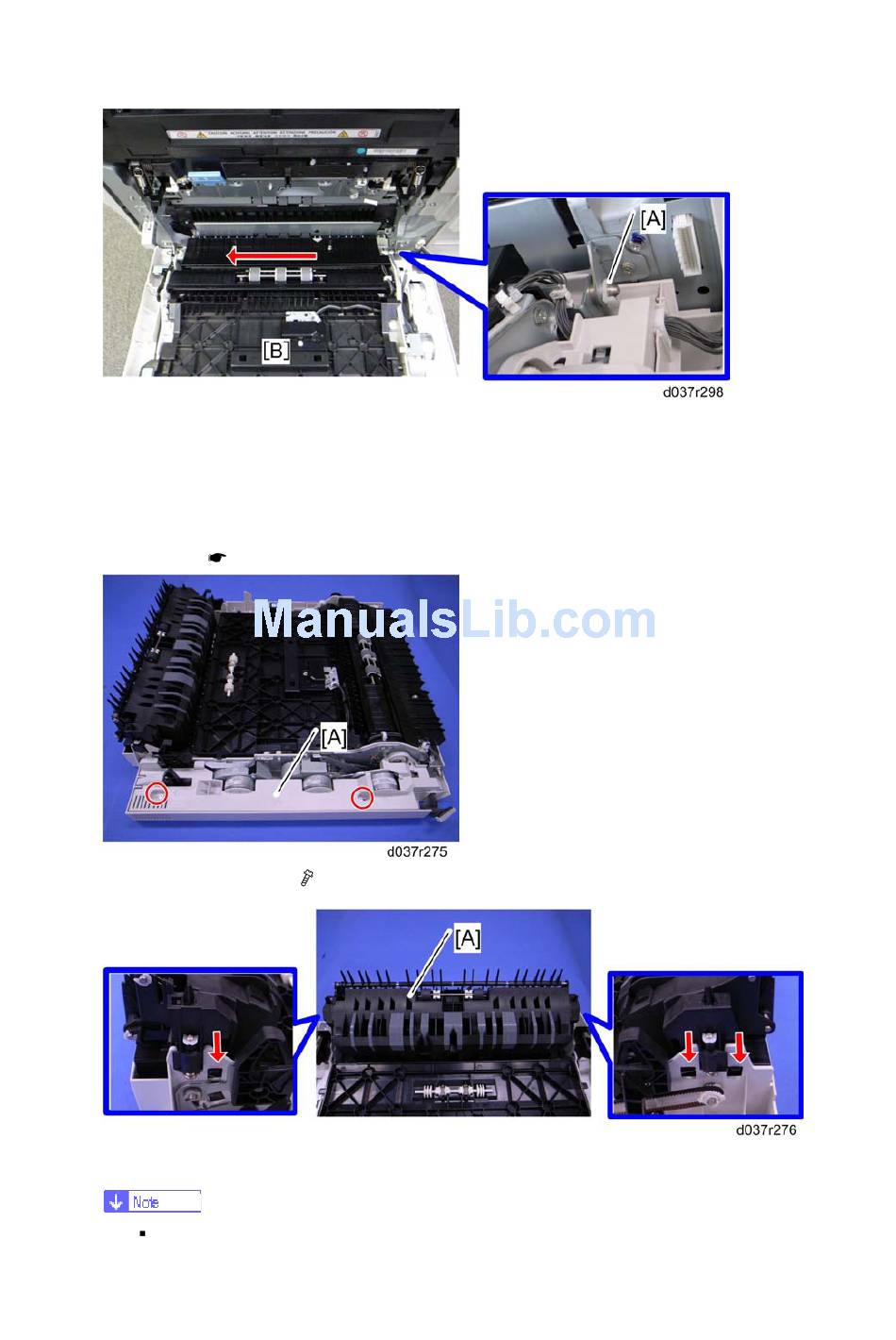

6. Remove the clip [A].
7. Slide the duplex unit [B] to the front side, and then remove it.

4.14.2 DUPLEX ENTRANCE SENSOR

1. Duplex unit ( Section: Duplex Unit)
2. Duplex inner cover [A] (
3. Duplex entrance guide unit [A] (hook x 3)
Lift up the duplex guide plate [A] first when reinstalling the duplex entrance
D037/D038/D040/D041
x 2)
4-116 SM
