2.20 TRAY HEATER (MAINFRAME)

2.20.1 INSTALLATION PROCEDURE

This heater is supplied as a spare part.
1. Remove trays 1 and 2 from the machine.

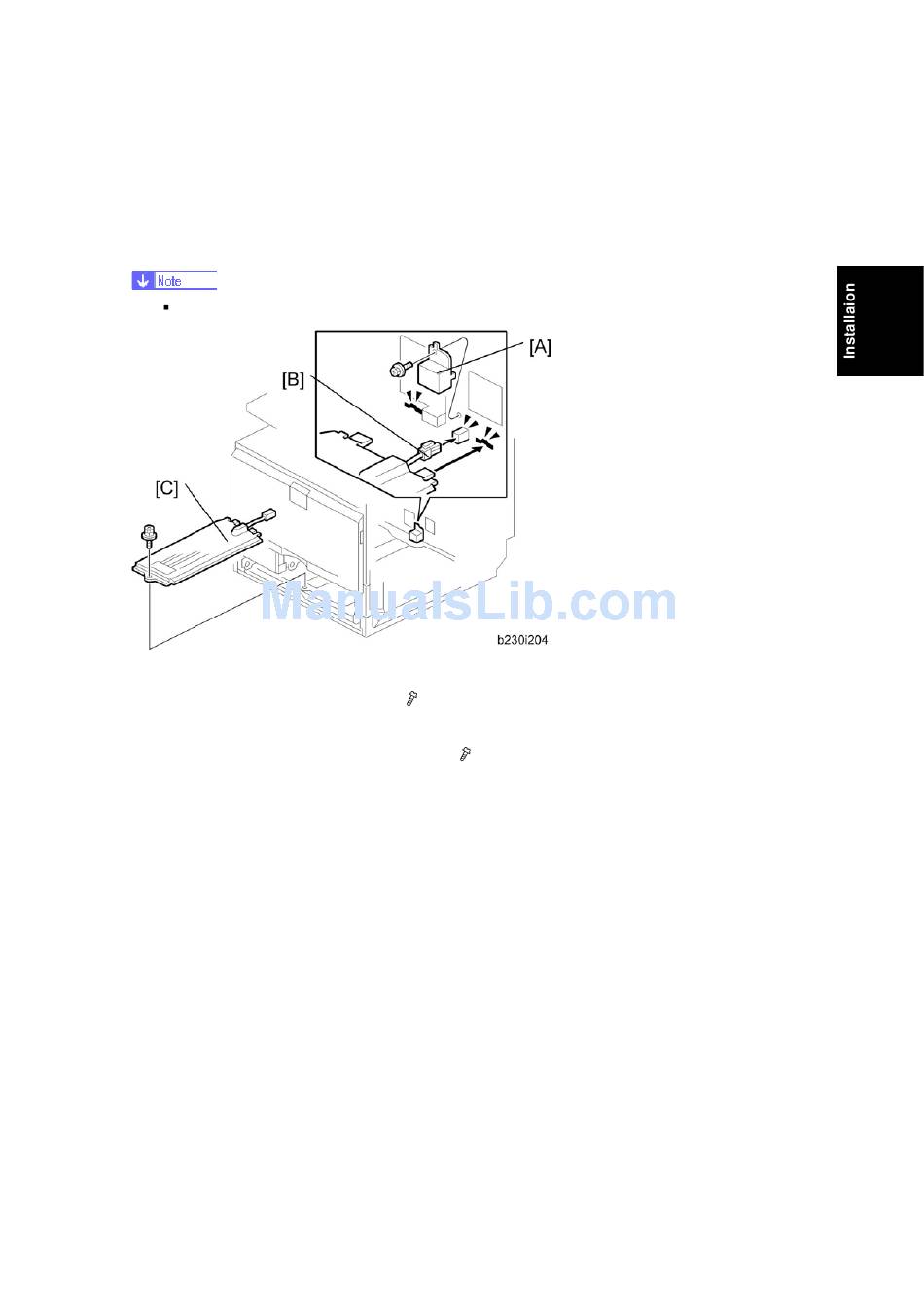

2. Remove the connector cover [A] (
3. Connect the connector [B] of the heater to the connector of the main machine.
4. Install the heater [C] inside the machine (
5. Reassemble the machine.
SM
x 1).
x 1)
2-77
Tray Heater (Mainframe)
D037/D038/D040/D041
