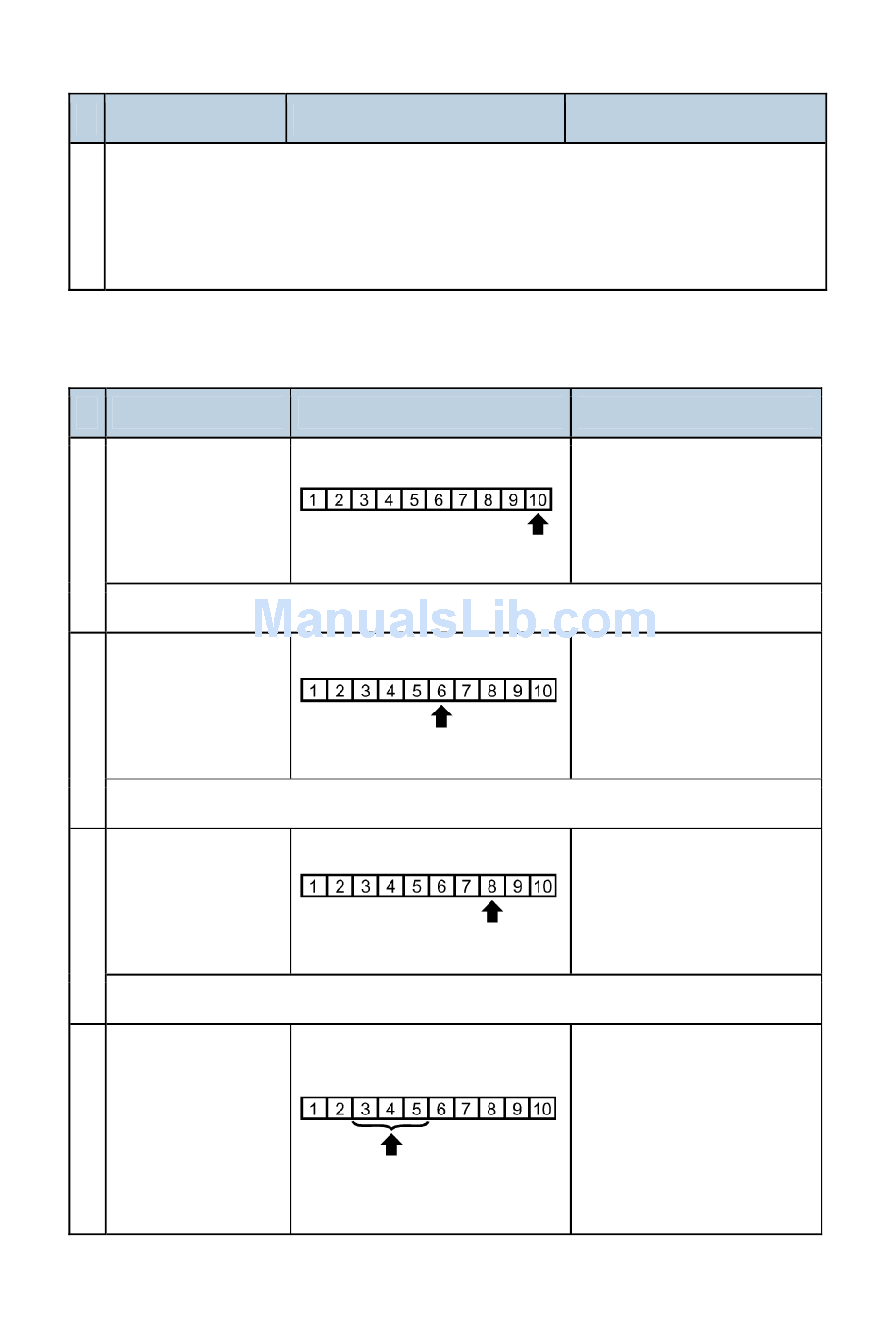

Image Adjustment
Item to Adjust
For adjusting K Highlight: SP4-910-001
For adjusting C Highlight: SP4-911-001
For adjusting M Highlight: SP4-912-001
For adjusting Y Highlight: SP4-913-001
- Text (Letter) Mode, Single Color -
Item to Adjust
ID max: (K)
1
For adjusting K ID max: SP4-914-004
Middle (Middle ID)
(K)
2
For adjusting K Middle: SP4-914-002
Shadow (High ID)
(K)
3
For adjusting K Shadow: SP4-914-003
Highlight (Low ID)
4
(K)
D037/D038/D040/D041
Level on the C-4 chart (K)
Level on the C-4 chart (K)
4-12
Adjustment Standard
Adjustment Standard
Adjust the offset value so
that the density of level 10
matches that of level 10 on
the C-4 chart.
Adjust the offset value so
that the density of level 6
matches that of level 6 on
the C-4 chart.
Adjust the offset value so
that the density of level 8
matches that of level 8 on
the C-4 chart.
Adjust the offset value so
that dirty background does
not show on the copy and
the density of level 3 is
slightly lighter than that of
level 3 on the C-4 chart.
